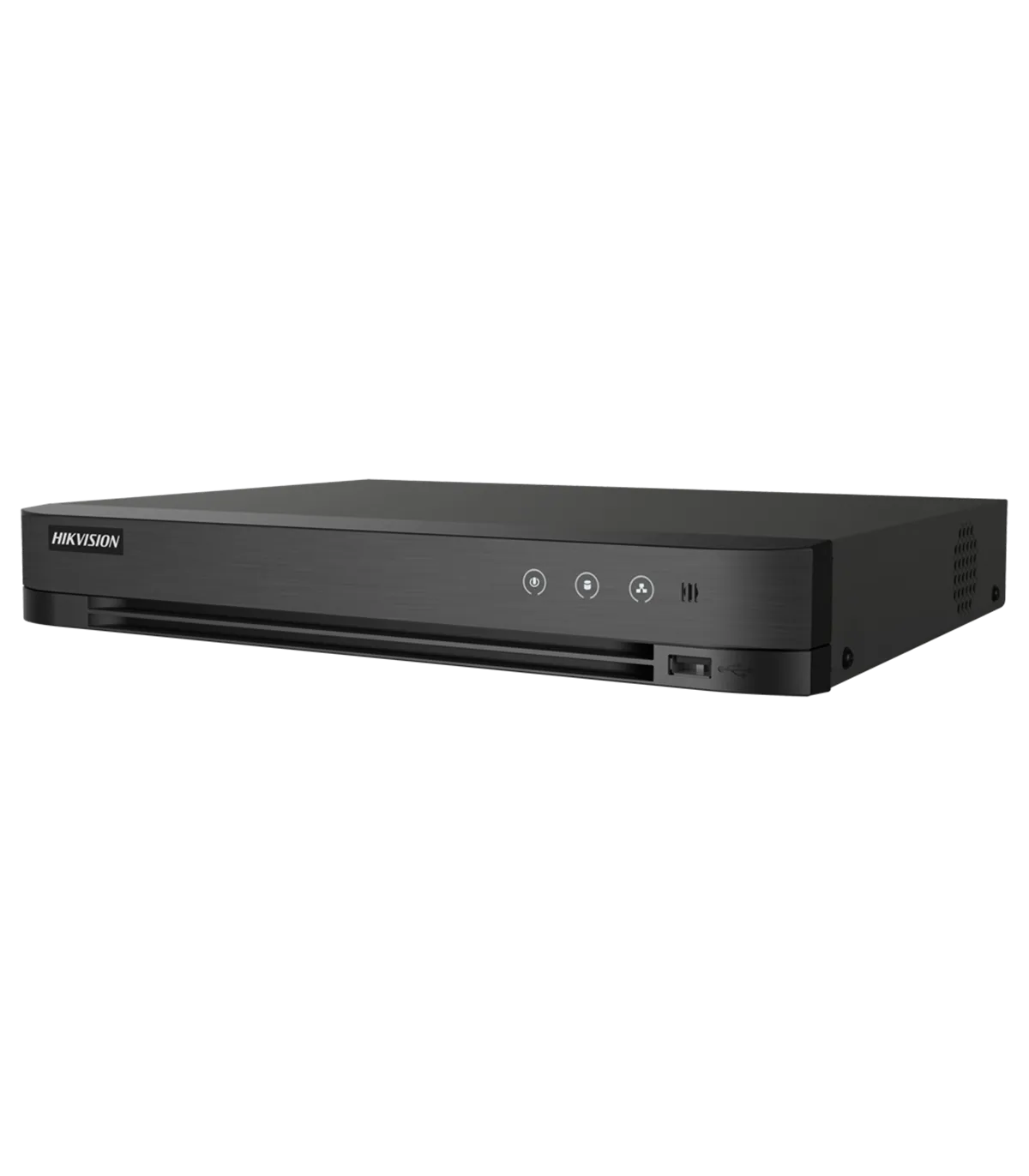

- Hikvision 5-in-1 DVR
- 4 CH HDTVI / HDCVI / AHD / CVBS
- Up to 6 IP channels
- Maximum input resolution 3K
- AcuSense (2 Ch) | 1 hard drive up to 10TB
- Motion detection 2.0 on all channels
Description & Key Features: iDS-7204HQHI-M1/S(C)
The iDS-7204HQHI-M1/S(C) is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. With advanced features such as motion detection and AcuSense technology, this device enhances security by filtering false alarms and accurately identifying humans and vehicles.
- Hikvision
- DVR 5n1
- 4 CH video HDTVI/HDCVI/AHD/CVBS / 6 IP
- H.265 Pro+/H.265/H.264+/H.264
- Maximum input resolution 3K @20fps (5Mpx 16:9)
- Audio over coaxial
- Motion detection 2.0 on all channels
- AcuSense, false alarm filter for vehicles and people on up to 2 channels
- Full HD HDMI output, VGA, and BNC
- PTZ control (RS485/Coaxial)
- Space for 1 HDD
Specifications: iDS-7204HQHI-M1/S(C)
| Brand | HIKVISION |
| Series | AcuSense |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 1CH additional IP: Up to 5 IP channels (6Mpx), replacing all BNC channels Enhanced IP mode: 2CH additional IP: Up to 6 IP channels (6Mpx), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 4Mpx Lite HDTVI / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 4Mpx (25~30 fps), 3Mpx (18 fps), 1080p (25~30 fps), 720p (25~60 fps) *3Mpx resolution only available for channel 1. HDCVI: 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite not enabled 4 Mpx Lite (15 FPS); 1080p lite/720p/WD1/4CIF/VGA/CIF (25 FPS) (P) 3Mpx stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF (15 FPS) 1080p stream: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P) 720p stream: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P) 1080P Lite enabled 4 Mpx lite/3 Mpx (15 FPS); 1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, can classify humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Features | AcuSense Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion Available on up to 2 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / Remote control / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Remote Connections | 32 |
| Remote Access | Web Browser, Smartphone App, and Safire Control Center CMS Software |
| Power Supply | DC 12 V, 1.5A, ≤ 18 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 45 (H) mm x 315 (W) mm x 242 (D) mm / ≤ 1.16 Kg |
Package Contents
- Hikvision 5-in-1 Recorder
- Mouse
- AC/DC 12 V Adapter
- CD with manual and software
Use Case
The iDS-7204HQHI-M1/S(C) is ideal for small to medium-sized businesses looking to enhance their security infrastructure. For instance, a retail store can deploy this 5-in-1 DVR to monitor entrances and exits, ensuring a secure environment for both customers and employees. With its motion detection 2.0 feature, the system can accurately differentiate between human and vehicle movements, significantly reducing false alarms. Additionally, the device's remote access capabilities allow store managers to monitor live feeds from anywhere, providing peace of mind. The full HD HDMI output ensures high-quality video playback, making it easier to review footage when necessary. Furthermore, the ability to connect up to 6 IP cameras expands the surveillance coverage, making it a flexible solution for evolving security needs.
Data sheet
- Brand
- HIKVISION
- Technology
- HD-Coaxial
- Audio
- 1 Entrada / 1 Salida
- Channels
- 4
Specific References
- EAN13
- 6941264090786
