€89.60
Hikvision DVR 5-in-1
4 CH HDTVI / HDCVI / AHD / CVBS
Up to 6 IP channels
Maximum input resolution 4MP Lite
Supports 1 hard drive up to 6 TB
Audio

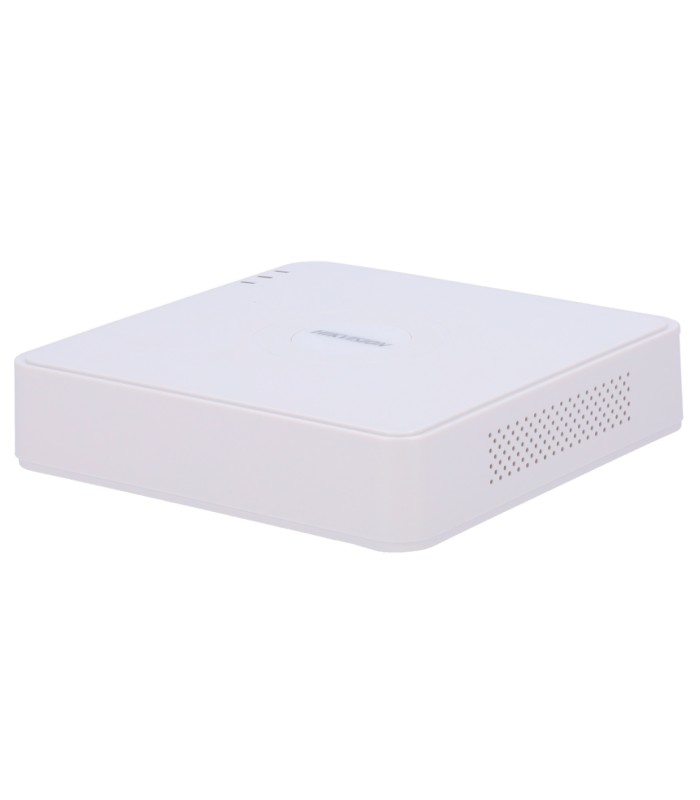

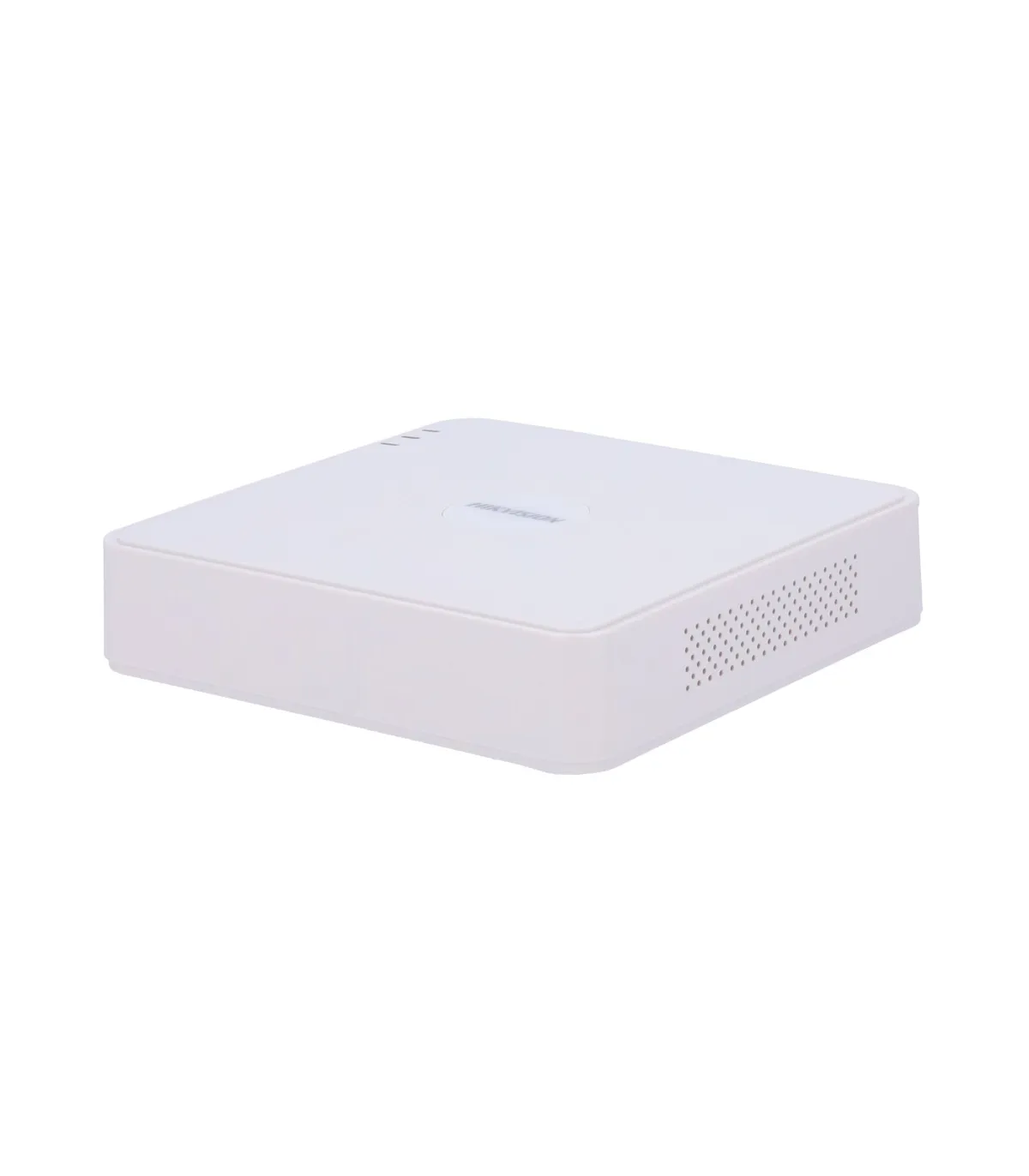

Hikvision DVR 5n1 range Core iDS-7104HQHI-M1/S(C)
- Hikvision DVR 5-in-1 CORE series
- 4 CH HDTVI / HDCVI / AHD / CVBS
- Up to 6 IP channels
- Maximum input resolution 4 Mpx
- AcuSense: false alarm filter
- Supports 1 hard drive up to 10TB | Audio
€68.98
Reference:
iDS-7104HQHI-M1/S(C)
Brand:
Add to wishlist
Hikvision DVR 5n1 range Core iDS-7104HQHI-M1/S(C)
- Hikvision
- CORE range
- DVR 5n1
- 4 CH video HDTVI/HDCVI/AHD/CVBS / 6 IP
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Maximum input resolution 4 MPx @15fps
- Audio over coaxial
- Motion detection 2.0 on all channels
- Accusense, false alarm filter for vehicles and people on up to 2 channels
- Full HD HDMI output and VGA
- Audio input and output
- Space for 1 HDD
- Compact size
- White color
Technical specifications
| Brand | HIKVISION | |||
| Range | CORE | |||
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | |||
| Video inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) | |||
| Hybrid configuration | 1CH additional IP: Up to 5 IP channels (6Mpx), replacing all BNC channels Enhanced IP mode: 2CH additional IP: Up to 6 IP channels (4Mpx), replacing all BNC channels | |||
| Available bandwidth | 72 Mbps | |||
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; | |||
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 | |||
| Audio inputs | 1 Channel RCA | |||
| Audio outputs | 1 Channel RCA | |||
| Two-way audio | Reusing the audio input | |||
| Audio Bit Rate | 64 Kbps | |||
| Audio compression | G.711u | |||
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 | |||
| Recording resolution | 4Mpx HDTVI / 3Mpx / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF | |||
| Input resolution | HDTVI: 4 Mpx, 3Mpx, 1080p (25~30 fps), 720p (25~60 fps) *3Mpx resolution only available for the channel 1. HDCVI: 4Mpx, 1080p (25~30 fps), 720p (25~30 fps) AHD: 4Mpx, 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC class="table-data"> | Main Stream Encoding | 1080P Lite not enabled: For 4 Mpx stream: 4 Mpx lite (15 fps), 1080p lite/720p/WD1/4CIF/VGA/CIF (25 fps) (N) For 3 MPx stream: 3 Mpx/1080p/720p/VGA/WD1/4CIF/CIF (15 fps) For 1080p stream: 1080p/720p (15 fps), VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) For 720p stream: 720p/VGA/WD1/4CIF/CIF (25fps (P), 30fps (N)) Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access | |||
| Alarms | Not available | |||
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. * Motion detection and AcuSense cannot be enabled at at the same time on the same device. | |||
| Intelligent functions | AcuSense Technology based on DeepLearning for classification of humans and vehicles with reduction of false alarms applied to: Line Crossing, Area Intrusion, Entry Region, Exit Region Available in 2 video channels analog. * Motion detection and AcuSense cannot be enabled at the same time on the same device. | |||
| Recording method | Manual, scheduled, motion detection | |||
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network | |||
| Internal storage | 1 SATA 3.5" HDD up to 10 TB (not included) | |||
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) | |||
| Remote Connections | 32 | |||
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central | |||
| Power | DC 12 V, 1.5 A, ≤ 8 W (without HDD) | |||
| Operating Temperature | -10° ~ +55° C | |||
| Dimensions / Weight | 45 (H) mm x 200 (W) mm x 200 (Fo) mm / ≤ 1 Kg (without HDD) | |||
| Color | White |
Contents
- 5 in 1 recorder Hikvision
- Mouse
- AC/DC 12 V adapter
- CD with manual and software
iDS-7104HQHI-M1/S(C)
Data sheet
- Brand
- Hikvision
- Max. Resolution
- 6 MP
- Technology
- HD-Coaxial
- WDR
- No
- IR Distance
- 4 m
- White Light LEDs
- No
- Audio
- Micrófono
- Series
- AcuSense
- Functions
- AcuSense | Audio | Detección de personas
- POE
- No
- Channels
- 4
- Connectivity
- Ethernet
