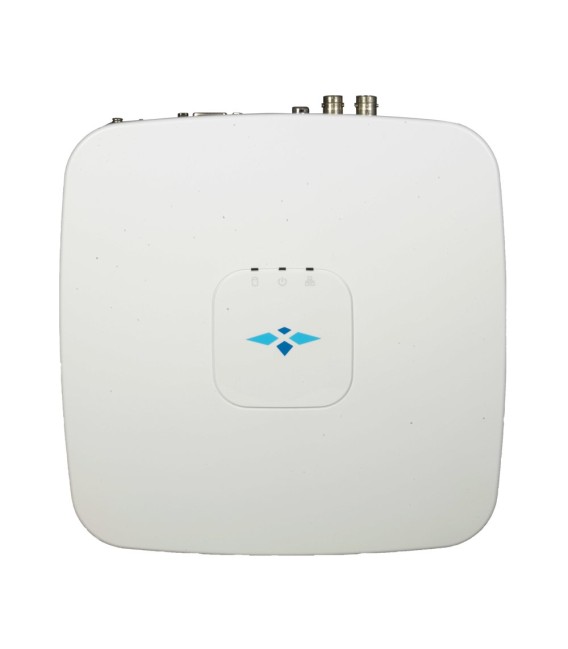

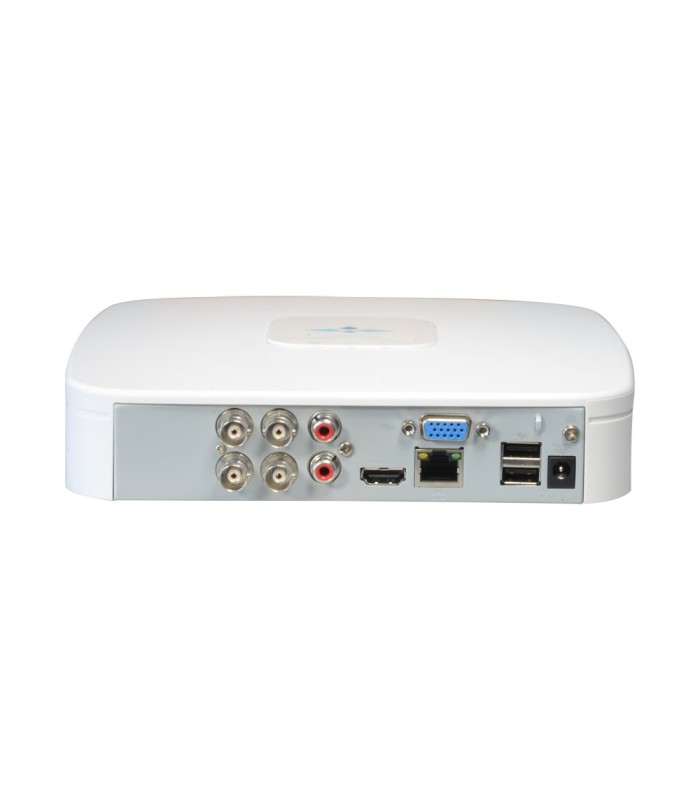

X-Security XS-XVR3104M-AI 5n1 Video Recorder
Brand: X-SECURITY
- 5-in-1 X-Security Video Recorder
- 4 CH HDTVI / HDCVI / AHD / CVBS / 4+1 IP
- 1080N/720P (25FPS) | H.265+
- Alarms and Audio All-over-Coax
- Full HD HDMI and VGA Output
5-in-1 Video Recorder X-Security XS-XVR3104M-AI
- X-Security
- 5-in-1 DVR
- 4 CH video HDTVI/HDCVI/AHD/CVBS / 4+1 IP / 1 CH audio
- H.265+/H.265/H.264+/H.264
- Resolution per channel: 1080N/720P (25FPS)
- WizSense
- PTZ control via Coaxial
- No alarms available
- All-over-Coax alarms and audio
- Full HD HDMI and VGA output
- Mouse included
- Space for 1 HDD
Technical Specifications
| Brand | X-Security |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Up to 5 IP Channels (2Mpx), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI, 1 VGA |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Using audio input/output |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 / G.711A |
| Display Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording Resolution | 1080N / 720p / 960H / D1 / CIF |
| Main Stream Encoding | 1080N / 720p / 960H / D1 / CIF (1~25 FPS) |
| Extra Stream Encoding | CIF (1~15 FPS) |
| Bandwidth | 100 Mbps |
| Simultaneous Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Intelligent Functions | Alarm/audio/update via Coaxial (All-over-Coax) |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile App, or PSS software |
| Power | DC 12 V / 2 A |
| Dimensions / Weight | 45 (H) x 211 (W) x 205 (D) mm / 1.1 Kg |
| Advanced Features | WizSense: false alarm filter for intelligent motion detection and intelligent encoding |
Contents
- 5-in-1 X-Security Recorder
- Mouse
- AC/DC Adapter 12 V / 2.0 A
