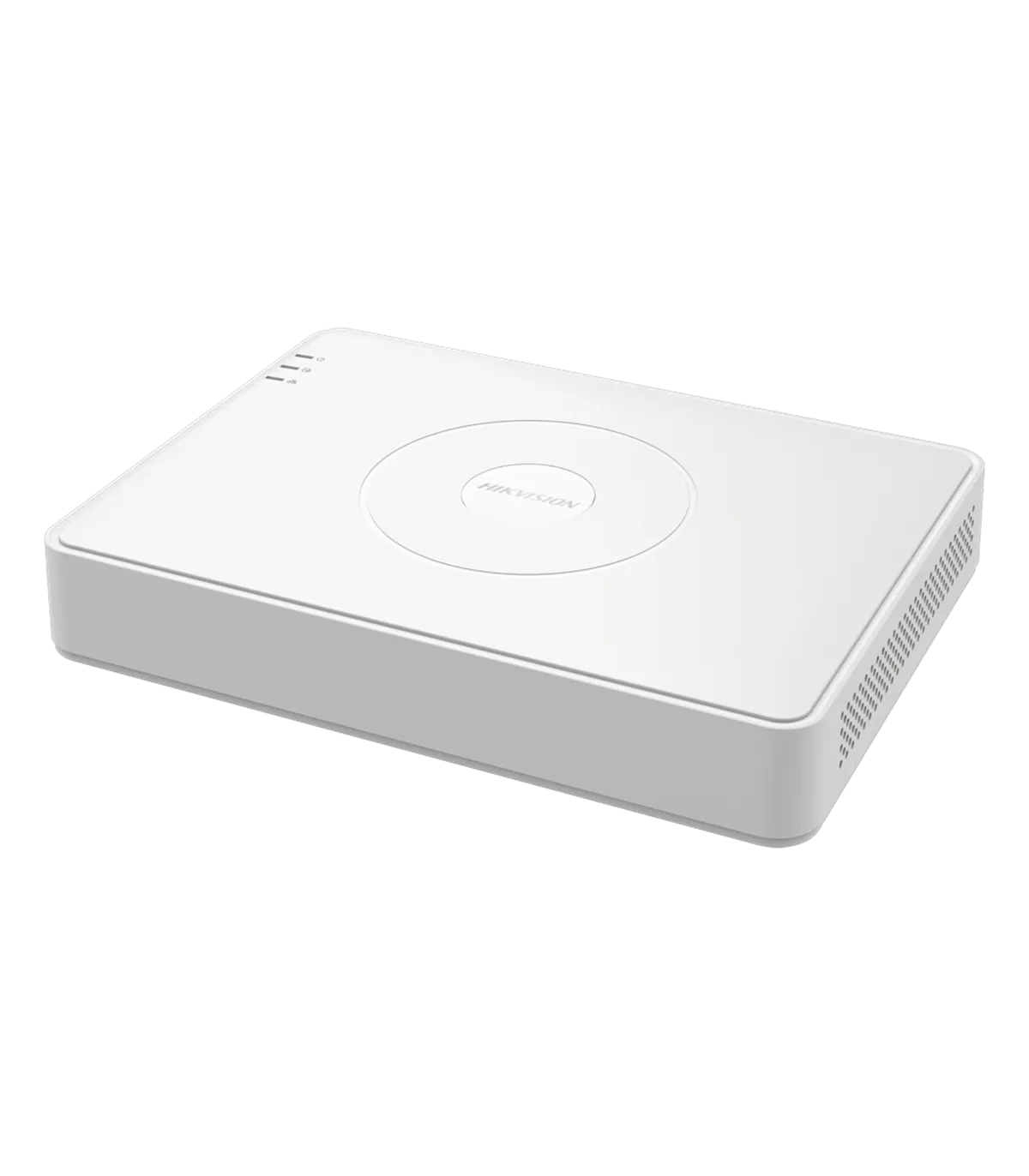

The DS-7116HGHI-M1/T is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 16 channels of video input, including HDTVI, HDCVI, AHD, and CVBS, making it ideal for various security applications. With the capability to add 2 additional IP channels, it can accommodate a total of 18 channels, ensuring flexibility in deployment. This device is particularly suited for small to medium-sized businesses and residential properties, providing high-definition recording and playback capabilities.
| Brand | HIKVISION |
| Series | VALUE |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 18 IP channels (5 MP), replacing all BNC channels |
| Available Bandwidth | 96 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog Channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP Channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 1080p Lite/ 720p/ 720p Lite/ WD1/ 4CIF/ VGA/ CIF |
| Input Resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (15 fps) For 720p stream: 720p/WD1/4CIF/VGA/CIF (15 fps) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | For 1080p and 720p stream: CIF/QVGA (15 fps) For SD stream: CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 6 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.6 A, ≤ 7 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 285 (W) mm x 210 (D) mm |
| Weight | ≤ 1.8 Kg (without HDD) |
| Color | White |
The DS-7116HGHI-M1/T is an excellent choice for installers looking to set up a reliable surveillance system in retail environments or residential complexes. With its multi-channel support, this DVR can seamlessly integrate various camera types, ensuring comprehensive coverage. The motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. Additionally, the device's remote access capabilities allow users to monitor their premises from anywhere using the Hik-Connect app or web browser. This flexibility is crucial for business owners who need to keep an eye on their properties while away. The compact design of the DVR makes it easy to install in tight spaces, while the ability to support up to 6TB of internal storage ensures ample recording capacity for extended periods. Overall, the DS-7116HGHI-M1/T provides a robust solution for effective surveillance management.
