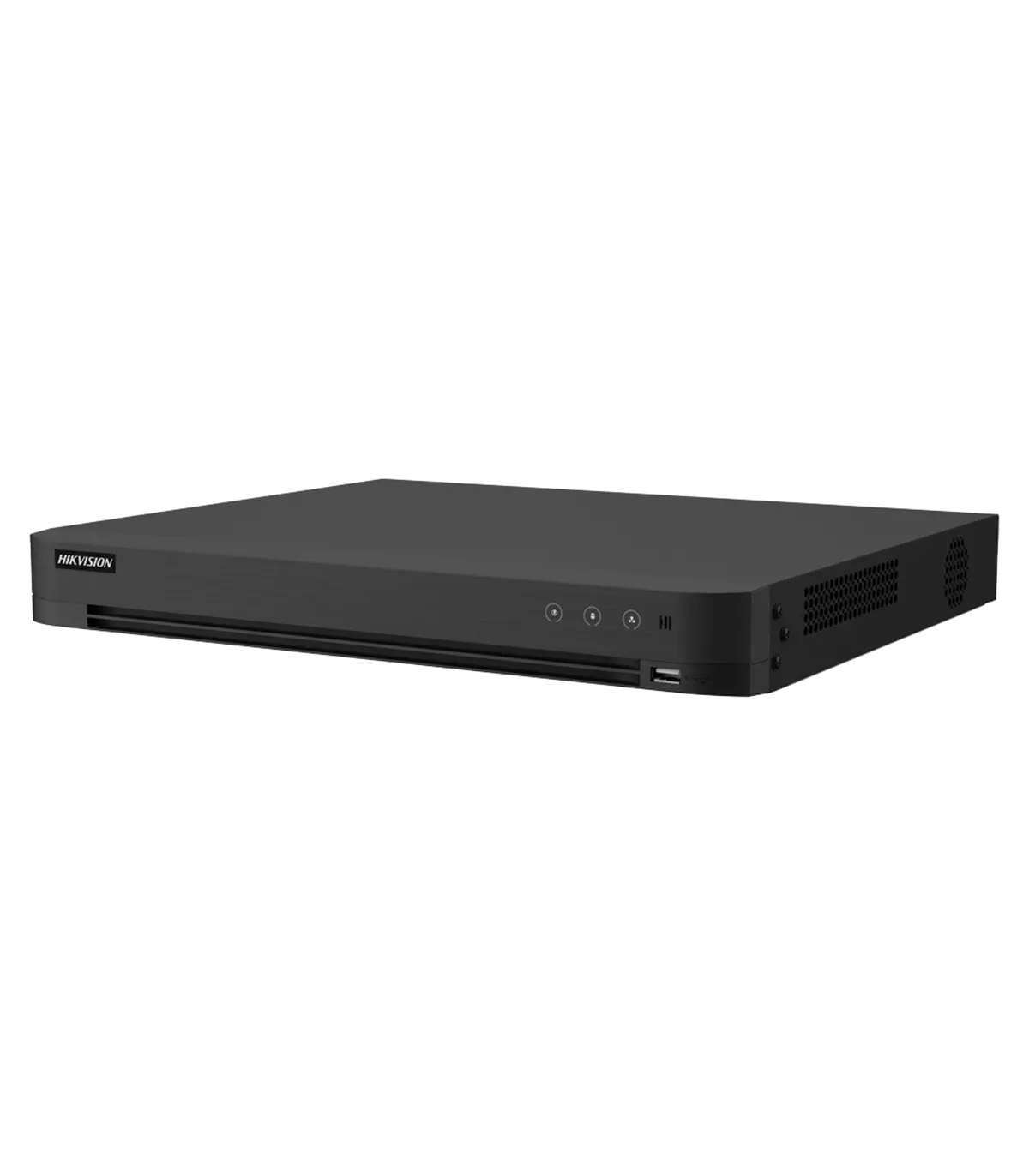

The iDS-7216HUHI-M2/XT/16A+16/4ALM is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports up to 16 channels of video input, including HDTVI, HDCVI, AHD, and CVBS, making it ideal for various security applications. This device is perfect for both residential and commercial environments, providing advanced features such as motion detection and facial recognition to enhance security measures.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 16 additional IP CH: Up to 32 IP channels (8 MP), replacing all BNC channels |
| Main Stream Encoding | 8MP@8 FPS; 3K@12 FPS, 5MP@12 FPS; 4MP @15 FPS; 8MP Lite@15 FPS; 3MP@18 FPS; 1080p /720p/WD1/4CIF/VGA/CIF@25 FPS(P)/30 fps (N) |
| Extra Stream Encoding | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Total Bandwidth | 256 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Video Compression | Analog: H.265+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8MP (12 fps), 3K (20~25 fps), 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8MP (12 fps), 3K (25 fps), 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MP (20 fps), 4MP (25~30 fps),1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Audio Inputs | 16 inputs Up to 16 channels via coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing the audio input |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Alarm | 16 inputs / 4 outputs |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection For the NVR: Available on all channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for detection of humans and vehicles applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 8 channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Facial Recognition | Storage in up to 16 libraries. Face comparison on up to 4 CH. |
| Facial Detection | Facial detection; photo search; Up to 4 channels for image capture. |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 2 x 3.5" SATA HDDs up to 12 TB each (not included) |
| Communication | 1 x USB 2.0 (front panel) / 2 x USB 3.0 (rear panel) / RJ45 (Ethernet) 10/100/1000 Mbps / 1 x RS-485 |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 5 A, ≤ 60 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 385 (W) x 315 (D) x 52 (H) mm / ≤ 2.1 Kg (without HDD) |
The iDS-7216HUHI-M2/XT/16A+16/4ALM is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. In a typical deployment, an installer can set up the device to monitor multiple entry points and high-traffic areas, utilizing its 16-channel video input capability. The 4K video output ensures that every detail is captured, enhancing the overall security posture. With features like motion detection and AcuSense technology, the system can effectively filter out false alarms, allowing security personnel to focus on genuine threats. Additionally, the device's remote access capabilities enable users to monitor their premises from anywhere, providing peace of mind. The integration of facial recognition further enhances security by allowing for the identification of individuals in real-time, making it a robust solution for comprehensive surveillance needs.
