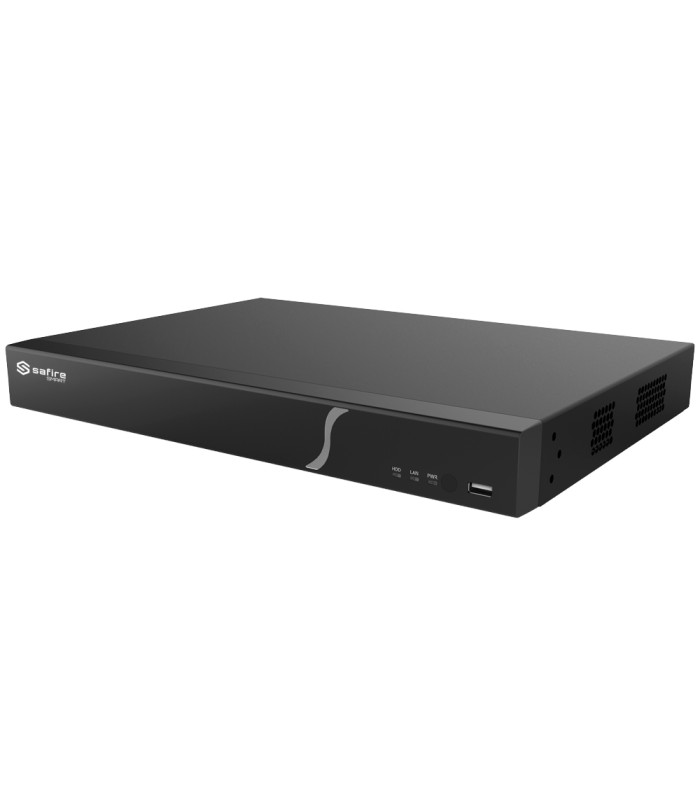

XVR Series 8 Analog Recorder SF-XVR8216A-HU
Brand: SAFIRE SMART
- Safire Smart
- XVR Series 8 analog recorder
- 16CH HDTVI/HDCVI/AHD/CVBS/ 16+8 IP
- 4K HDMI and VGA output / 2 HDD
- Maximum resolution 4K (15fps)
- Audio / Alarms
XVR Series 8 analog recorder SF-XVR8216A-HU
- Safire Smart
- XVR 5n1
- 16 CH video HDTVI/HDCVI/AHD/CVBS / 16+8 IP
- H.264/H.265/H.265+
- 4K resolution
- Alarms
- Audio
- 4K HDMI and VGA output
- Advanced motion detection on all channels
- 1CH with human and vehicle detection
- Space for 2 HDD
- Mouse
Technical specifications
| Brand | Safire Smart |
| Format video | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 16 Channels from BNC + 8 (extra) IP Channels (up to 8 Mpx) |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Audio inputs | 8 RCA channels |
| Audio outputs | 1 RCA channel |
| Audio bidirectional | Reusing audio input/output |
| Video/audio compression | H.264/H.265/H.265+ |
| Resolution display | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 BNC × 1 : CVBS IP channel: 8MP@ 25fps / 30fps (PAL / NTSC) |
| BNC input resolution | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Main Stream Encoding | 4K@ 8fps (PAL/NTSC) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL/NTSC); 4MP/3MP@12fps/15fps (PAL/NTSC) >Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Bit Rate | 32Kbps ~ 5Mbps |
| Bandwidth | 32 Mbps (Incoming) / 96 Mbps (Outgoing) |
| Alarms | 16 inputs / 1 output |
| Smart Features | 16CH Motion Detection Intelligent 1CH with detection of human and vehicle in line crossing or area intrusion |
| Recording method | Manual, scheduled, intelligent events |
| Backup | USB / Network |
| Internal storage | 2 SATA 3.5" HDD up to 10TB (not included) |
| Communication | 1 x USB 2.0 /1 x USB 3.0/ RJ45 (Ethernet) / 1 x e-SATA / RS485 |
| Remote Access | Web Browser, Safire Smart Smartphone App and Safire Smart Software VMS |
| Power | DC 12 V / 4 A (Consumption without HDD < 30 W) |
| Dimensions | 45 (H) x 380 (W) x 380 (Fo) mm |
Contents
- Safire Smart 5in1 recorder
- Mouse
- AC/DC 12 V / 4 A adapter
- Quick installation guide
