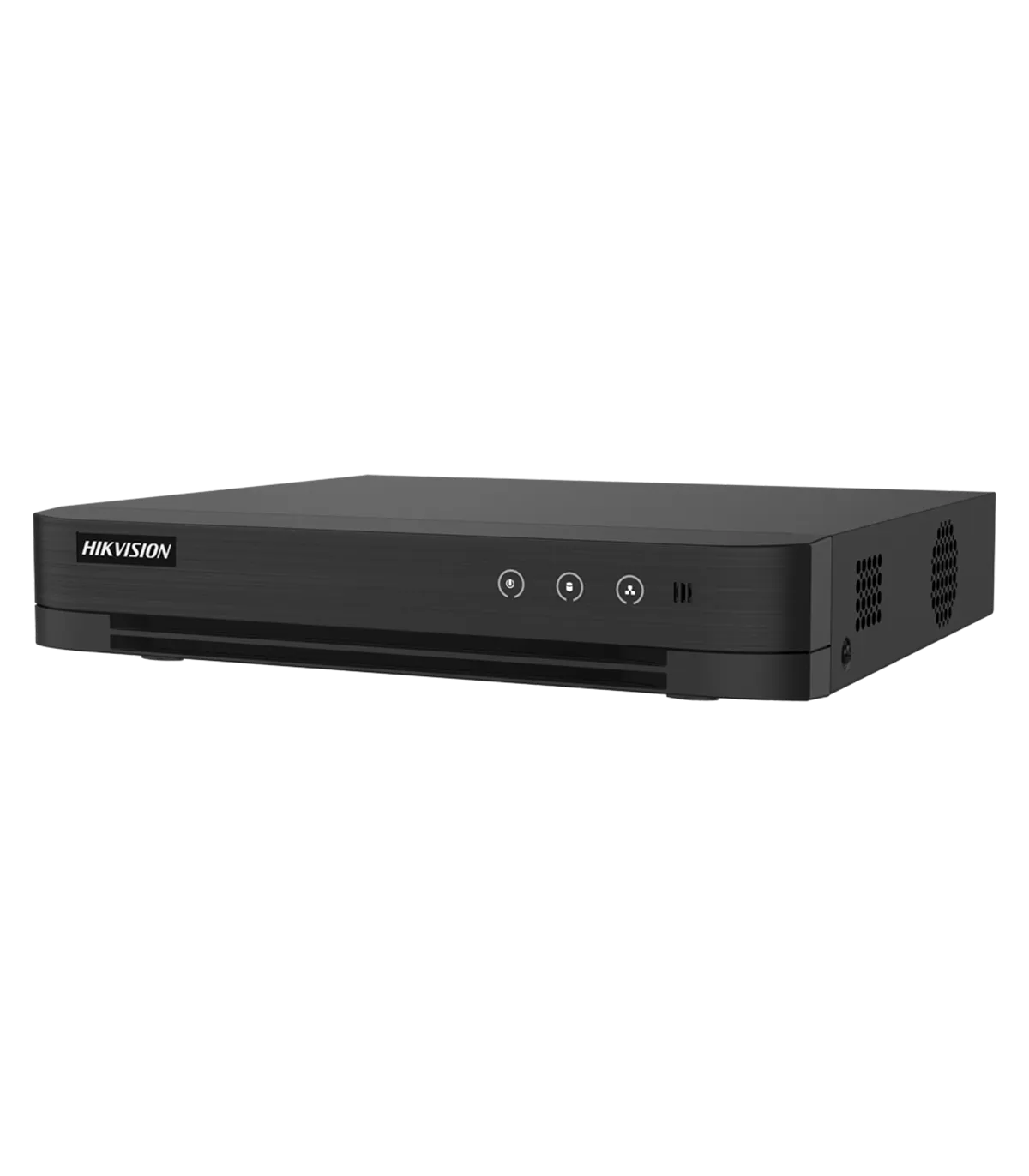

The DS-7216HGHI-M1/T is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 16 channels of video input through various formats including HDTVI, HDCVI, AHD, and CVBS, making it ideal for both new installations and upgrades of existing systems. This device is particularly suitable for small to medium-sized businesses and residential applications, providing high-definition recording capabilities with a maximum input resolution of 1080p Lite.
| Brand | HIKVISION |
| Range | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 18 IP channels (5 MP), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 1080p Lite/ 720p/ VGA/ WD1/ 4CIF/ CIF |
| Input Resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA (15 fps), CIF (25 fps) For 720p stream: 720p/WD1/4CIF/VGA (15 fps), CIF (25 fps) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | For 1080p and 720p stream: CIF/QVGA (15 fps) For SD stream: CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 6 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.5 A, ≤ 18 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 48 (H) mm x 263 (W) mm x 220 (D) mm |
| Weight | ≤ 2.2 Kg (without HDD) |
The DS-7216HGHI-M1/T is an excellent choice for installers looking to implement a robust video surveillance system in retail environments or office spaces. With its multi-format support, this DVR allows for seamless integration of existing cameras, ensuring a smooth transition to high-definition recording. The motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. Additionally, the device's remote access capabilities enable users to monitor their premises from anywhere using the Hik-Connect app or web browser. This flexibility is crucial for business owners who need to ensure safety while on the go. Furthermore, the pentaplex functionality allows for simultaneous live viewing, recording, playback, backup, and remote access, making it a versatile solution for comprehensive security management. Overall, the DS-7216HGHI-M1/T provides a reliable and efficient way to enhance security in various settings.
