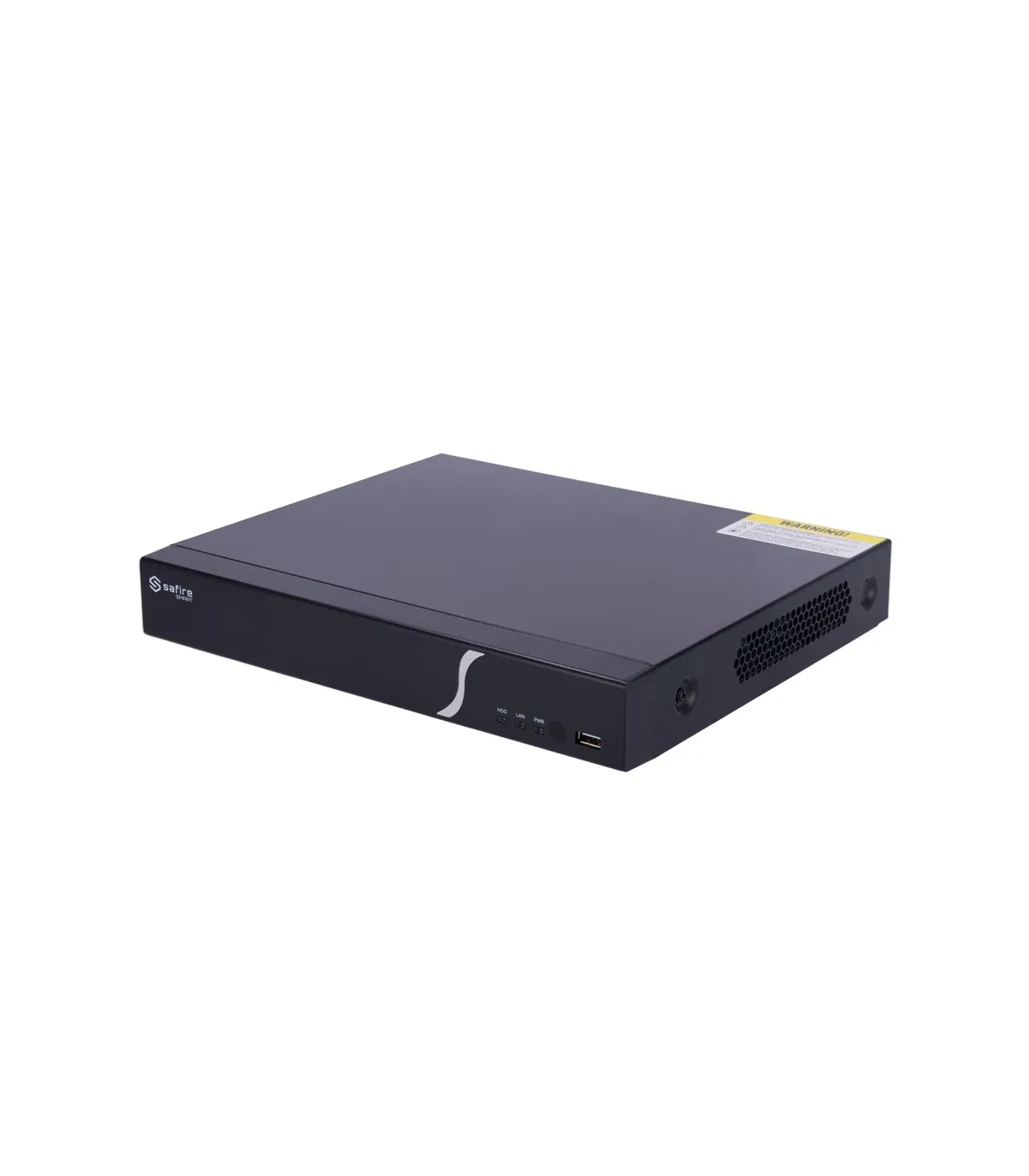

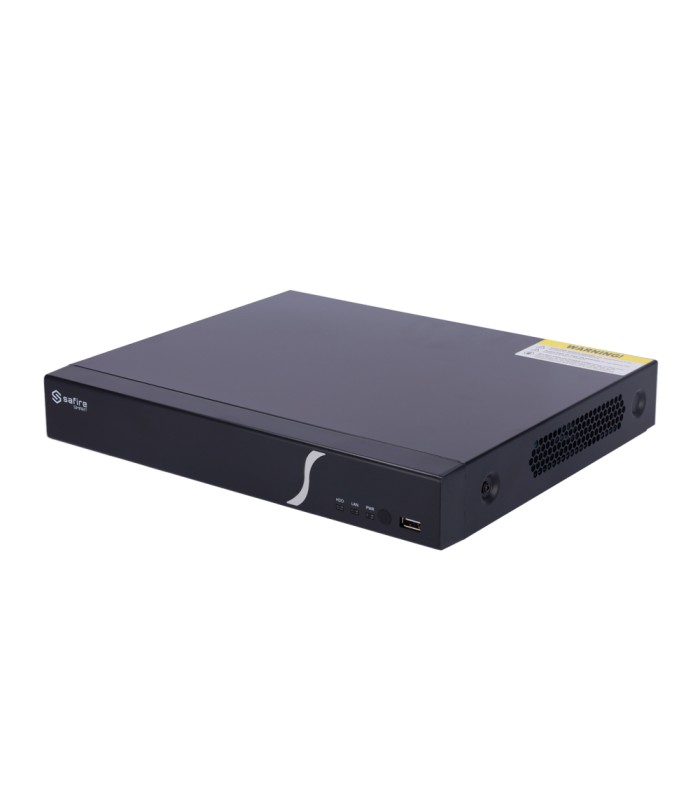

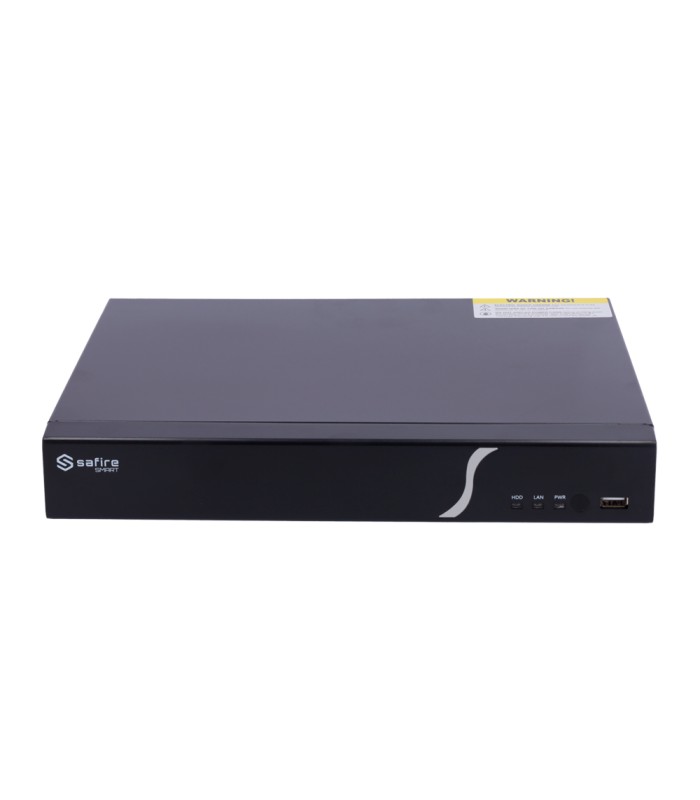

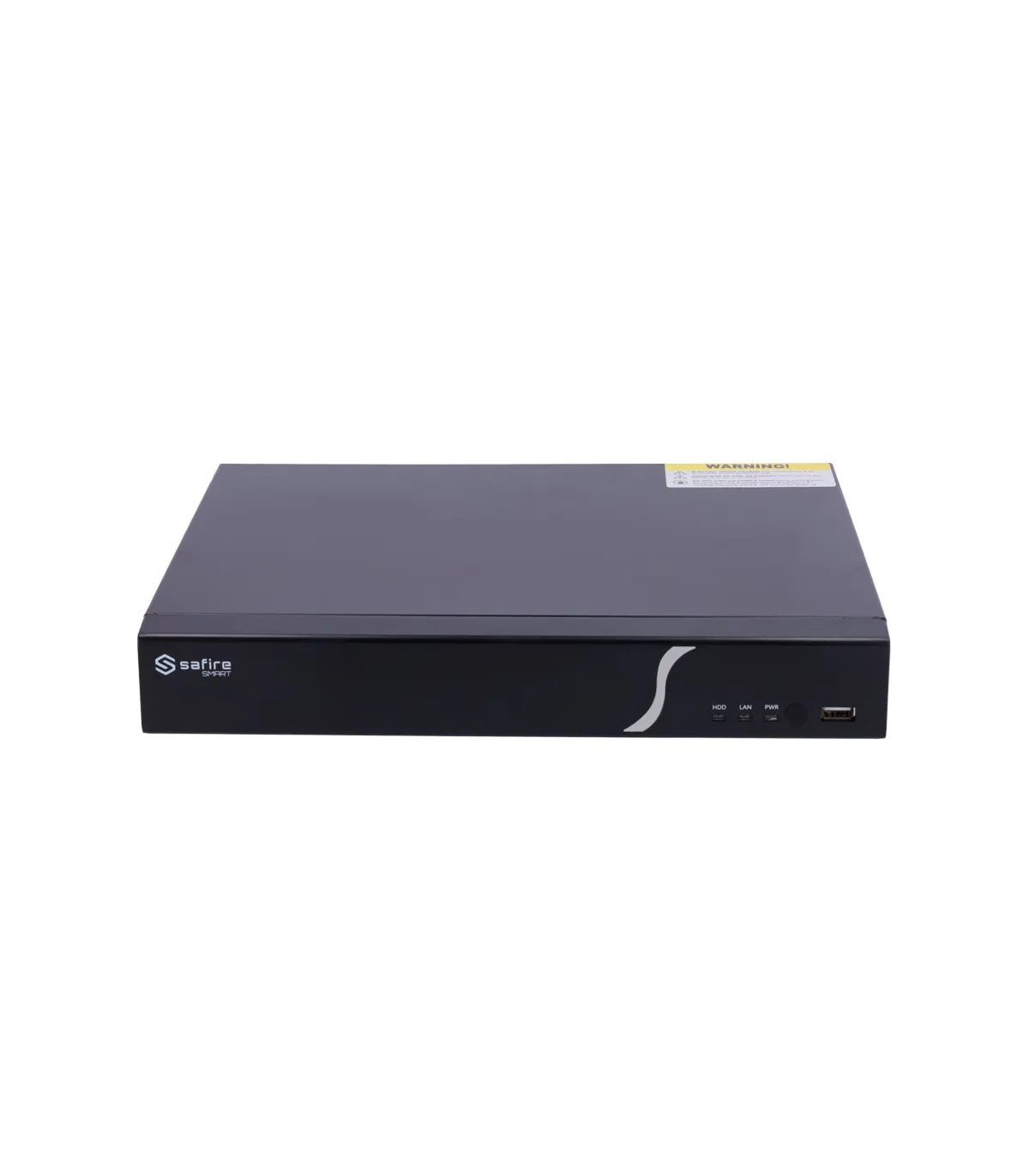

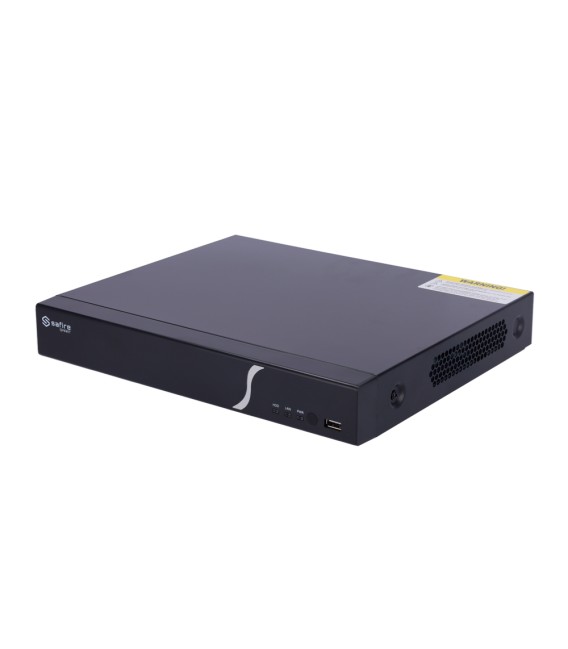

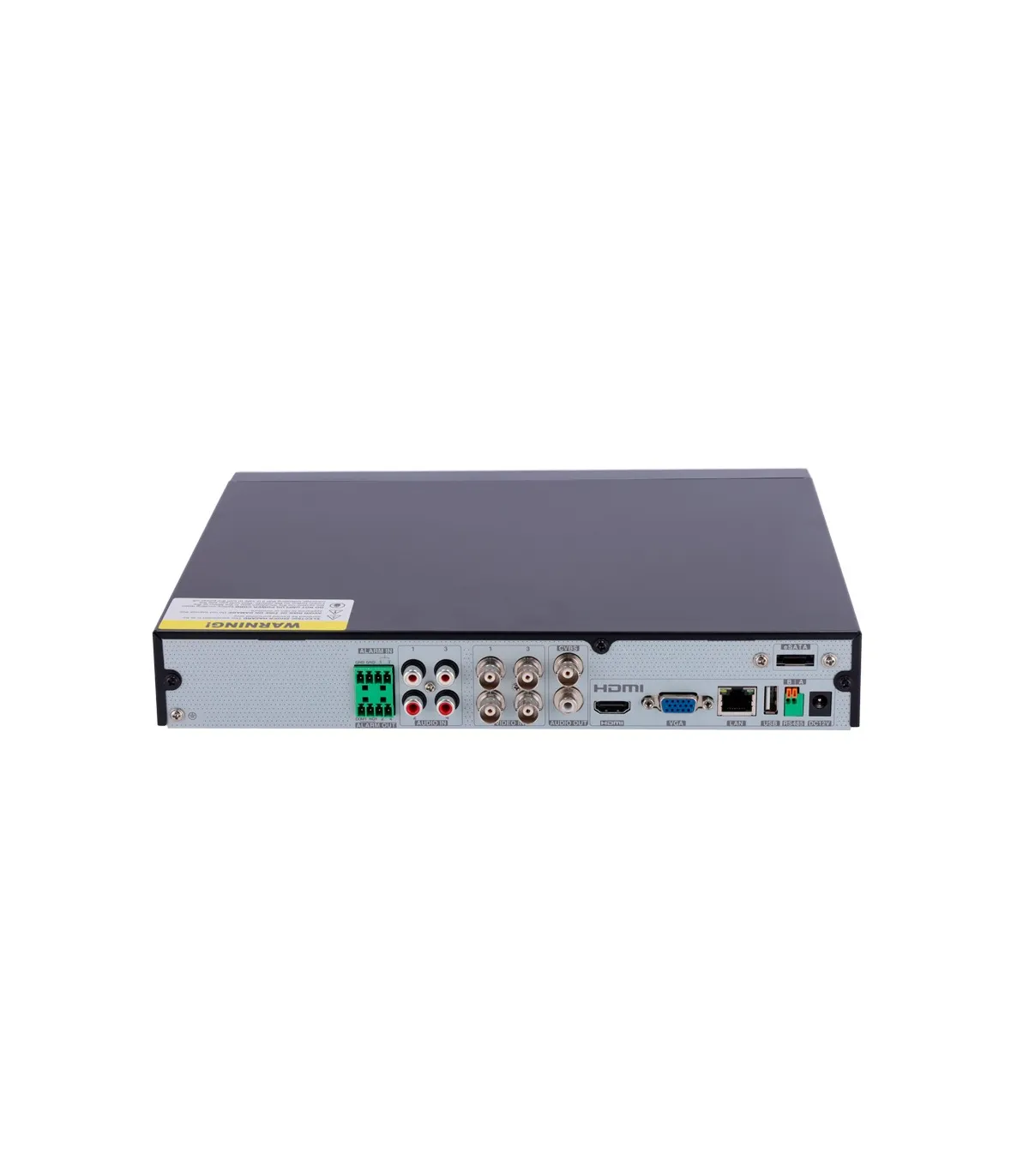

XVR Series 8 Analog Recorder SF-XVR8104A-HU-SMD
Brand: SAFIRE SMART
- Safire Smart
- XVR Series 8 analog recorder
- 4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP
- Maximum resolution 4K (6FPS) / Alarms
- 4K HDMI and VGA output / 1 HDD
- AI, based on human and vehicle
Analog recorder (6FPS)
Technical specifications
| Brand | Safire Smart | |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | |
| Video inputs | 4 BNC channels (HDTVI / HDCVI / AHD / CVBS) | |
| Hybrid configuration | Default: 4 Channels from BNC and 4 (replacement) + 2 (extra) IP channels (up to 8 Mpx) | |

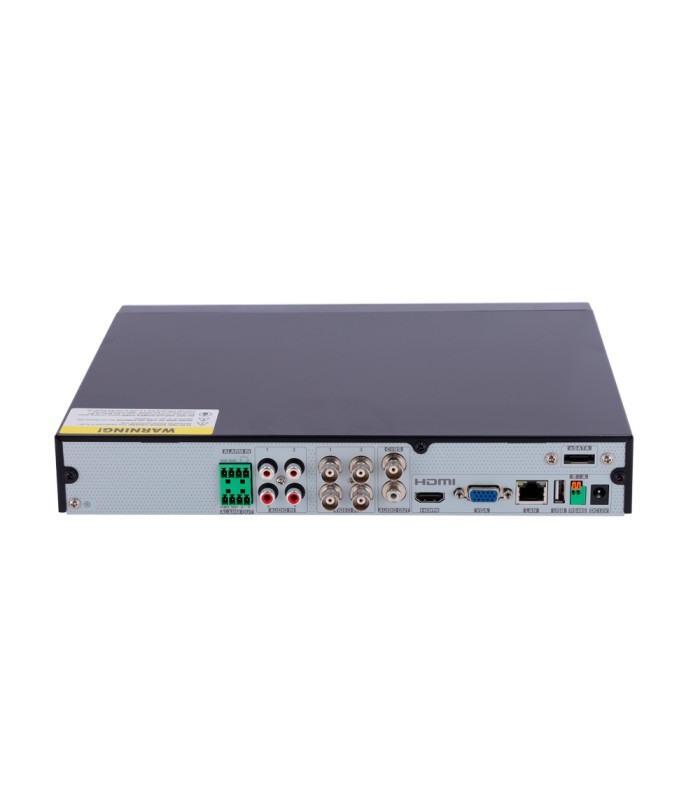

| Video outputs | 1 HDMI 4K, 1 VGA and 1 CVBS | |
| Audio inputs | 4 RCA Channels | |
| Audio outputs | 1 RCA Channel | |
| Two-way audio | Reusing audio input/output | |
| Video/audio compression | H.265 / H.264 | |
| Display resolution | HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS display | 1 / 4 / 6 / 9 |
| BNC input resolution | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps | |
| Main Stream Encoding | 4K@6fps /7fps (PAL/NTSC) (only supported by channel 1) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP/3MP@12fps / 15fps (PAL / NTSC) 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps NTSC) | |
| Simultaneous Multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access | |
| Bit Rate | 32Kbps ~ 4Mbps | |
| Bandwidth | 16 Mbps (Incoming) / 40 Mbps (Outgoing) | |
| Alarms | 4 inputs / 1 relay | |
| Motion detection | SMD based on human and vehicle classification on all channels | |
| Artificial Intelligence | 1CH based on human and vehicle classification on intrusion rules in area or line crossing | |
| Recording method | Manual, scheduled, smart events | |
| Backup | USB / Network | |
| Internal storage | 1 SATA 3.5" HDD up to 10TB (not included) | |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA | |
| Remote Access | Web Browser, Safire Smart Smartphone App and Safire Smart VMS Software | |
| Power | DC 12 V / 2 A (Consumption without HDD < 10 W) | |
| Dimensions / Weight | 42 (H) x 300 (W) x 249 (D) mm / 1.2 Kg |
Contents
- Recorder 5in1 Safire Smart
- Mouse
- AC/DC 12 V / 2 A adapter
- Quick installation guide
