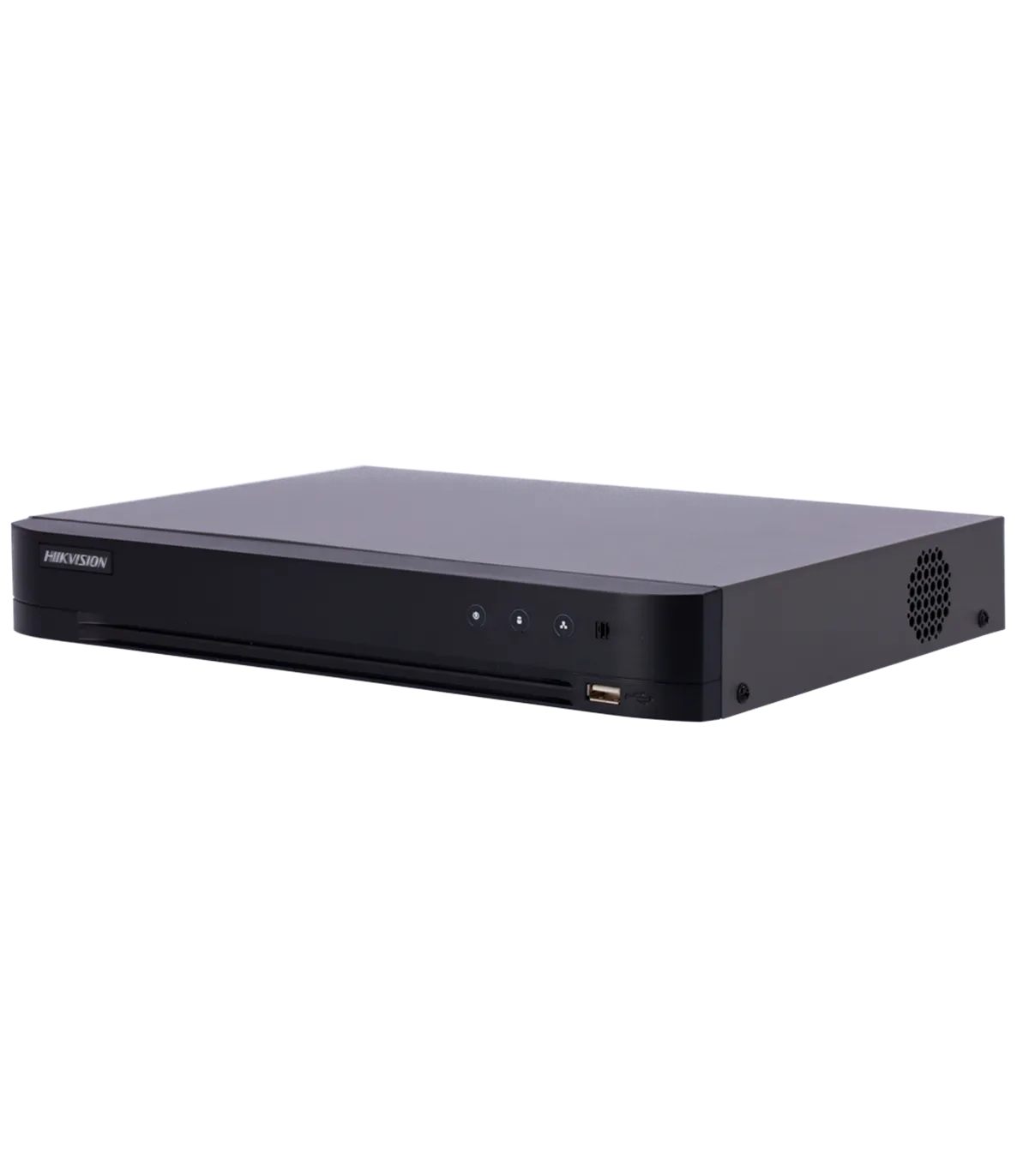

The iDS-7204HUHI-M1/XT is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. With advanced features such as motion detection and face recognition, this device is ideal for both residential and commercial security applications.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 4 additional IP channels: Up to 8 IP channels (8 Mpx), replacing all BNC channels |
| Video Outputs | 1 HDMI 2K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel 4 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing the audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (12 fps), 3K (2960x1665) (25 fps), 3K (3328x1504) (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8Mpx (12 fps), 3K (2880x1620) (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8 Mpx (8 FPS), 3K (12 FPS), 5 Mpx (12 FPS), 4 Mpx (15 FPS), 8 Mpx Lite (15 FPS), 3 Mpx (18 FPS), 1080p/720p/WD1/4CIF/VGA/CIF (25 FPS) *8 Mpx at 8 fps is only available for channel 1. 8 Mpx Lite is only available for channels 2 to 4. |
| Extra Stream Encoding | WD1 / 4CIF / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, can classify humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching images with faces on up to 2 channels. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 96 Mbps |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 1.5A, ≤ 10 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 45 (H) mm x 315 (W) mm x 242 (D) mm |
| Weight | ≤ 1.16 Kg |
The iDS-7204HUHI-M1/XT is an excellent choice for security installers looking to implement a comprehensive surveillance solution in both residential and commercial settings. For instance, in a retail environment, this 5-in-1 DVR can seamlessly integrate with existing analog cameras while also supporting up to 8 IP cameras, providing flexibility in deployment. The motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. Additionally, the face recognition capability allows for effective monitoring of individuals entering the premises, making it ideal for high-security areas. With remote access via web browsers and mobile apps, users can monitor their properties in real-time from anywhere, ensuring peace of mind. The device's pentaplex functionality allows simultaneous live viewing, recording, and playback, making it a powerful tool for security management.
