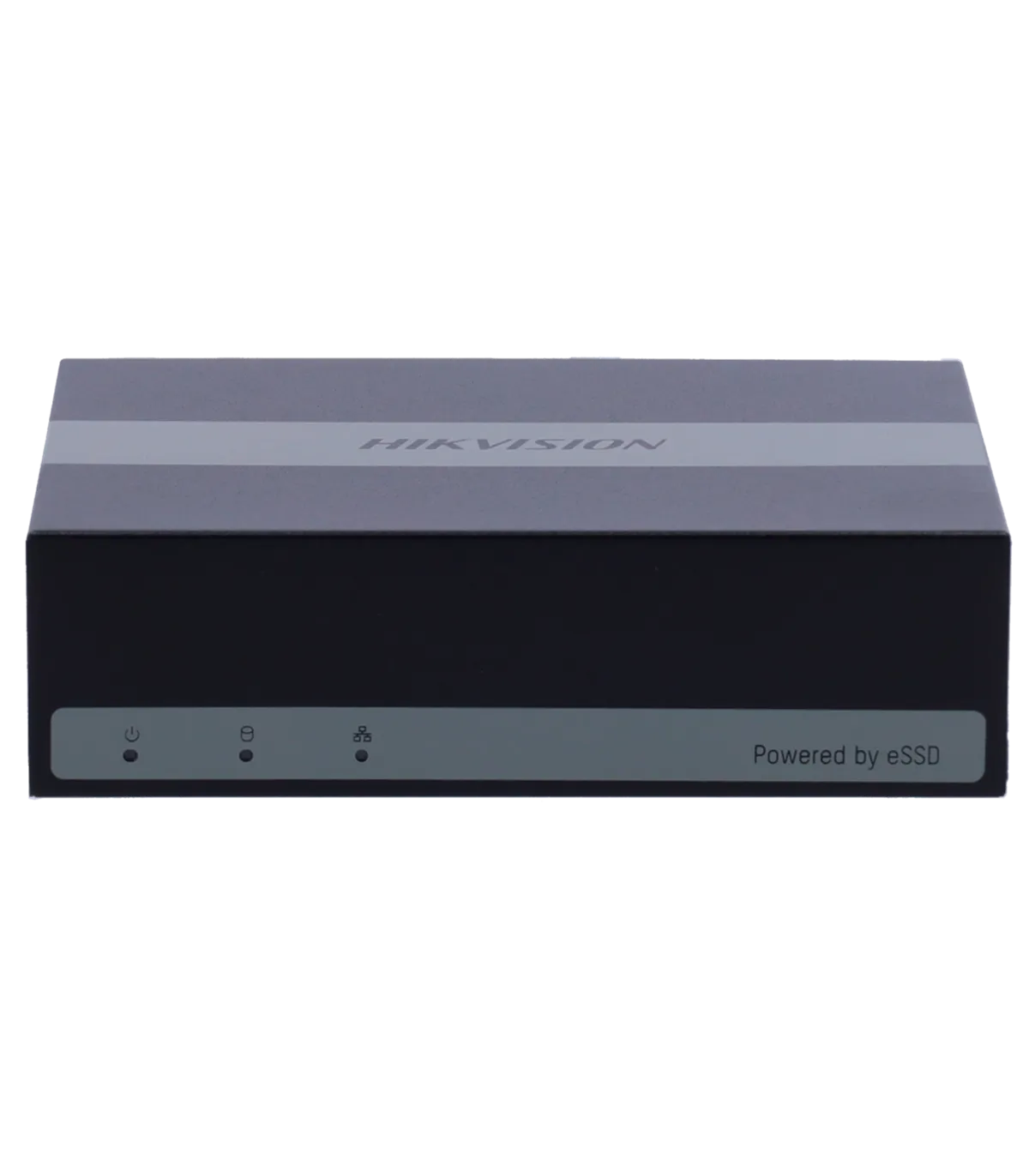

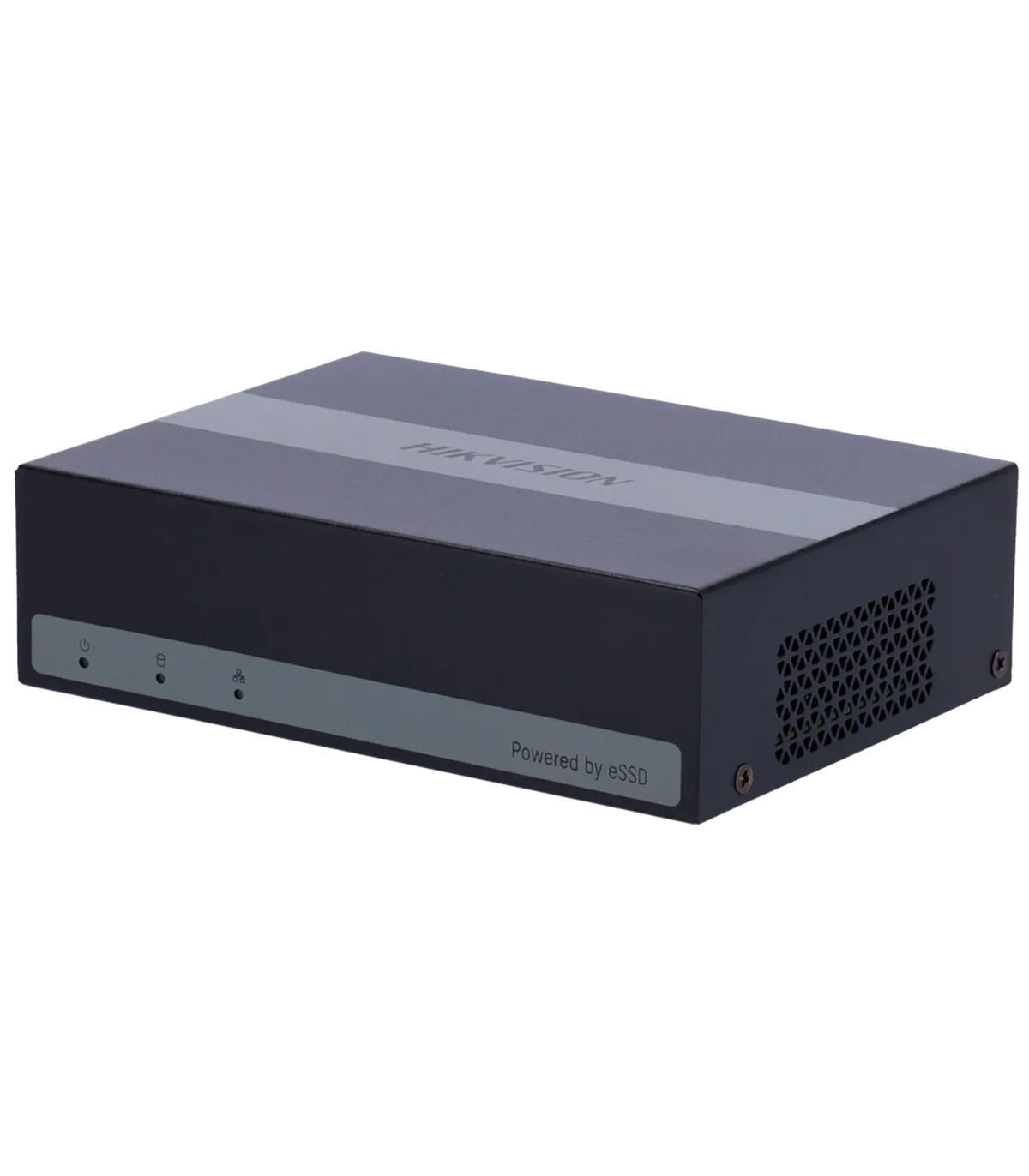

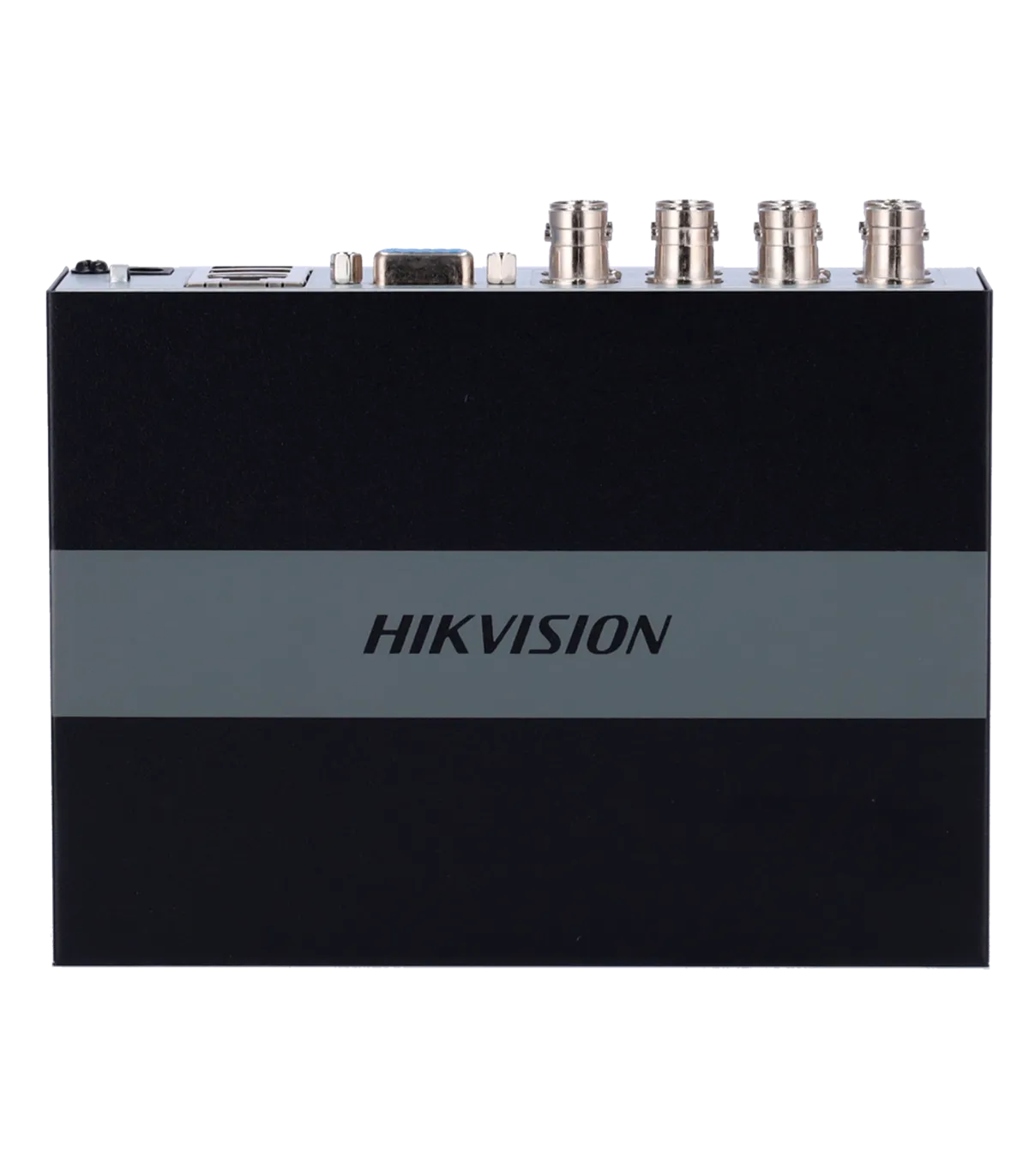

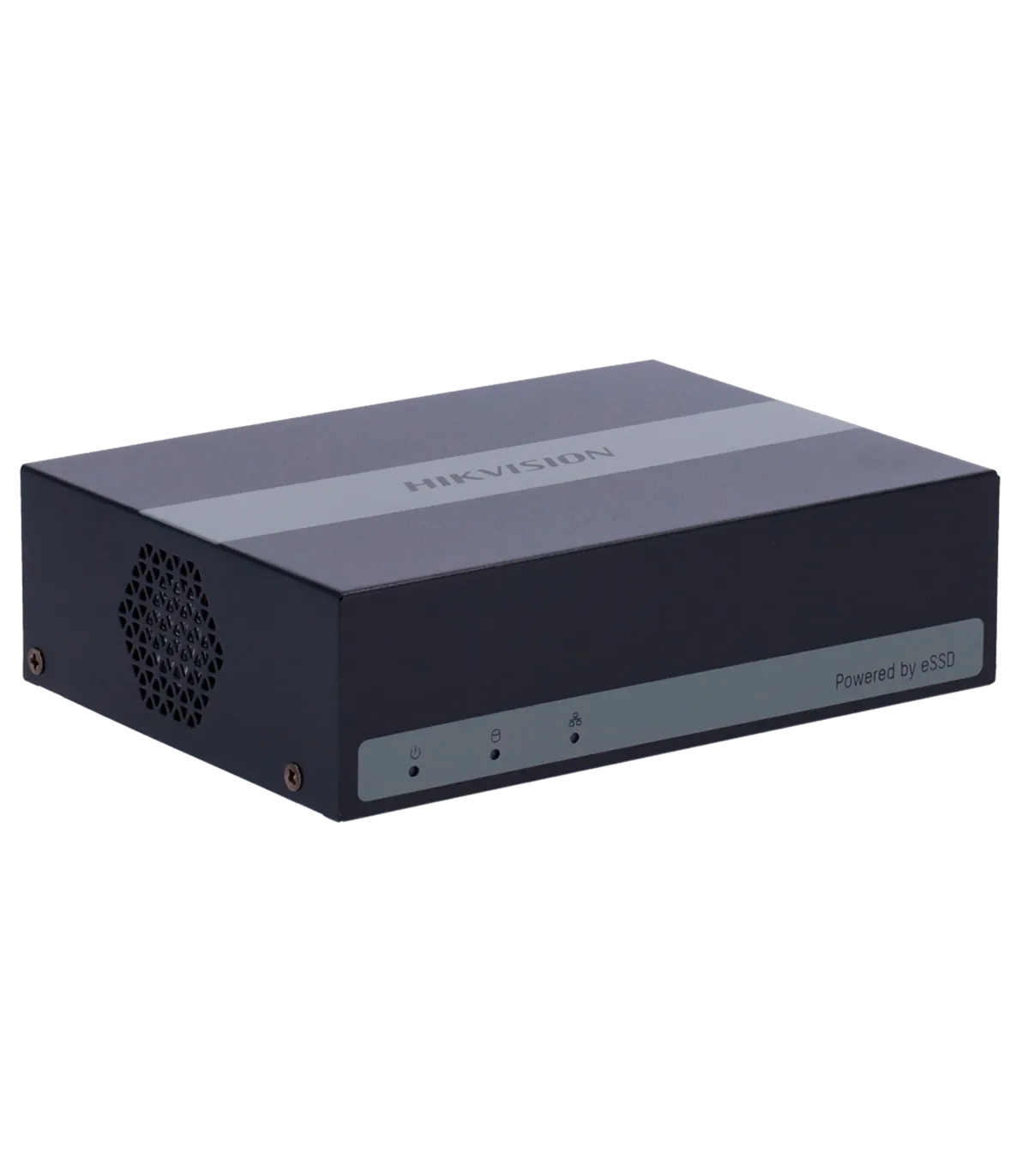

The DS-E04HQHI-B is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. This compact and lightweight device is ideal for both residential and commercial applications, providing reliable performance with low power consumption.
| Brand | HIKVISION |
| Range | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 1CH IP additional up to 6 MPx |
| Available Bandwidth | 72 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial on all BNC input channels |
| Audio Outputs | Audio output via HDMI output |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro / H.265 IP channels: H.265 Pro / H.265 |
| Recording Resolution | 4MPx Lite/ 1080p/ 1080p Lite/ 720p/ WD1/ 4CIF/ CIF |
| Input Resolution | HDTVI: 5MPx (20 fps), 3K (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | When 1080p Lite mode is not enabled: For the 4 MPx stream: 4MPx Lite (15 fps), 1080p/720p/WD1/4CIF (25 fps (P), 30 fps (N)) For the 1080p stream: 1080p/720p (15 fps), WD1/4CIF (25 fps (P), 30 fps (N)) For the 720p stream: 720p/WD1/4CIF(25 fps (P), 30 fps (N)) When 1080p Lite mode is enabled: 4MPx Lite (15 fps), 1080p Lite/720p Lite/WD1/4CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | Video bitrate adaptable according to scene type |
| Simultaneous Multi-Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 1 included eSSD of 512 GB (480 GB available) |

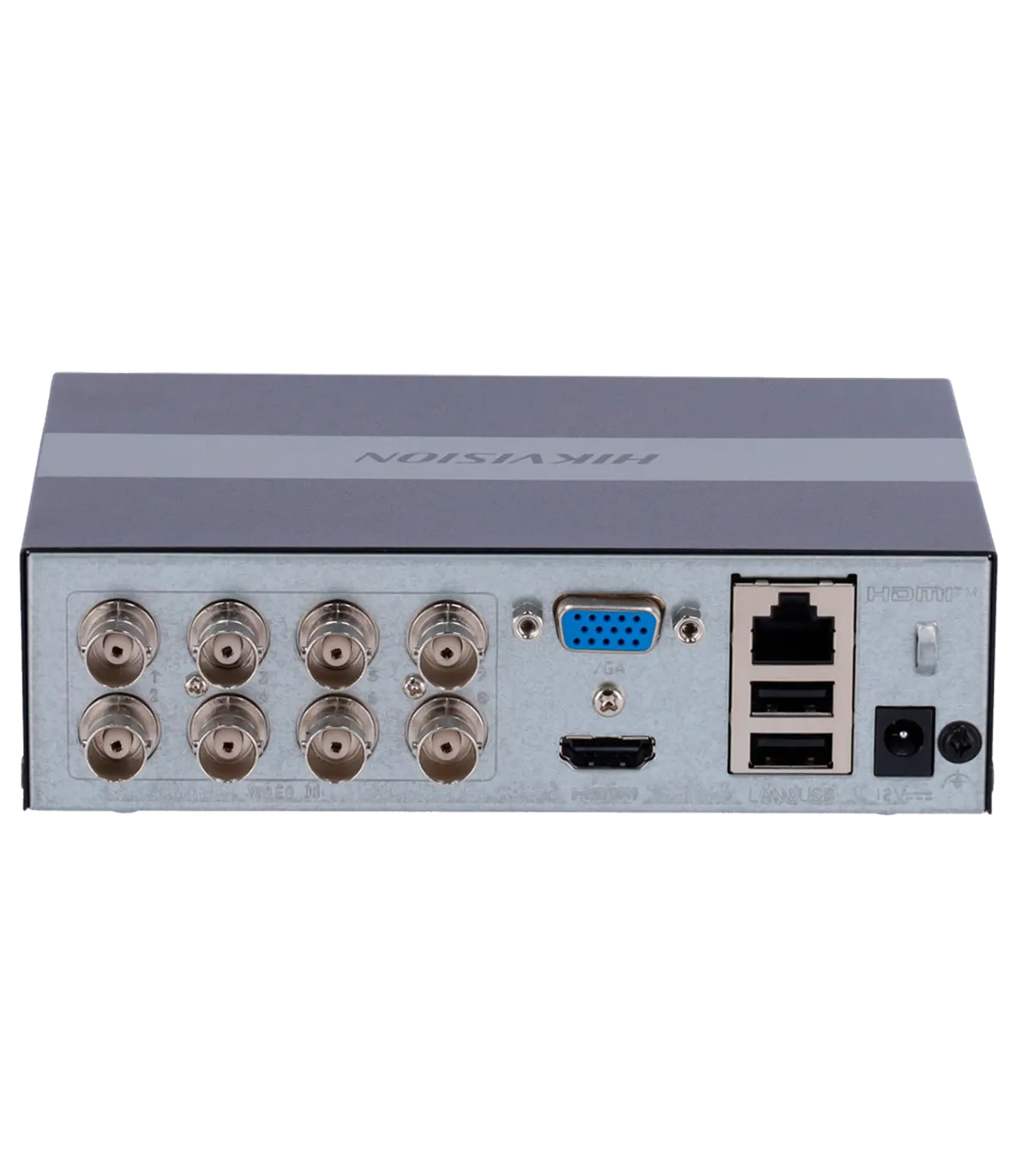

| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1 A, ≤ 5.4 W (with eSSD) |
| Operating Temperature | -10° ~ +45° C |
| Dimensions / Weight | 46 (H) mm x 151 (W) mm x 121 (D) mm / ≤ 0.5 Kg (with eSSD) |
The DS-E04HQHI-B is an excellent choice for installers looking to implement a robust video surveillance system in various settings. For instance, in a retail environment, this compact DVR can be easily integrated with existing cameras, providing seamless remote monitoring capabilities through the Hik-Connect app. With its motion detection 2.0 feature, it can effectively distinguish between human and vehicle movements, enhancing security measures. The device's low power consumption and lightweight design make it ideal for installations where space and energy efficiency are critical. Additionally, the included 512 GB eSSD ensures ample storage for high-resolution recordings, allowing users to maintain a comprehensive surveillance history. Overall, the DS-E04HQHI-B is a reliable solution for both residential and commercial applications, ensuring peace of mind through advanced technology.
