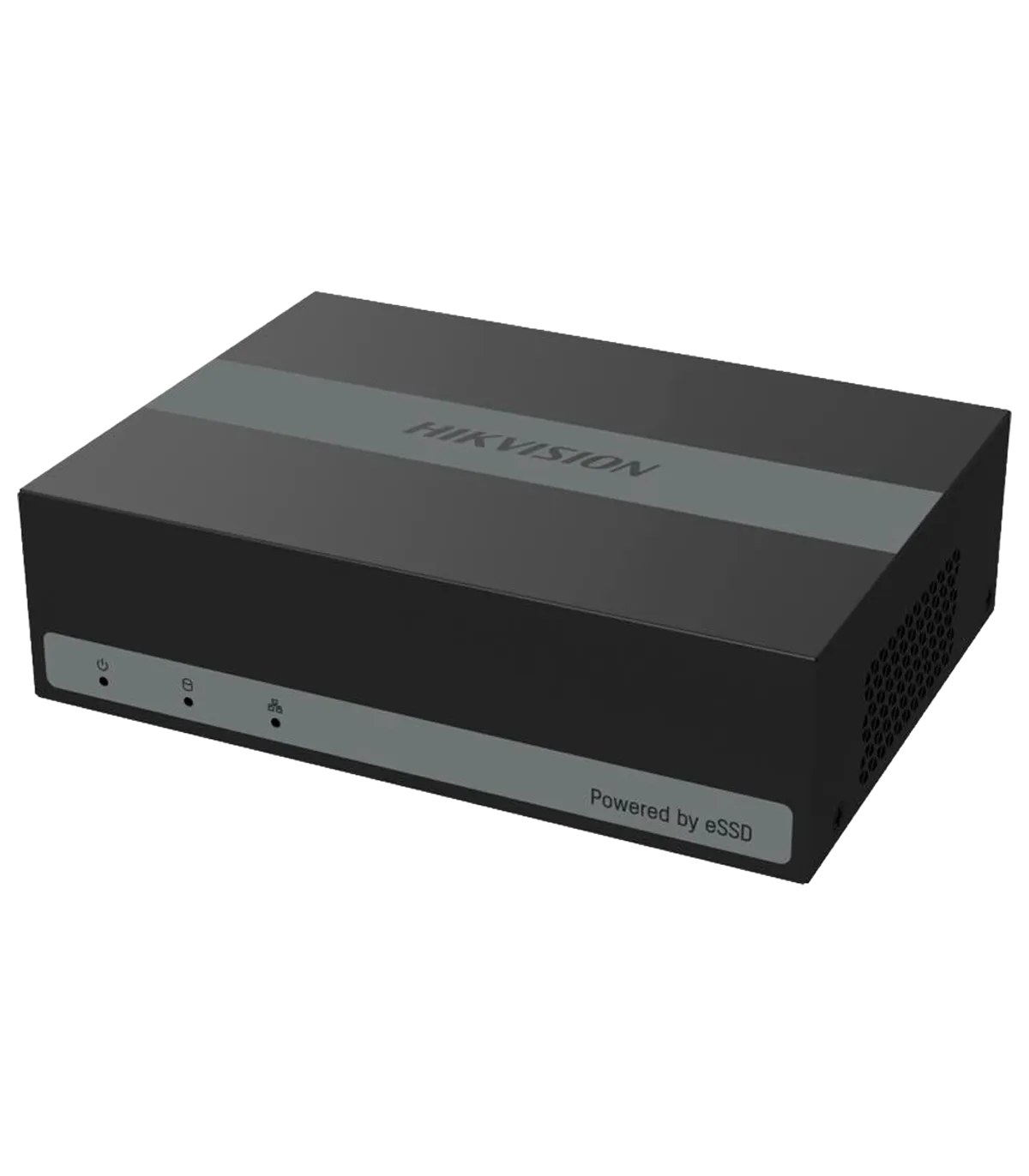

The iDS-E04HQHI-B+4/1 ALM is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. With a maximum input resolution of 5MPx Lite and advanced features like AcuSense technology for human and vehicle classification, this device is ideal for enhancing security in both residential and commercial settings.
| Brand | HIKVISION |
| Range | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 1CH IP additional up to 6 MPx |
| Available Bandwidth | 72 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial on all BNC input channels |
| Audio Outputs | Audio output via HDMI output |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro / H.265 IP channels: H.265+/ H.265 |
| Recording Resolution | When 1080p Lite mode is not enabled: 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP Lite@15 fps; 1080p Lite/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N) |
| Input Resolution | HDTVI: 5MPx (20 fps), 3K (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | When 1080p Lite mode is not enabled: For 3K stream: 3K Lite (12 fps), 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For 5 MPx stream: 5MPx Lite (12 fps), 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For 4 MPx stream: 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For 1080p stream: 1080p/720p (15 fps), VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) For 720p stream: 720p/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) When 1080p Lite mode is enabled: 3K Lite/5MPx Lite (12 fps), 4MPx Lite (15 fps), 1080p Lite/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N) |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | Video bitrate adaptable according to scene type |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 inputs / 1 output |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. |
| Smart Functions | AcuSense, available on up to 2 channels. Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 1 included eSSD of 512 GB (480 GB available) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1 A, ≤ 5.4 W (with eSSD) |
| Operating Temperature | -10° ~ +45° C |
| Dimensions | 46 (H) mm x 151 (W) mm x 121 (D) mm |
| Weight | ≤ 0.5 Kg (with eSSD) |
The iDS-E04HQHI-B+4/1 ALM is ideally suited for a variety of surveillance applications, including retail stores, offices, and residential properties. Installers can leverage its plug-and-play capabilities to quickly set up the system, ensuring minimal downtime. The device's remote monitoring features allow users to access live feeds and recorded footage from anywhere, enhancing security management. With its motion detection 2.0 technology, the system can intelligently differentiate between human and vehicle movements, significantly reducing false alarms. Additionally, the included 512 GB eSSD provides ample storage for high-resolution recordings, making it a reliable choice for long-term surveillance needs. Overall, the iDS-E04HQHI-B+4/1 ALM combines advanced technology with user-friendly features, making it an excellent solution for comprehensive security monitoring.
