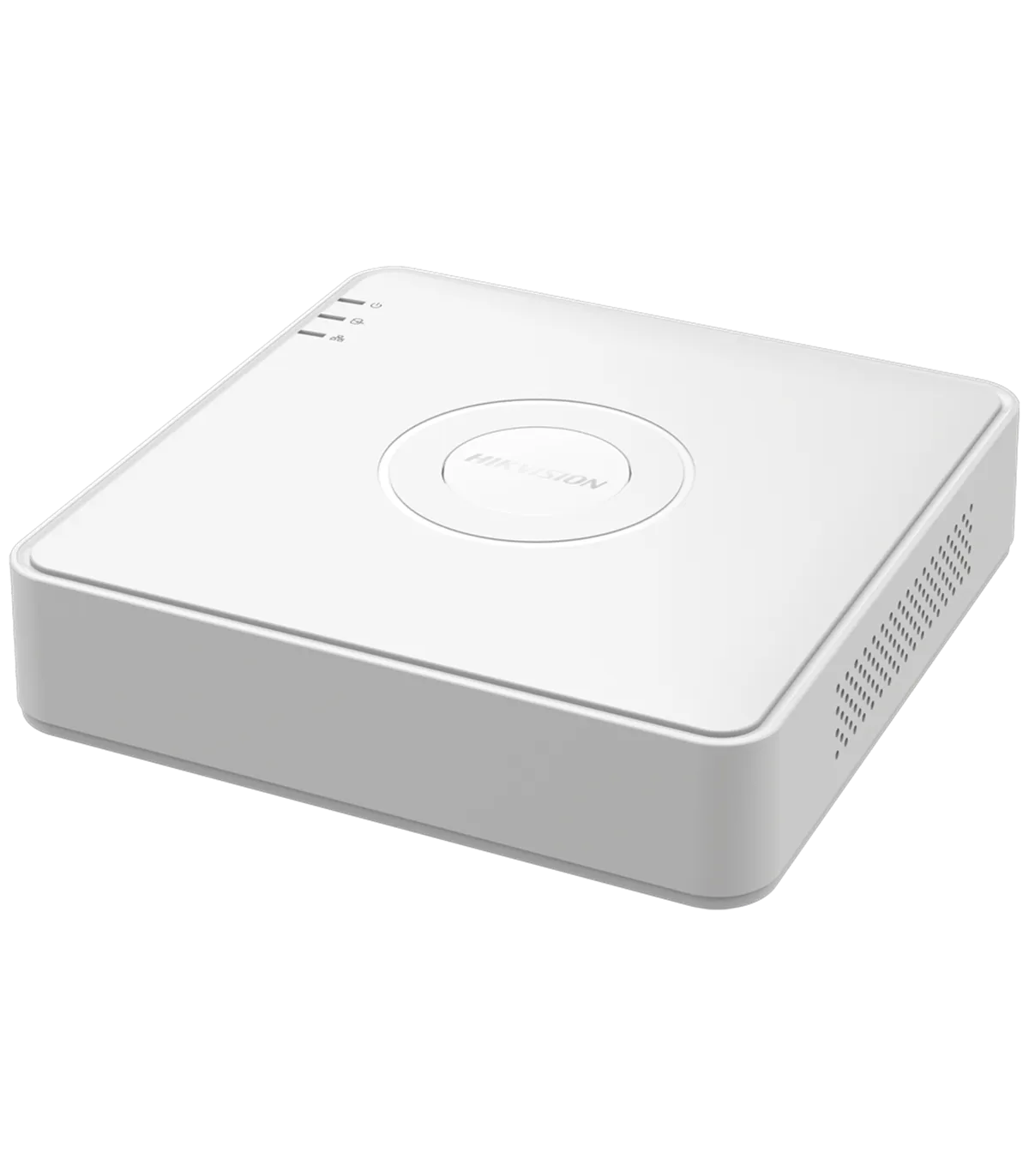

The iDS-7108HQHI-M1/T is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 8 channels of video input, accommodating various formats such as HDTVI, HDCVI, AHD, and CVBS, along with 12 IP channels. This device is ideal for both residential and commercial applications, providing high-definition recording capabilities with a maximum input resolution of 3K at 12fps. Its compact design and advanced features, including motion detection and face detection, make it a reliable choice for enhancing security.
| Brand | HIKVISION |
| Series | VALUE |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH additional IP: Up to 10 IP channels (6Mpx), replacing all BNC channels Enhanced IP mode: 4CH additional IP: Up to 12 IP channels (4Mpx), replacing all BNC channels |
| Available Bandwidth | 96 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Audio Inputs | 1 RCA Channel Audio over coaxial (up to 4 channels) |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video Compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 3K Lite / 5Mpx Lite / 4 Mpx Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4 Mpx Lite / 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 5 Mpx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | With 1080p Lite mode disabled: For 3K stream: 3K Lite @12fps, 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 5Mpx stream: 5Mpx @12fps, 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 4Mpx stream: 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @25fps For 1080p stream: 1080p/720p @15fps, WD1/4CIF/VGA/CIF @25fps With 1080p Lite mode enabled: 3K lite/5Mpx Lite @12fps, 4Mpx Lite @15fps, 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @25fps |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Available on 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Face detection and search |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1xRJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.5 A, ≤ 12 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 200 (W) mm x 200 (D) mm |
| Weight | ≤ 1 Kg (without HDD) |
| Color | White |
The iDS-7108HQHI-M1/T is an excellent choice for installers looking to set up a robust security system in a retail environment. With its multi-format support, this DVR can seamlessly integrate with existing analog and IP cameras, providing flexibility in deployment. The motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. Additionally, the remote access capabilities allow users to monitor their premises in real-time via the Hik-Connect app or web browser, ensuring peace of mind. The compact design makes it easy to install in tight spaces, while the ability to support up to 12 IP channels offers scalability for future expansion. Overall, the iDS-7108HQHI-M1/T delivers a comprehensive solution for effective surveillance and security management.
