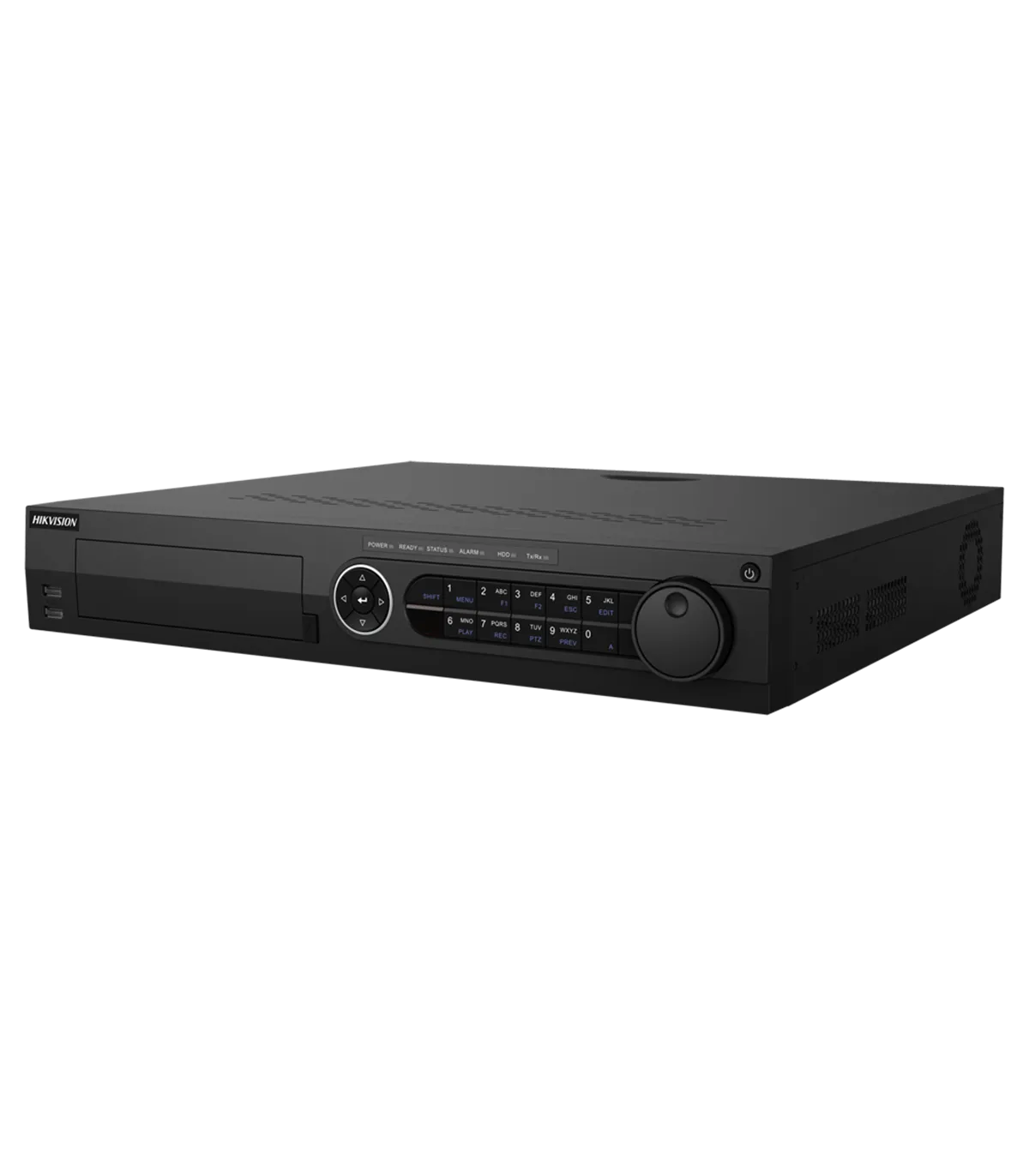

The iDS-7316HQHI-M4/S is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 16 channels of video input, accommodating various formats such as HDTVI, HDCVI, AHD, and CVBS, making it ideal for both new installations and upgrades. With advanced compression technologies like H.265 Pro+, this device ensures efficient storage and high-quality playback, making it suitable for a wide range of applications, from retail to industrial environments.
| Brand | HIKVISION |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 4 additional IP CH: Up to 20 IP channels (6 MP), replacing all BNC channels |
| Available Bandwidth | 240 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 3840x2160 (4K) / 30 Hz; 2560x1440 (2K), 1920x1080, 1280x1024, 1280x720, 1024x768 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channel |
| Audio Outputs | 2 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 3K, 4MP, 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 4MP, 1080p (25~30 fps), 720p (25~30 fps) AHD: 4MP, 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite not enabled 3K Stream: 3K Lite @12 FPS; 4MP Lite/1080p @15 FPS; 20p/WD1/4CIF/VGA/CIF@20 FPS 4MP Stream: 4MP Lite@15 FPS; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 FPS (P)/30 FPS (N) 1080p Stream: 1080p/720p@15 FPS; VGA/WD1/4CIF/CIF@25 FPS (P)/30 FPS (N) 720p Stream: 720p/VGA/WD1/4CIF/CIF@25 FPS (P)/30 FPS (N) 1080P Lite enabled 3K Lite @12 FPS; 4MP lite@15 FPS; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 FPS (P)/30 FPS (N) |
| Extra Stream Encoding | WD1/4CIF@12FPS; CIF@25 FPS (P)/30 FPS (N) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 16 inputs / 4 relay |
| POS | Yes |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 4 SATA 3.5" HDDs of up to 12 TB each (not included) |
| Communication | 3 x USB (Mouse and backup) / 2 x RJ45 (Ethernet) / 1 x RS-485 full-duplex / 1 x RS-232 / 1 x e-SATA |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | AC 100~240 V, ≤ 55 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 445 (W) x 390 (D) x 70 (H) mm / ≤ 5 Kg (without HDD) |
The iDS-7316HQHI-M4/S is ideally suited for a variety of surveillance environments, such as retail stores, warehouses, and office buildings. Installers can leverage its multi-format compatibility to integrate existing analog systems with modern IP cameras, providing a seamless upgrade path. The device's high-definition video output ensures that users can monitor their premises with clarity, while the remote access capabilities allow for real-time viewing from anywhere via web browsers or mobile applications. Additionally, the pentaplex functionality enables simultaneous live viewing, recording, playback, backup, and remote access, enhancing operational efficiency. With support for up to 20 IP channels, this DVR is perfect for expanding surveillance systems without compromising performance.
