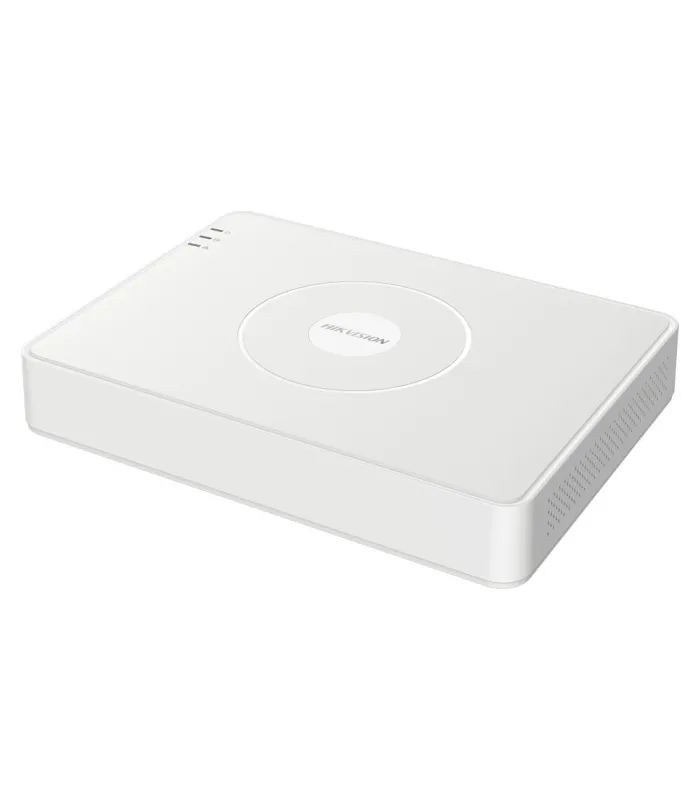

| Brand | HIKVISION |
| Range | Value |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 2 additional IP CHs: Up to 18 IP channels (5 Mpx), replacing all BNC channels |
| Available bandwidth | 96 Mbps |
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio compression | G.711u |
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 Channels IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording resolution | 1080p Lite/ 720p/ 720p Lite/ WD1/ 4CIF/ VGA/ CIF |
| Input resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (15 fps) For 720p stream: 720p/WD1/4CIF/VGA/CIF (15 fps) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | For 1080p and 720p stream: CIF/QVGA (15 fps) For SD stream: CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps at 4 Mbps |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all channels analog. |
| Recording method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB 2.0 (rear) ) / 1 x RJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power | DC 12 V, 1.6 A, ≤ 7 W (without HDD) |
| Temperature Operation | -10° ~ +55° C |
| Dimensions / Weight | 45 (H) mm x 285 (W) mm x 210 (D) mm / ≤ 1.8 Kg (without HDD) |
| Color | White |
Data sheet
