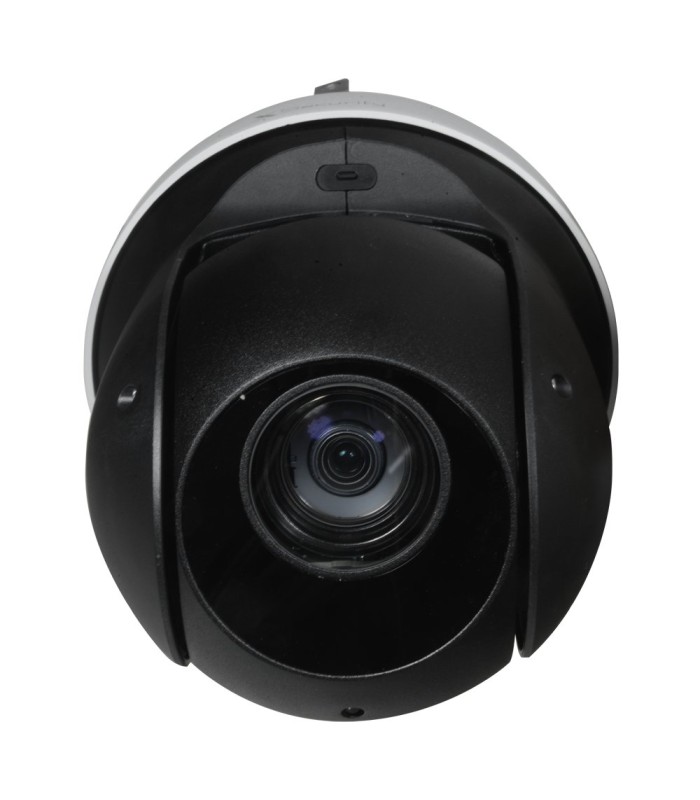

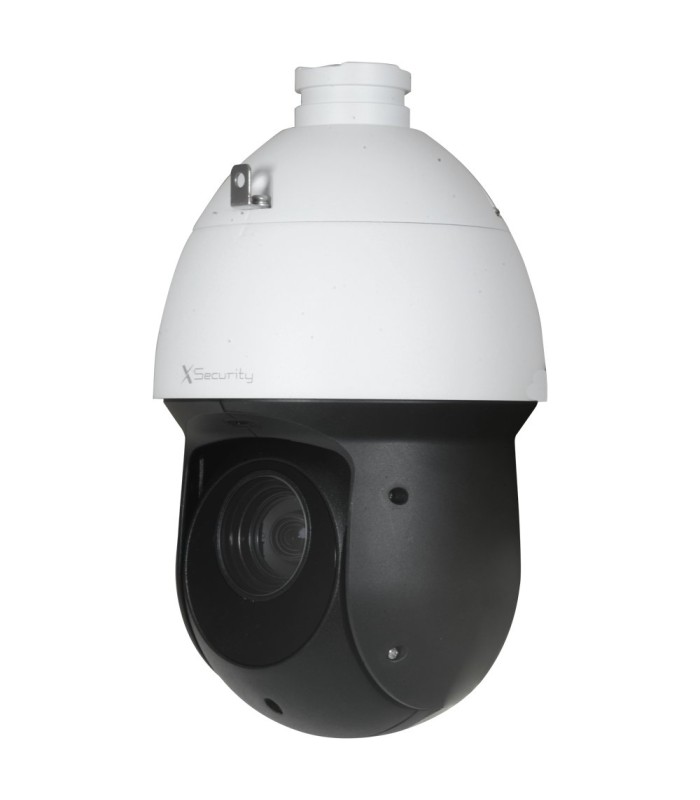

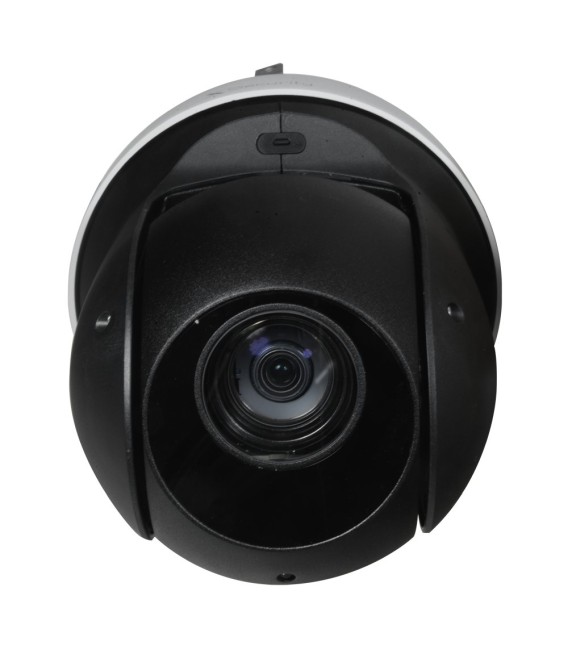

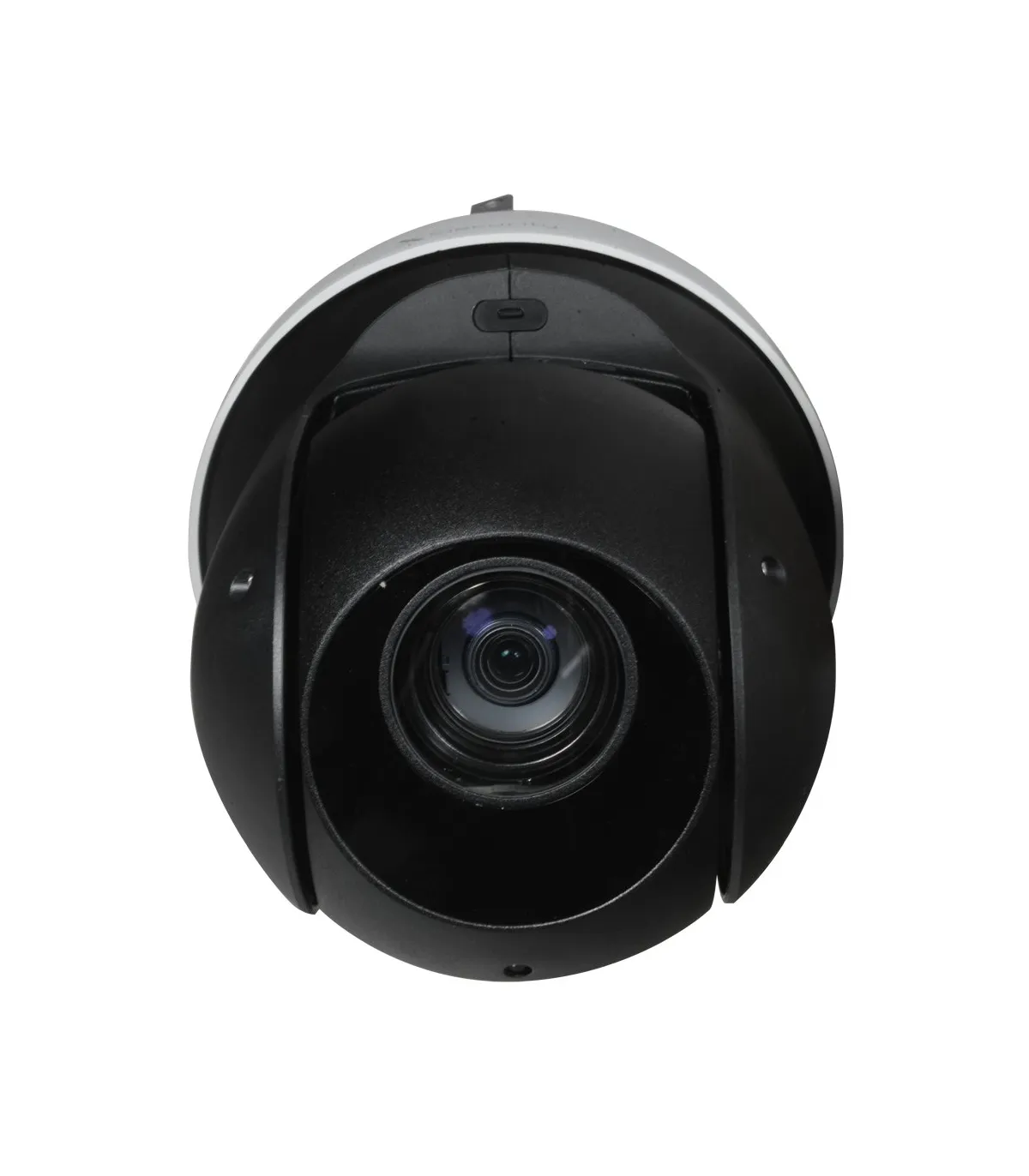

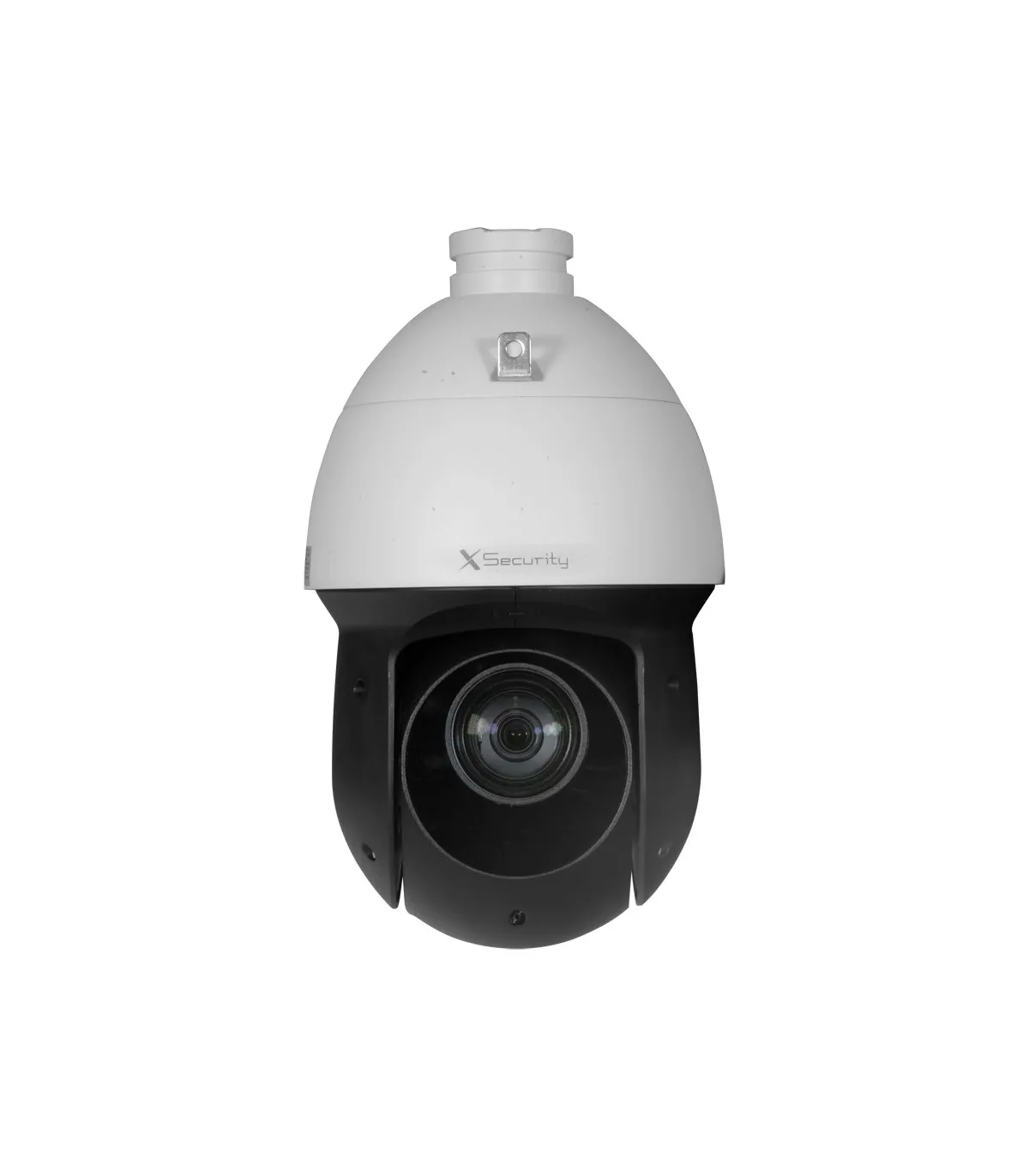

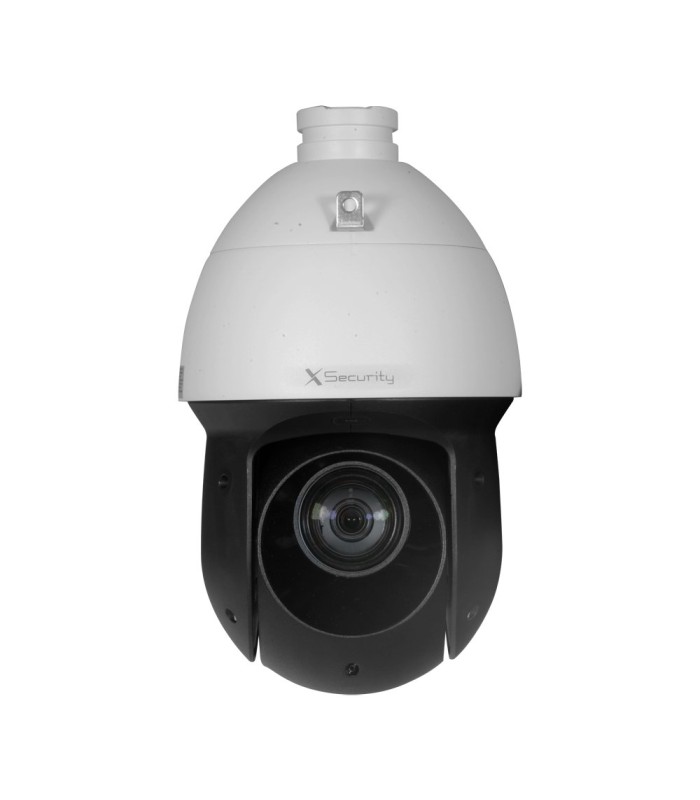

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD6325SIA-4P-WIZ

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD6325SIA-4P-WIZ

Name: X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD6325SIA-4P-WIZ
Brand: X-SECURITY
Price: 506.1805 EUR
Availability: InStock

X-Security 8 Mpx PTZ IP Camera Ultra Range XS-IPSD6325SIWHA-8U-AI

X-Security 2 Mpx PTZ IP Camera Pro Range XS-IPSD6325SIA-2P-WIZ

Brand: X-SECURITY

SKU: XS-IPSD6325SIA-4P-WIZ

Condition: New product

X-Security 4 Mpx Pro Range PTZ IP Camera
1/2.8” STARVIS CMOS
Varifocal lens 5-125 mm (25x)
IR distance 100 m | Starlight Technology
Intelligent Functions | Quick Pick | SMD 4.0

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

X-Security 4 Mpx Pro Range PTZ IP Camera XS-IPSD6325SIA-4P-WIZ

X-Security
PTZ IP Camera
4 Megapixel (2560 × 1440)
Pro Range
1/2.8" Progressive Scan CMOS
25X Optical Zoom
Varifocal Lens 5–125 mm
Starlight Technology
0.005 Lux
IR Range 100 m
Compression H.264H/H.264B/Smart H.265+/H.265/MJPEG
RJ-45 10/100 BaseT
PoE+ 802.3at
IVS (Perimeter Protection)
Facial Detection
SMD 4.0
Quick Pick
IP66 Waterproof
Alarms
Recording on SD card
Compatible with ONVIF
Wall mount included

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8" STARVIS™ CMOS
Resolution	4 Megapixel (2560 × 1440)
Lens	Varifocal 5 ~ 125 mm (25X Optical Zoom) Auto Iris, Auto Focus
Digital Zoom	25 X
Infrared Illumination	Range 100m
DORI	2500 (D), 987.5 (O), 500 (R), 250 (I)
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
Main Stream Rate	4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Extra Stream Rate	D1/CIF@ (1–25/30 fps)
Bitrate	H264: 96–14,848 Kbps H265: 38–8,960 Kbps
Image Enhancements	WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Minimum Illumination	Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux@F1.6 (IR light on)
SMD 4.0	Integrated
Quick Pick	Integrated
IVS (Perimeter Protection)	Tripwire; intrusion; cross line detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/human alarm classification
Facial Detection	Supports facial detection, optimization, tracking, high-quality facial snapshot capture, and facial enhancement; Supports attribute extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, fear, surprise, calm, happy, and confused), mask, mustache; Supports facial cropping: Face, one-inch photo. Capture strategies include real-time capture, optimization, and quality first. Supports up to 5 facial databases; registers people one by one or in batches; sets face similarity; Compares faces with 10,000 faces
Audio	1 Input / 1 Output
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Day / Night	Removable ICR mechanical filter
Network Interface	Ethernet 10/100 BaseT
Remote Access	WEB interface, CMS software, mobile application, and NVR
Memory	Micro SD card slot (Max 256 GB)
Pan/Tilt Range	Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180°auto flip 180°
Manual Speed	Pan: 0.1°–200°/s Tilt: 0.1°–120°/s
Speed between Presets	Pan: 240°/s Tilt: 200°/s
Pre-set Positions	300, 5 auto pattern, 8 auto tour, 5 auto scan
Communication	RTMP; CGI; SDK; ONVIF (Profile S&G&T); P2P
Alarms	2 inputs / 1 relay NO/NC
Power	DC 12 V / 3 A, PoE+(802.3at)
Protection Grade	IP66, TVS 6000 V lightning-proof; surge protection; Transient voltage protection
Operating Temperature	-40º C ~ +70º C
Dimensions	270.4 mm (H) x 160 (Ø) mm
Weight	2.4 Kg
