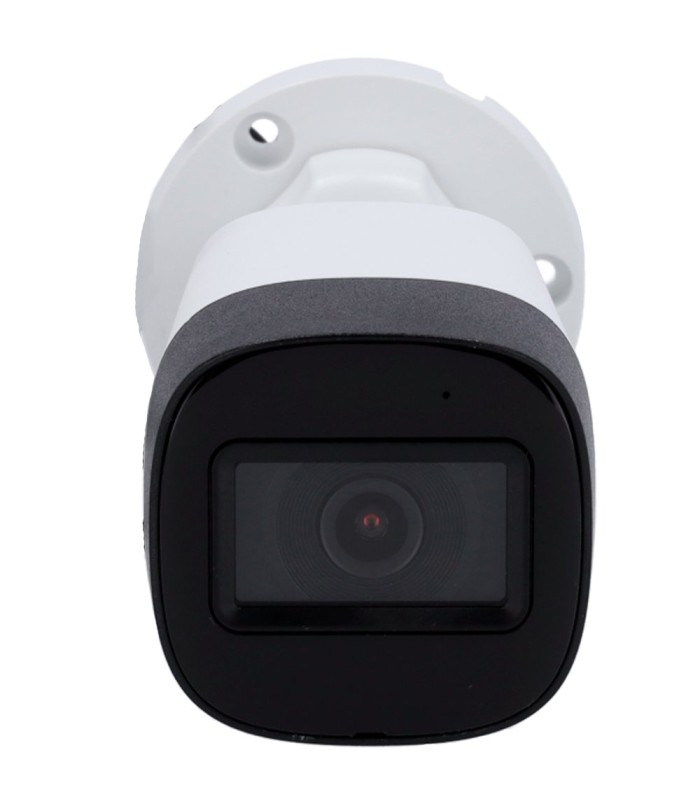

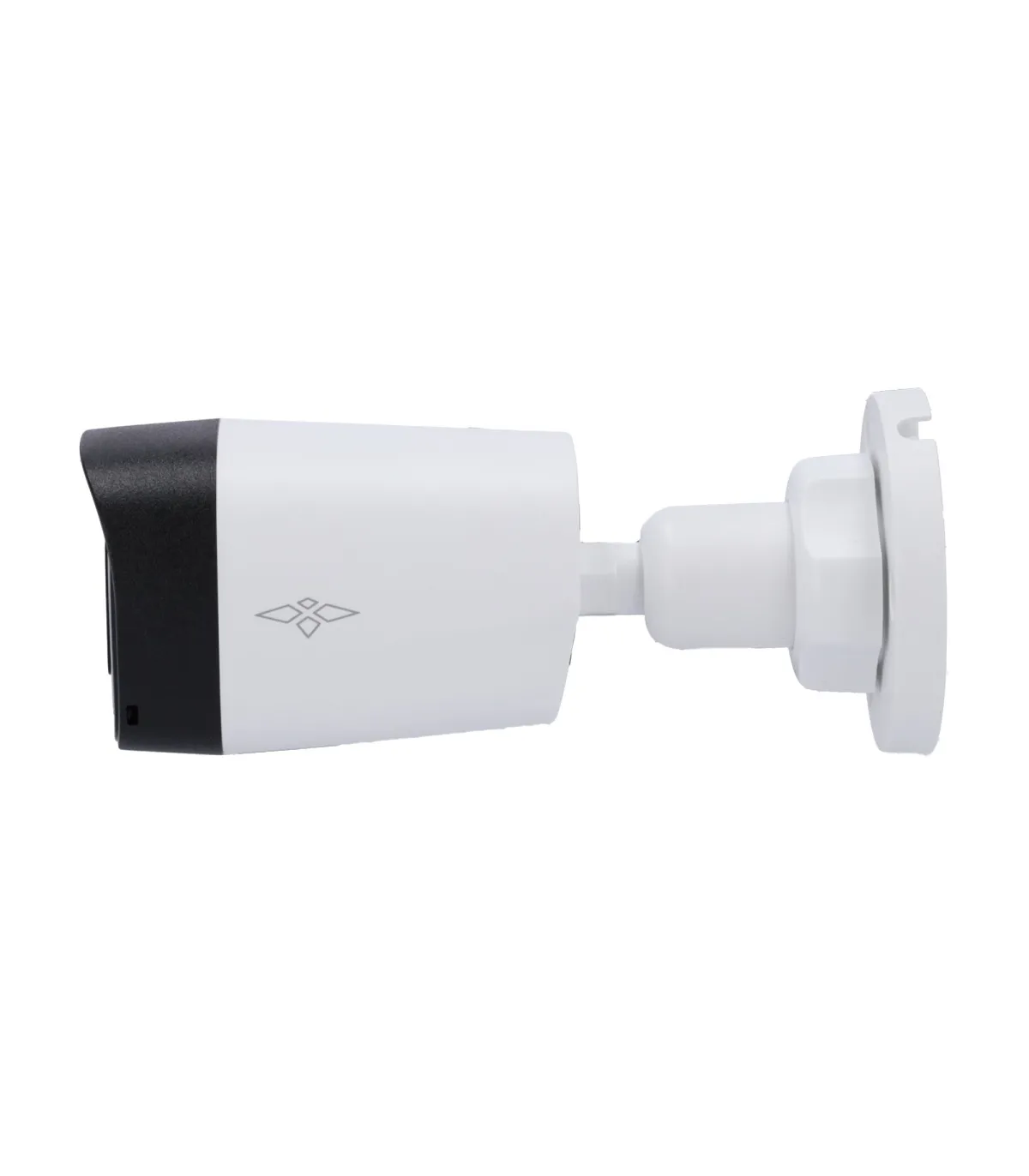

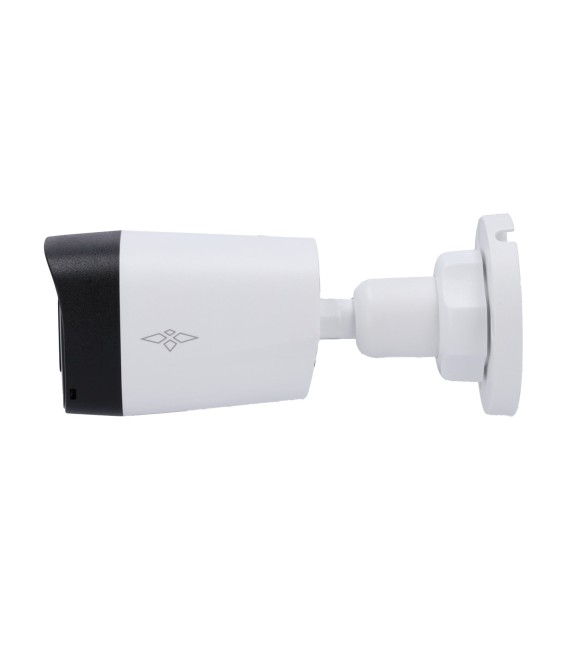

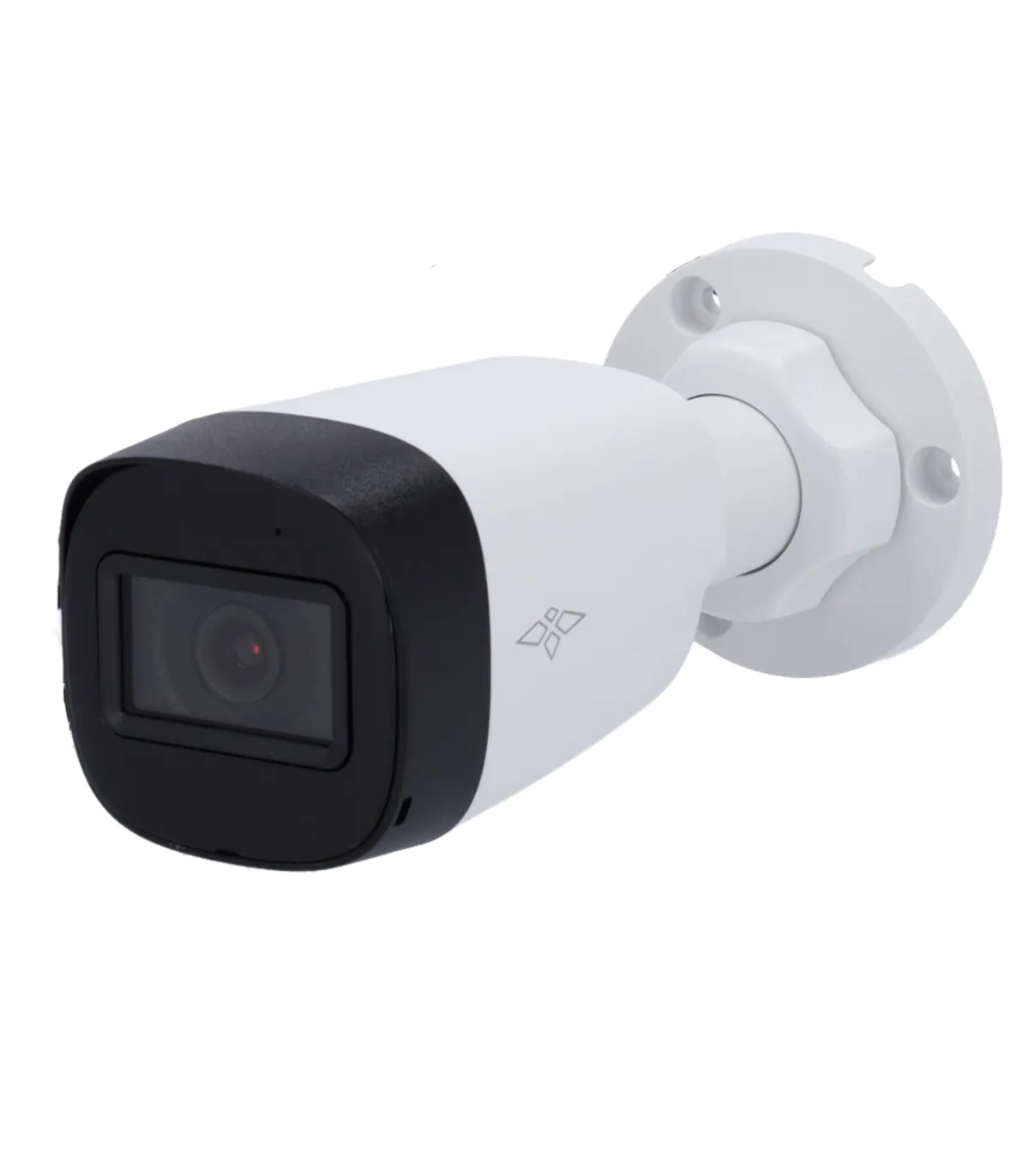

| Brand | X-Security |
| Range | ECO |
| Image Sensor | 3K 1/2.7" CMOS (5Mpx 16:9) |
| Maximum Resolution | 3K (2880x1620) |
| Resolution | 3K (1 ~ 25/30fps), 4 Mpx(1 ~ 25/30fps),1080P (1 ~ 25/30fps) |
| Lens | 2.8 mm |
| Minimum Illumination | 0.005 Lux / F1.6 |
| Infrared Illumination | 0 Lux / SMART IR (30 m) |
| Day/Night | Auto / Color / BW (Black and White) |
| Alarm | Not available |
| Audio | Built-in microphone (Audio via coaxial cable in HDCVI) |

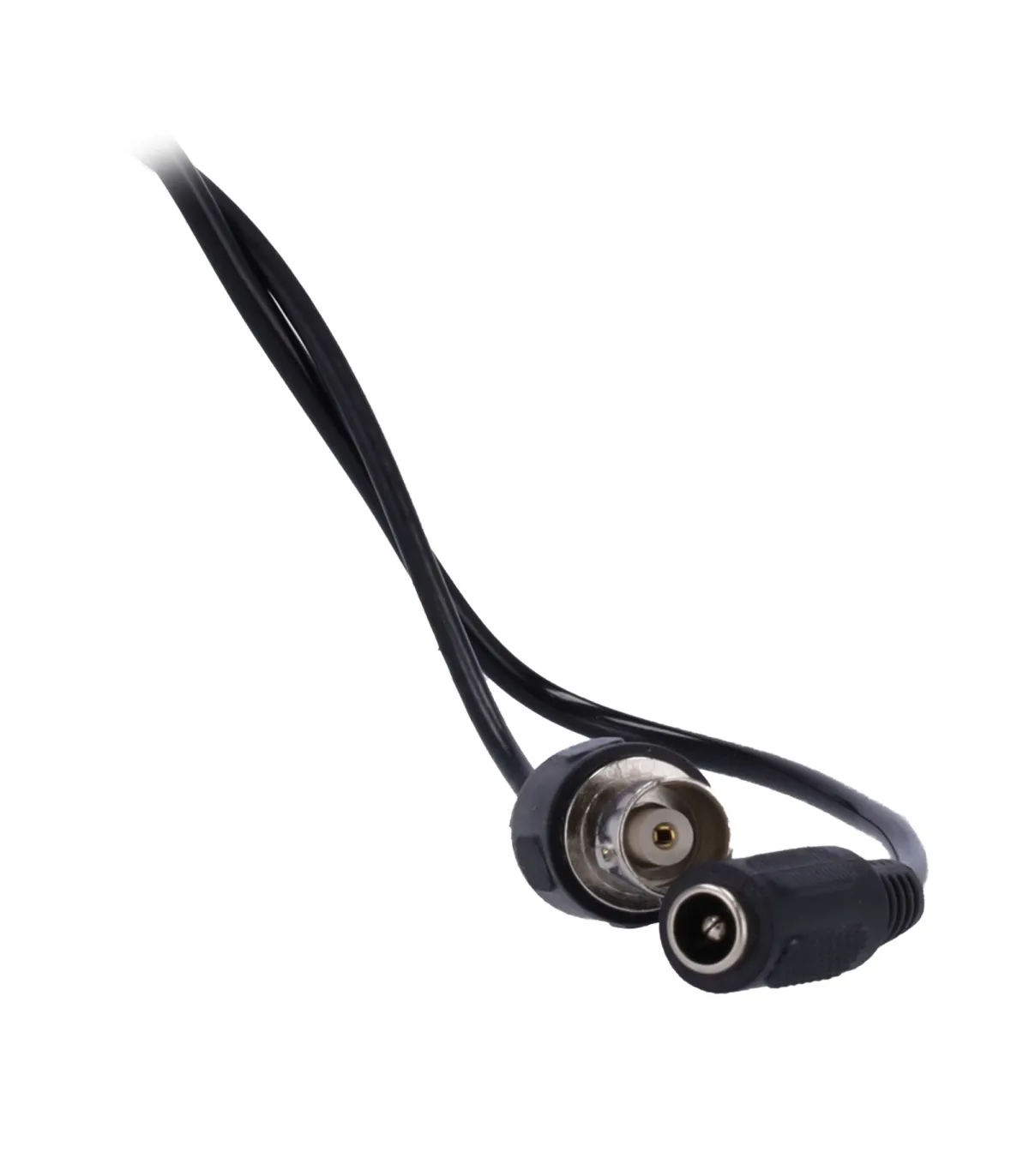

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Through OSD |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR, 2D-DNR, HLC, BLC, AGC, Smart IR |
| Power | DC 12 V / 310 mA / 3.7 W max |
| Protection Grade | Waterproof IP67 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Aluminum and plastic |
| Dimensions | 161.3 (L) x 69.7 (W) x 70 (H) mm |
| Weight | 190 g |
