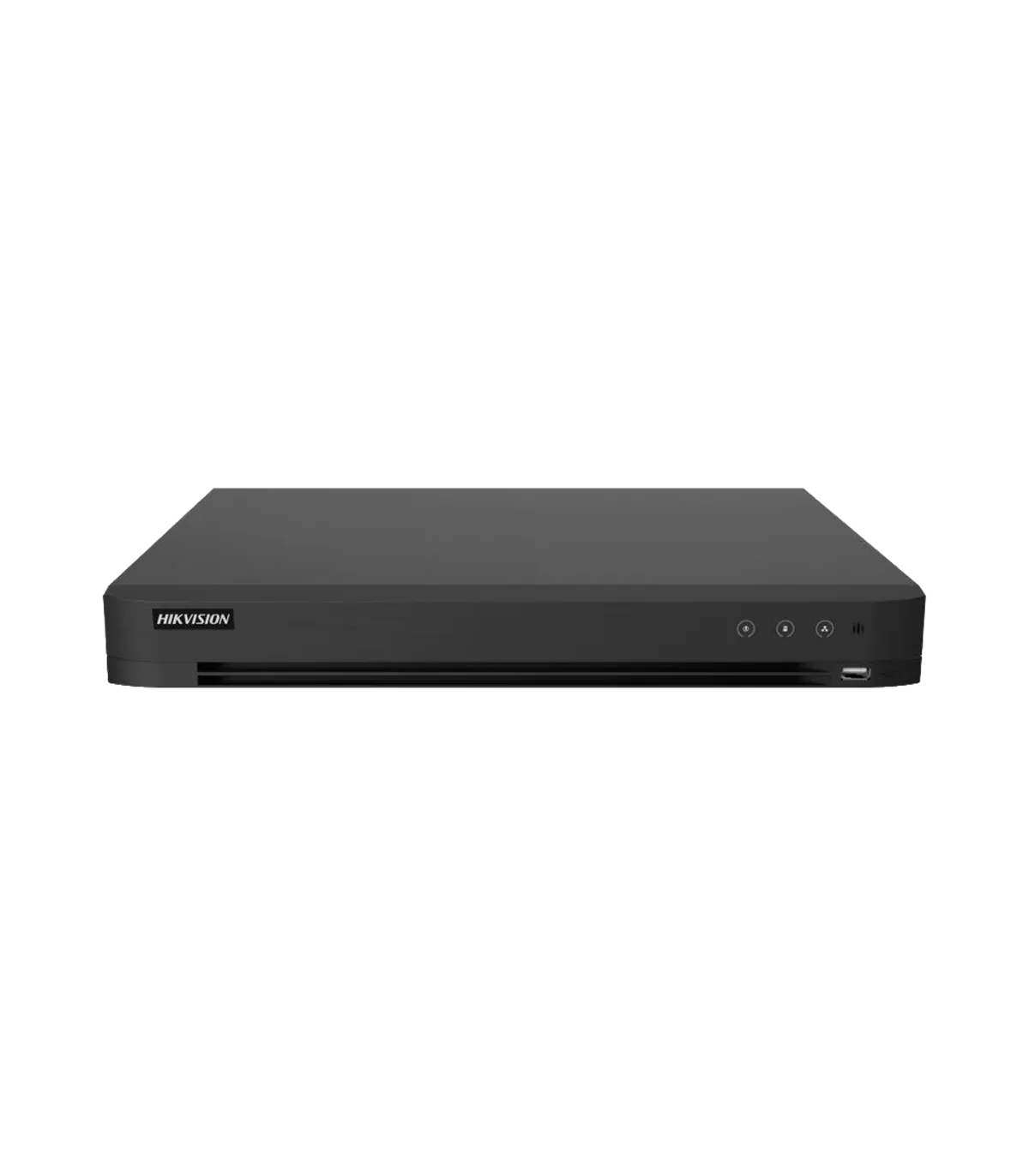

The iDS-7208HUHI-M2/X is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports up to 8 channels of video input, accommodating various formats such as HDTVI, HDCVI, AHD, and CVBS, along with the capability to connect 16 IP cameras. This device is ideal for both residential and commercial applications, providing advanced features like facial recognition and motion detection with AcuSense technology, ensuring reliable security monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 8 additional IP CH: Up to 16 IP channels (8 MP), replacing all BNC channels |
| Main Stream Encoding | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Extra Stream Encoding | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Decoding Capacity | 24 channels 1080P@30fps |
| Total Bandwidth | 256 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Video Compression | Analog: H.265+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (12 fps), 3K (20~25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8Mpx (12 fps), 3K (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps),1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Alarm | Not available |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection For the NVR: Available on all channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 8 channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Facial Recognition | Storage in up to 16 libraries. Face comparison on up to 4 CH. |
| Facial Detection | Facial detection; photo search; Up to 4 channels for image capture. |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 2 SATA 3.5" HDDs of up to 12 TB each (not included) |
| Communication | 1 x USB 2.0 (front panel) / 2 x USB 3.0 (rear panel) / RJ45 (Ethernet) 10/100/1000 Mbps / 1 x RS-485 |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 3.3 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 384 (W) x 317 (D) x 52 (H) mm / ≤ 1.78 Kg (without HDD) |
The iDS-7208HUHI-M2/X is ideally suited for a variety of surveillance environments, including retail stores, office buildings, and residential complexes. Installers can leverage its dual stream IP access to provide clients with seamless remote monitoring capabilities via the Hik-Connect app. The device's motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. Additionally, the facial recognition capability allows for effective monitoring of individuals entering or exiting premises, making it a valuable tool for security personnel. With support for up to 16 IP channels, this DVR can easily adapt to expanding security needs, ensuring comprehensive coverage. The robust 4K video output ensures high-quality recordings, providing clarity and detail essential for effective surveillance.
