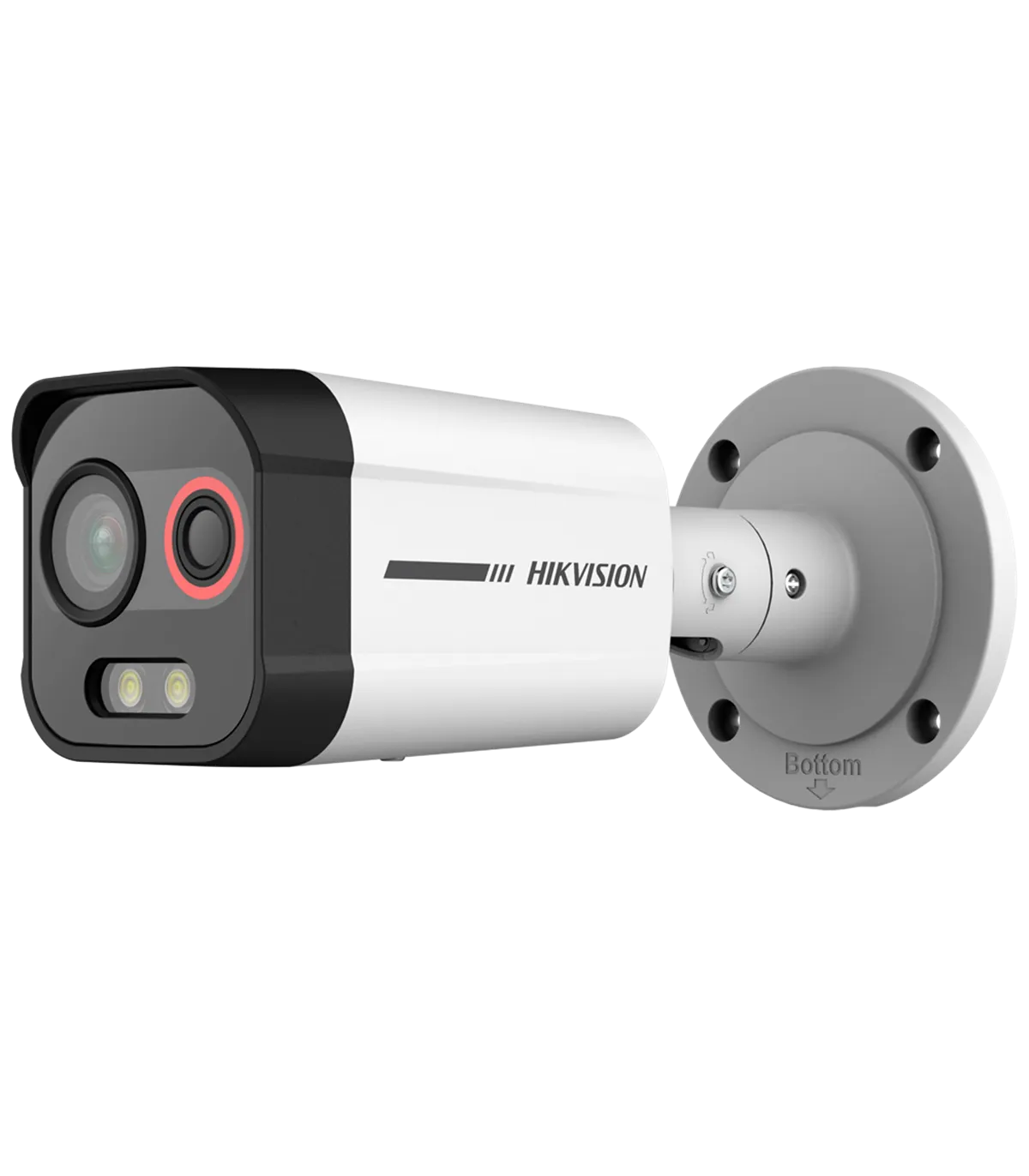

Hikvision Dual Thermal 4MP ColorVu IP Camera IP66 IK10 DS-2TD2608-2/QA
- Hikvision PRO Series Dual IP Thermal Camera
- Thermal Sensor 96x72 VOx | 2.6 mm Lens
- Optical Sensor 1/1.8” 4 MP | 6 mm Lens
- Thermal Sensitivity ≤ 55mK | ColorVu
- Fire Prevention Detection and Alarm
- Alarms | IP66 | IK10 | Audio and Visual Deterrents
Description & Key Features: DS-2TD2608-2/QA
The DS-2TD2608-2/QA is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. This device is ideal for environments requiring both thermal and optical monitoring, providing exceptional 24-hour color imaging with its ColorVu technology. With a thermal sensitivity of less than 55 mK, it ensures precise detection of temperature variations, making it suitable for fire prevention and security monitoring in critical areas.
- Hikvision
- PRO Series
- Dual IP Thermal Bullet Camera
- 96x72 Vox Thermal Sensor
- 2.6 mm Thermal Lens
- Thermal Sensitivity < 55 mK
- 1/1.8” Progressive Scan CMOS Optical Sensor
- 4 Megapixel Optical Resolution (2688x1520)
- 6 mm Optical Lens
- Color 0.0005 Lux@(F1.0, AGC ON)
- White Light Range 30 m
- ColorVu: 24-hour Color Imaging
- WDR (120 dB)
- 3D-DNR
- H.265 / H.264
- RJ-45 10/100 BaseT
- Integrated Alarms
- Integrated Audio and Visual Deterrents
- Preventive Fire Detection and Alarm
- MicroSD Card Slot up to 256 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE IEEE802.3af
- IP67 Waterproof
- IK10 Vandal Resistant
- 4000 V Surge Protection
- DS-1260ZJ Connection Box Included
Specifications: DS-2TD2608-2/QA
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 96x72 |
| Optical Sensor | 1/1.8” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×480, 352x288, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352x288, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | Thermal: 2.6 mm Optical: 6 mm |
| Field of View | Thermal: 25° (H), 18.75° (V) Optical: 56° (H), 30° (V) |
| DORI | Person: 108 m (D), 27 m (R), 14 m (I) Vehicle: 332 m (D), 83 m (R), 42 m (I) |
| VCA Ranges | Person: 21 m Vehicle: 63 m |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with White Light Range 30 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Thermal Sensitivity | < 55 mK |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Alarms | 2 inputs / 2 outputs |
| Deterrent Alarm | Integrated Siren and Flash in the Camera |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI |
| Power Supply | DC 12 V, 0.7 A, 8.5 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 Waterproof IK10 Vandal Resistant 4000 V Surge Protection |
| Dimensions | 105 mm (H) x 105 mm (W) x 219.3 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 88.5 mm / 4 screws |
| Weight | 869.2 g |
Package Contents
- Hikvision PRO Series Dual IP Thermal Camera
- Installation Materials
- User Instructions
- DS-1260ZJ Connection Box Included
Use Case
The DS-2TD2608-2/QA is particularly effective in high-security environments such as warehouses, data centers, and critical infrastructure facilities. For instance, in a large warehouse, this camera can be strategically placed at entry points to provide comprehensive surveillance. The dual IP functionality allows for simultaneous thermal and optical monitoring, ensuring that security personnel can detect intrusions even in complete darkness. With its integrated audio and visual deterrents, the camera can actively discourage unauthorized access. Additionally, the remote monitoring capabilities via web browsers and mobile apps enable real-time oversight from anywhere, enhancing operational efficiency. The preventive fire detection feature adds an extra layer of safety, making it an invaluable asset for any security system.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Lens
- 2.6 mm
- Compatible models
- DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-S-SUS,DS-1275ZJ-S-SUS
Specific References
- EAN13
- 6942160419879
