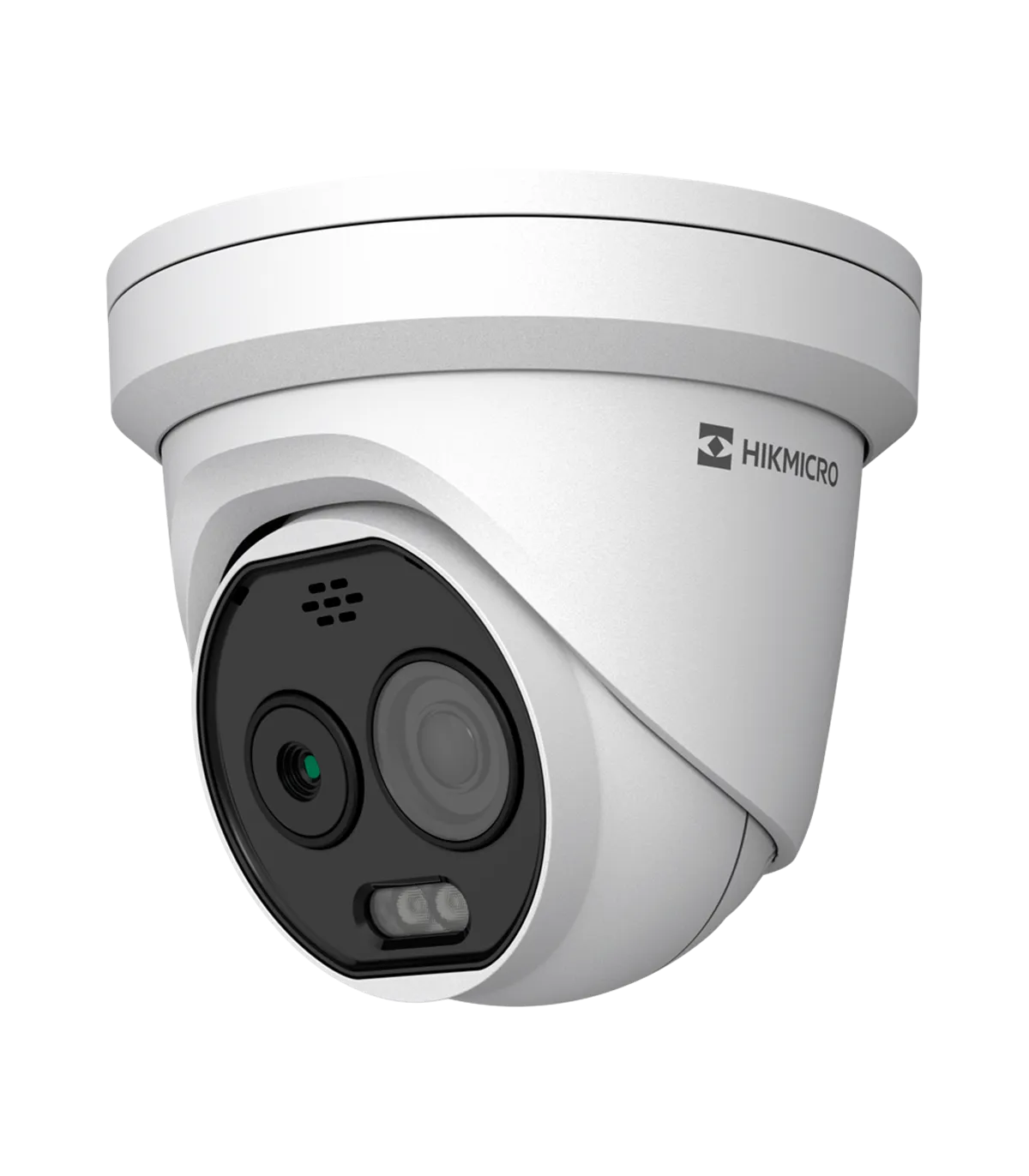

The HM-TD1218-7/G0/T1A is a state-of-the-art dual IP thermal turret camera designed for advanced surveillance applications. This device is ideal for environments requiring both thermal and optical monitoring, providing exceptional temperature measurement capabilities and high-resolution imaging. With features such as remote monitoring and fire detection, it is well-suited for critical security installations.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Detector Pitch | 12 μm |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Spectral Range | 8~14 μm |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1944, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.9mm (Thermal) / 8mm (Visible) |
| Field of View | Thermal: 24.9º (H), 18.7° (V) Visible: 39.4° (H), 21.96° (V) |
| DORI | Person: 287m (D), 72m (R), 36m (I) Vehicle: 881 m (D), 220m (R), 110m (I) |
| VCA Ranges | Person: 70m Vehicle: 210m Temperature Measurement (Object 0.2x0.2m): 23.3m Temperature Measurement (Object 0.5x0.5m): 58m Fire Detection (Object 0.5x0.5m): 48m Smoker Detection: 10.35m |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 1 input / 2 relays |
| Deterrent Alarm | Integrated speaker and flash in the camera |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12 VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12VDC ± 25%: 1.1A to 1.8A, Max. 16W PoE (802.3af, class 3): 42.5V to 57V, 0.4A to 0.3A, Max. 17W |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | Waterproof IP67, Surge protection 6000V |
| Dimensions | Ø 138.3mm x 121.6mm |
| Weight | 975.6g |
The HM-TD1218-7/G0/T1A is particularly effective in industrial settings where both thermal and optical surveillance are critical. For instance, in a manufacturing facility, this camera can be deployed to monitor equipment for overheating, utilizing its temperature measurement capabilities to prevent potential fires. The dual IP functionality allows for seamless integration with existing security systems, enabling remote monitoring via web browsers or mobile applications. Additionally, the camera's high-resolution imaging ensures that security personnel can identify potential threats from a distance. With its IP67 waterproof rating, the camera is suitable for outdoor installations, providing reliable performance in various weather conditions. This makes it an ideal choice for comprehensive security solutions in sensitive environments.
