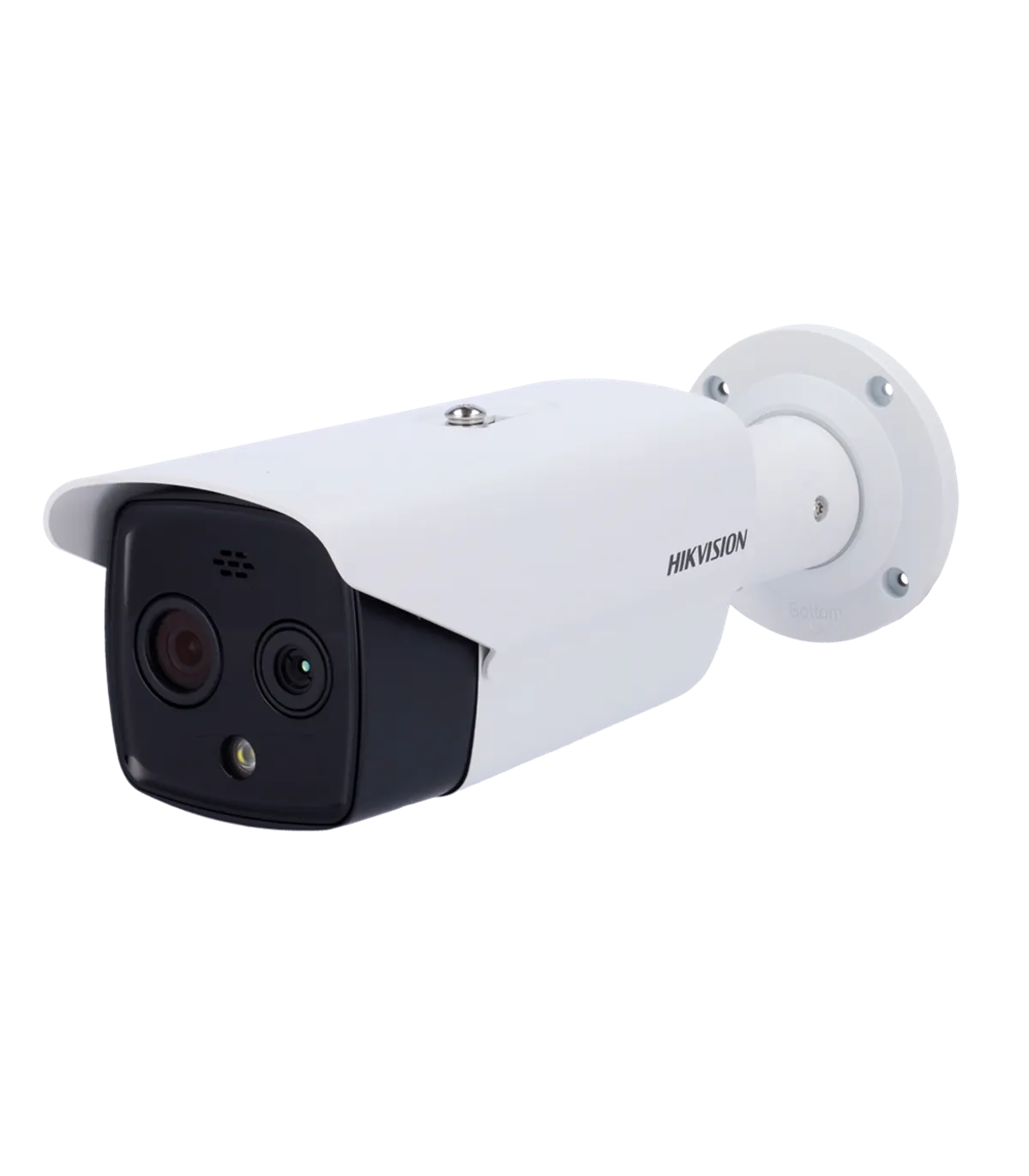

The DS-2TD2617-3/QA is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. This device is ideal for environments requiring temperature measurement and fire detection, making it suitable for industrial sites, warehouses, and critical infrastructure. With its robust features, including a 4 Megapixel optical sensor and a thermal sensor with a resolution of 160x120, it ensures high-quality imaging and reliable performance in various conditions.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×480, 352x288, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352x288, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.1 mm (Thermal) / 4 mm (Optical) |
| DORI | Person: 91 m (D), 23 m (R), 11 m (I) Vehicle: 280 m (D), 70 m (R), 35 m (I) |
| VCA Ranges | Person: 15 m Vehicle: 43 m Temperature Measurement (Object 0.2x0.2m): 6.82 m Temperature Measurement (Object 1x1m): 34.1 m Fire Detection (Object 0.2x0.2m): 31 m |
| Field of View | Thermal: 50° (H), 37.2° (V) Optical: 84° (H), 44.8° (V) |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 17 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 outputs |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V, 0.5 A, 6 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant, 6000 V Surge Protection |
| Dimensions | 115.2 mm (H) x 113.5 mm (W) x 358.3 mm (D) |
| Weight | 1.76 kg |
The DS-2TD2617-3/QA is perfectly suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, a manufacturing plant can utilize this camera to monitor temperature fluctuations in sensitive areas, ensuring compliance with safety regulations. The remote monitoring capabilities allow security personnel to access live feeds via a smartphone app or web interface, enhancing situational awareness. Additionally, the camera's fire detection feature can trigger alarms and alerts, providing an early warning system that can prevent catastrophic incidents. With its robust IP67 waterproof and IK10 vandal-resistant ratings, the camera is built to withstand harsh environmental conditions, making it a reliable choice for outdoor installations. Furthermore, the integration of advanced video content analysis (VCA) capabilities allows for customizable security rules, enhancing the overall effectiveness of the surveillance system.
