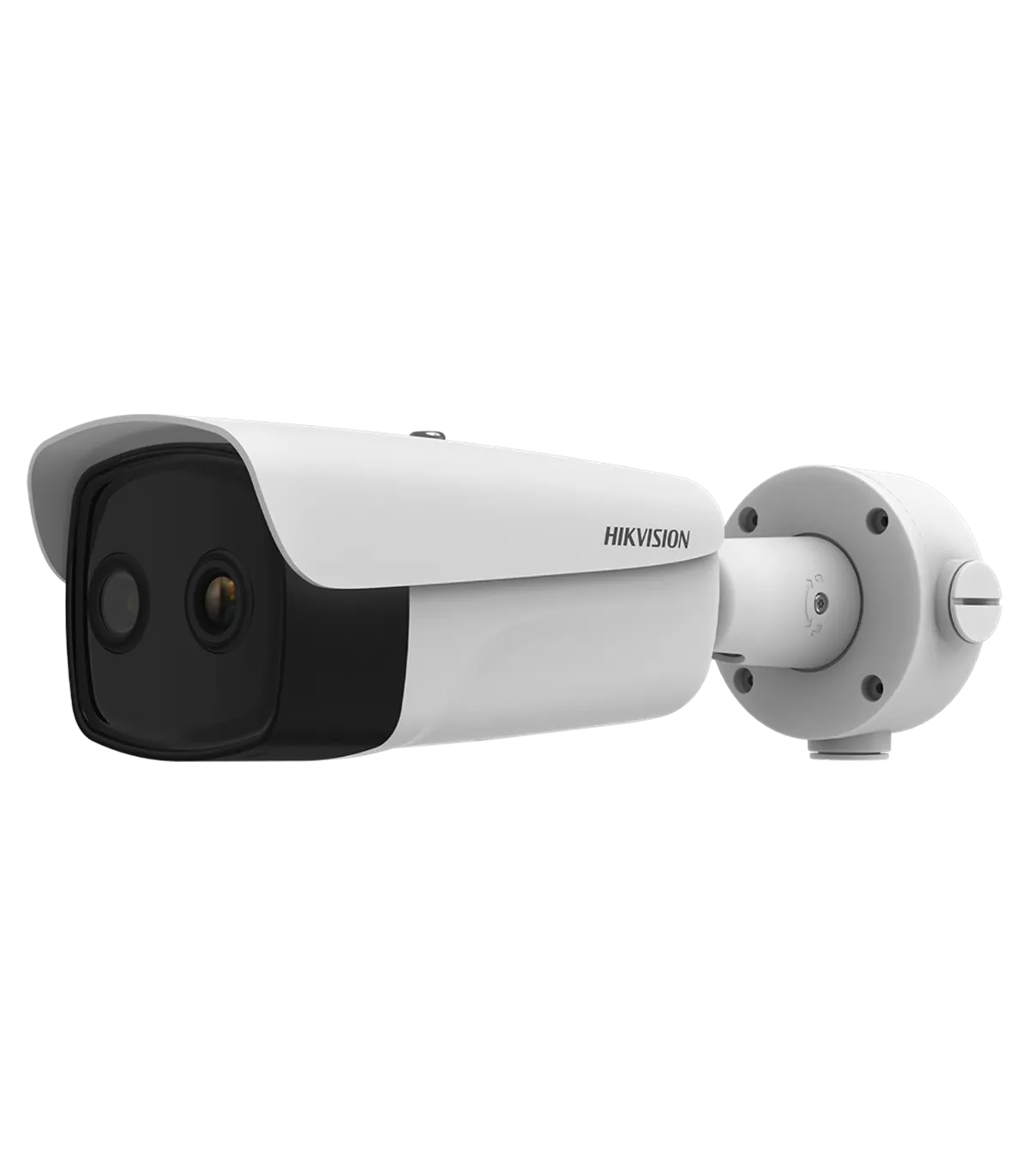

The HM-TD2638-8/G1/T3Y is a cutting-edge dual IP thermal bullet camera designed for advanced surveillance applications. It is ideal for environments requiring robust fire detection and temperature monitoring, such as industrial facilities, warehouses, and critical infrastructure. This device combines a 384x288 VOx thermal sensor with a high-resolution optical sensor, ensuring comprehensive coverage and reliable performance in various lighting conditions.
| Brand | Hikvision |
| Series | PRO based on GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 384x288 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 352x288, 384×288) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352x288, 384×288) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 7.6mm (Thermal) / 4.3mm (Visible) |
| DORI | Person: 317m (D), 79m (R), 40m (I) Vehicle: 971m (D), 243m (R), 121m (I) |
| VCA Ranges | Person: 104m Vehicle: 240m Temperature Measurement (Object 0.2x0.2m): 22.8m Temperature Measurement (Object 0.5x0.5m): 57m Fire Detection (Object 0.5x0.5m): 25.8m Smoker Detection: 11.4m |
| Field of View | Thermal: 35° (H), 26.1° (V) Optical: 83.7° (H), 43° (V) |
| Thermal Sensitivity | ≤20mK (25°C, F1.0) |
| Thermal Measurement Range | -20ºC ~ 150ºC / ±8ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Internal Storage | MicroSD Card Slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 24VAC ± 25% 12VDC ± 25% 24VDC PoE (802.3af, class 3) |
| Power Consumption | 24VAC ± 25%: 0.33A to 0.55A, max. 12.1W 12VDC ± 25%: 0.8A to 1.33A, max. 11.3W PoE (802.3af, class 3): 36V to 57V, 0.33A to 0.21A, max. 11.8W |
| Operating Temperature | -40ºC ~ +70ºC |
| Protection Rating | IP67 Waterproof, Surge Protection 4000V IK10 Vandal Resistant NEMA 4X Corrosion Resistant |
| Dimensions | 376.1mm x 119.1mm x 118.1mm |
| Weight | 1.82kg |
The HM-TD2638-8/G1/T3Y is particularly effective in environments such as manufacturing plants and logistics centers where fire safety is paramount. By utilizing its advanced thermal imaging capabilities, security personnel can monitor temperature fluctuations and detect potential fire hazards before they escalate. The camera's remote monitoring features allow for real-time alerts and notifications, ensuring that any anomalies are addressed promptly. Additionally, the integration of ONVIF compatibility facilitates seamless connection with existing security systems, enhancing overall surveillance efficiency. With its robust IP67 waterproof and IK10 vandal-resistant ratings, this camera is built to withstand harsh conditions, making it a reliable choice for outdoor installations.
