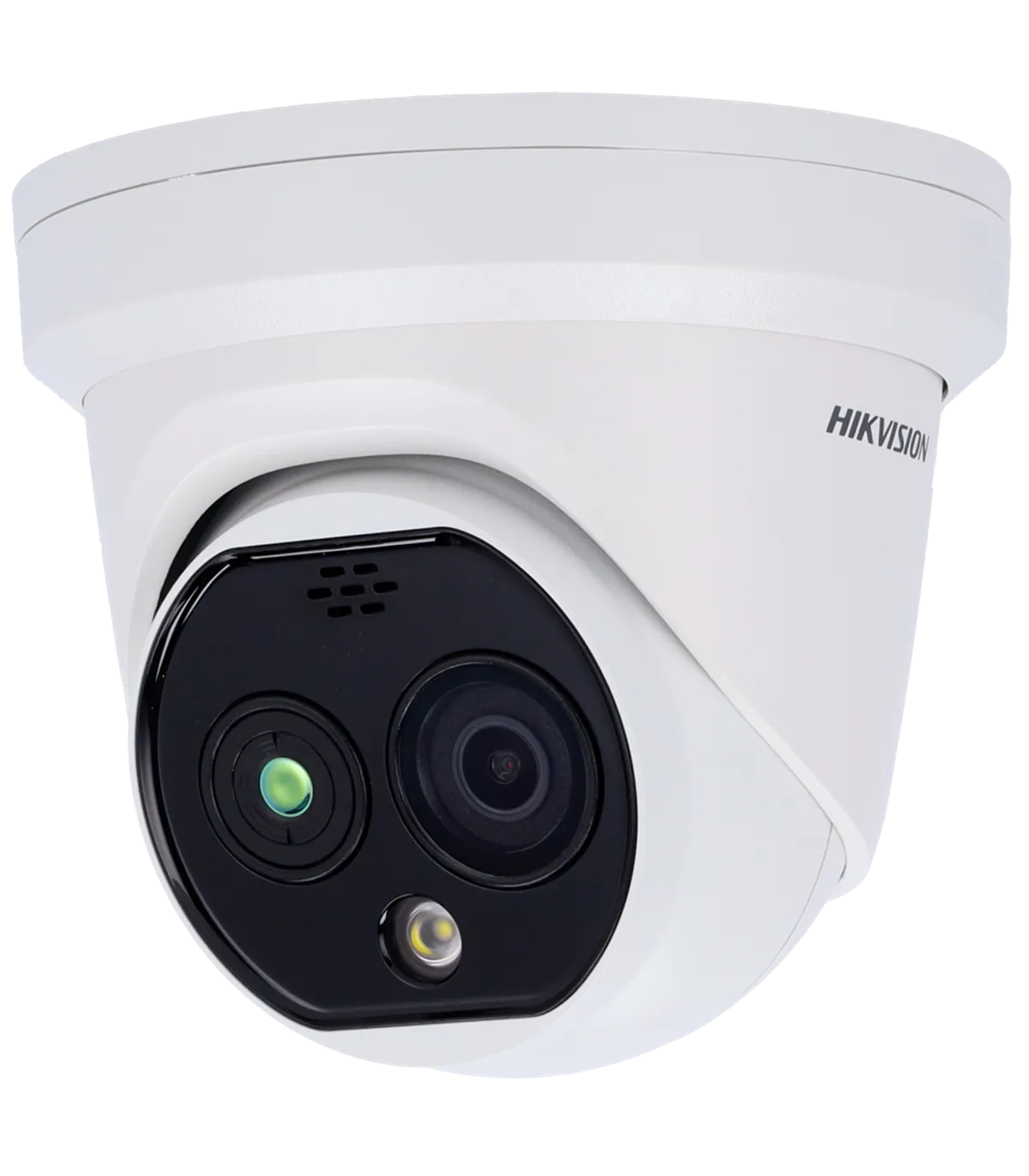

The DS-2TD1228T-3/QA(B) is a state-of-the-art dual IP thermal turret camera designed for advanced surveillance applications. This device excels in environments requiring precise temperature measurement and fire detection, making it ideal for industrial sites, warehouses, and critical infrastructure. With its robust features, including a 256x192 thermal sensor and a 4 Megapixel optical sensor, it ensures high-quality imaging and reliable performance in various lighting conditions.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.6 mm (Thermal) / 4.3 mm (Optical) |
| Field of View | Thermal: 50° (H), 37.3° (V) Optical: 84° (H), 43.1° (V) |
| DORI | Person: 150 m (D), 38 m (R), 19 m (I) Vehicle: 460 m (D), 112 m (R), 56 m (I) |
| VCA Ranges | Person: 28.4 m Vehicle: 75.6 m Temperature Measurement (Object 1x1 m): 58.3 m Temperature Measurement (Object 0.2 x 0.2 m): 11.7 m Fire Detection (Object 0.2 x 0.2 m): 43.2 m Smoke Detection (Object 0.5 x 0.5 m): 12.9 m Smoker Detection: 5.4 m |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~550 ºC / ± 2% |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 outputs |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI |
| Power Supply | DC 12 V, 500 mA, max. 6 W PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +70º C |
| Protection Grade | IP67 waterproof Surge protection 4000 V |
| Dimensions | Ø 138.3 mm (H) x 123.1 (D) |
| Weight | 940 g |
The DS-2TD1228T-3/QA(B) is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, in a large warehouse, this camera can be strategically placed to monitor temperature-sensitive areas, ensuring that any fluctuations outside the temperature measurement range of -20ºC to 550ºC are detected promptly. The camera's fire detection capabilities allow for immediate alerts, significantly enhancing safety protocols. Additionally, with its remote monitoring features via web browsers and mobile applications, security personnel can oversee operations from anywhere, ensuring a rapid response to any incidents. The integration of surge protection and an IP67 rating ensures durability in harsh conditions, making it a reliable choice for outdoor installations. Furthermore, the camera's ability to support up to 256 GB of internal storage allows for extensive recording capabilities, providing comprehensive surveillance coverage.
