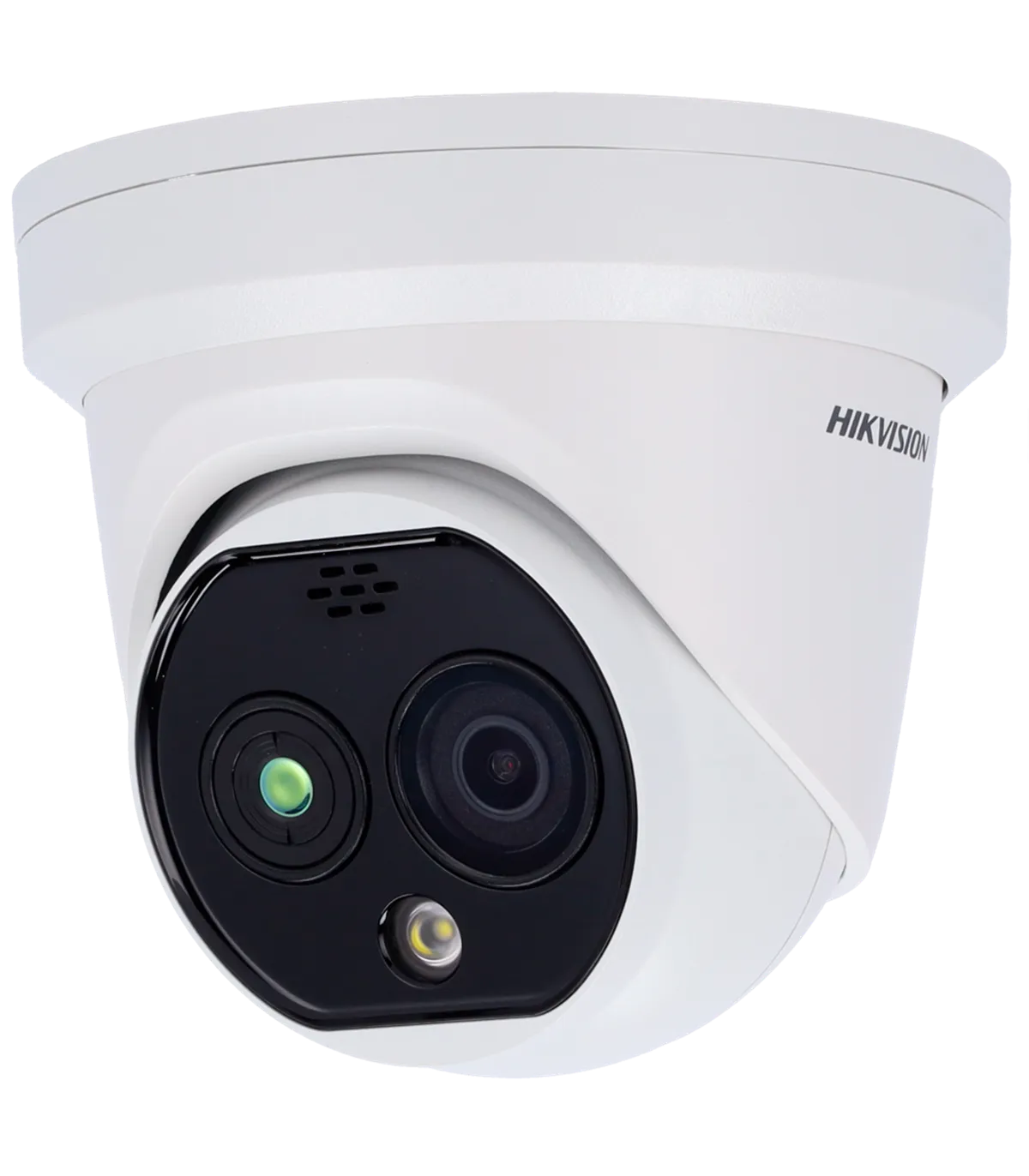

The DS-2TD1228T-2/QA(B) is a cutting-edge dual IP thermal turret camera designed for advanced surveillance applications. This device excels in environments where temperature measurement and fire detection are critical, making it ideal for industrial sites, warehouses, and outdoor areas. With its high-resolution thermal and optical sensors, it provides exceptional visibility and accuracy, ensuring comprehensive security coverage.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 2.1 mm (Thermal) / 2.2 mm (Optical) |
| DORI | Person: 88 m (D), 22 m (R), 11 m (I) Vehicle: 268 m (D), 67 m (R), 34 m (I) |
| VCA Ranges | Person: 16.8 m Vehicle: 50.4 m Temperature Measurement (Object 1x1m): 35 m Fire Detection (Object 0.2 x 0.2 m): 25.2 m Smoke Detection (Object 0.5 x 0.5 m): 6.6 m Smoker Detection: 31.5 m Temperature Measurement (Object 1x1m): 58.3 m Fire Detection (Object 0.2x0.2m): 43.2m |
| Field of View | Thermal: 90° (H), 65.4° (V) Optical: 117.8° (H), 70.4° (V) |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~550 ºC / ± 2% |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 relay |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +70º C |
| Protection Grade | IP67 waterproof, 4000 V surge protection |
| Dimensions | Ø 138.3 mm (H) x 123.1 mm (D) |
| Weight | 940 g |
The DS-2TD1228T-2/QA(B) is ideally suited for deployment in high-security environments such as warehouses and industrial facilities. In a typical scenario, the camera can be installed at strategic points to monitor critical areas, providing real-time surveillance and temperature monitoring. With its advanced fire detection capabilities, the camera can alert security personnel to potential hazards, ensuring a rapid response to emergencies. The remote access feature allows users to monitor live feeds via a smartphone app or web browser, enhancing operational efficiency. Additionally, the camera's IP67 waterproof rating ensures reliable performance in harsh weather conditions, making it a robust choice for outdoor installations. The integration of PoE technology simplifies installation by reducing the need for additional power sources, making it a cost-effective solution for comprehensive security coverage.
