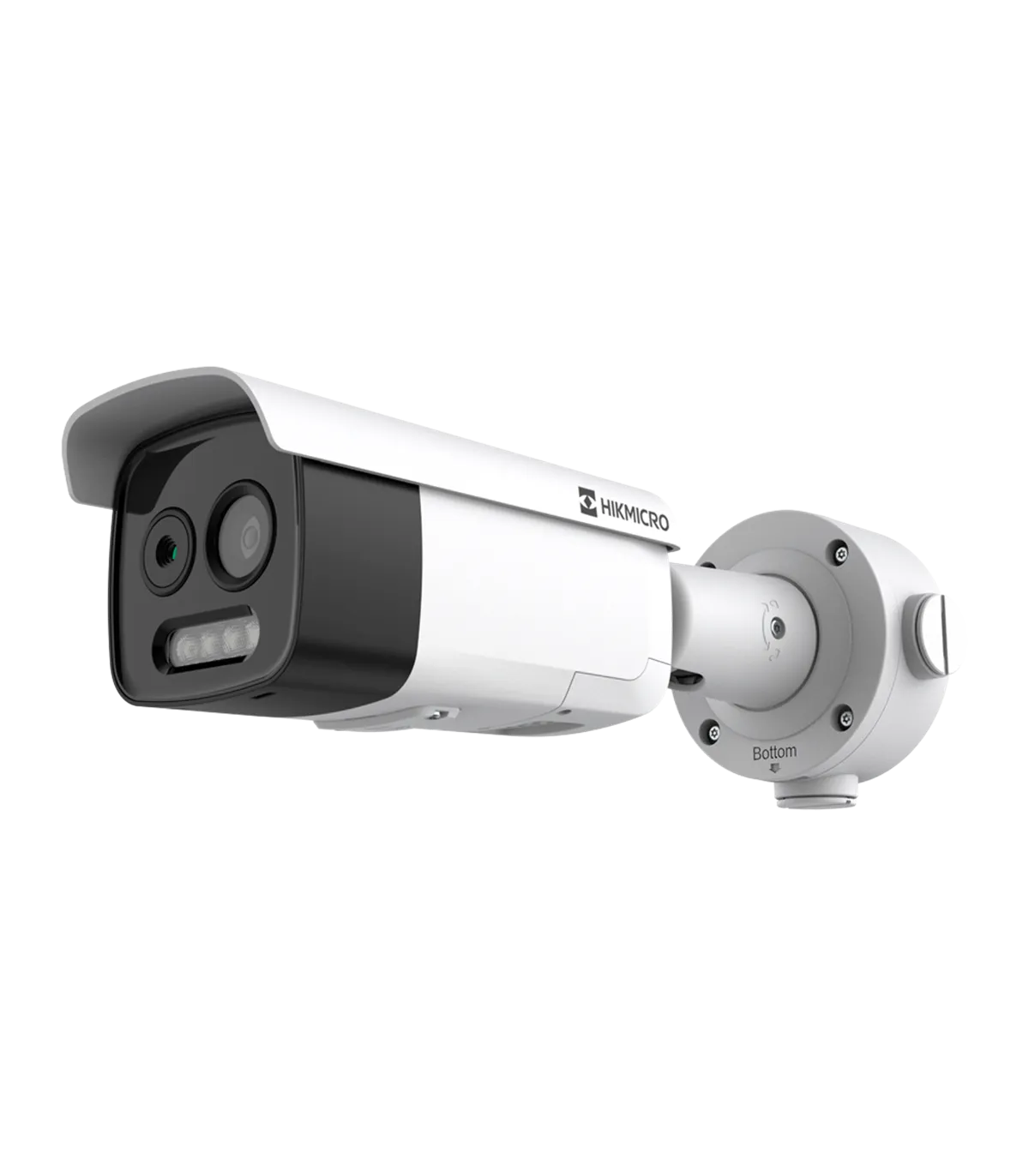

The HM-TD2618-10/G0/T1A is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. This device is ideal for environments requiring both thermal and optical monitoring, providing enhanced security through its fire prevention detection capabilities. With features such as a 5 Megapixel resolution and a temperature measurement range of -20ºC to 150ºC, it is well-suited for critical infrastructure and outdoor settings.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688x1944, 2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 9.7mm (Thermal) / 12.4mm (Visible) |
| DORI | Person: 404m (D), 101m (R), 50m (I) Vehicle: 1239m (D), 310m (R), 155m (I) |
| VCA Ranges | Person: 100m Vehicle: 300m Temperature Measurement (Object 0.2x0.2m): 32.3m Temperature Measurement (Object 0.5x0.5m): 80m Fire Detection (Object 0.5x0.5m): 74.4m Smoker Detection: 14.55m |
| Field of View | Thermal: 18º (H), 13.5° (V) Optical: 24.6° (H), 14° (V) |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Thermal Measurement Range | -20 ~150 ºC / ±8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Internal Storage | MicroSD Card Slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12VDC ± 25%: 1.67A to 2.5A, max. 24W PoE (802.3at, class 4): 42.5V to 57V, 0.56A to 0.42A, max. 24W |
| Operating Temperature | -40ºC ~ +65ºC |
| Protection Grade | IP67 Waterproof, 6000V Surge Protection IK10 Vandal Resistant |
| Dimensions | 349.1mm x 113mm x 105mm |
| Weight | 1710g |
The HM-TD2618-10/G0/T1A is particularly effective in securing large outdoor areas such as warehouses, industrial sites, and critical infrastructure. In a typical deployment, the camera can be mounted on a pole or building, providing a wide coverage area with its 18º thermal field of view. The dual functionality allows for simultaneous monitoring of both thermal and visible spectrums, ensuring comprehensive surveillance. With its fire prevention detection capabilities, it can alert security personnel to potential hazards before they escalate. The camera's remote access features enable operators to monitor live feeds from anywhere, enhancing situational awareness. Additionally, the IP67 waterproof rating ensures reliable performance in various weather conditions, making it a robust choice for outdoor security applications.
