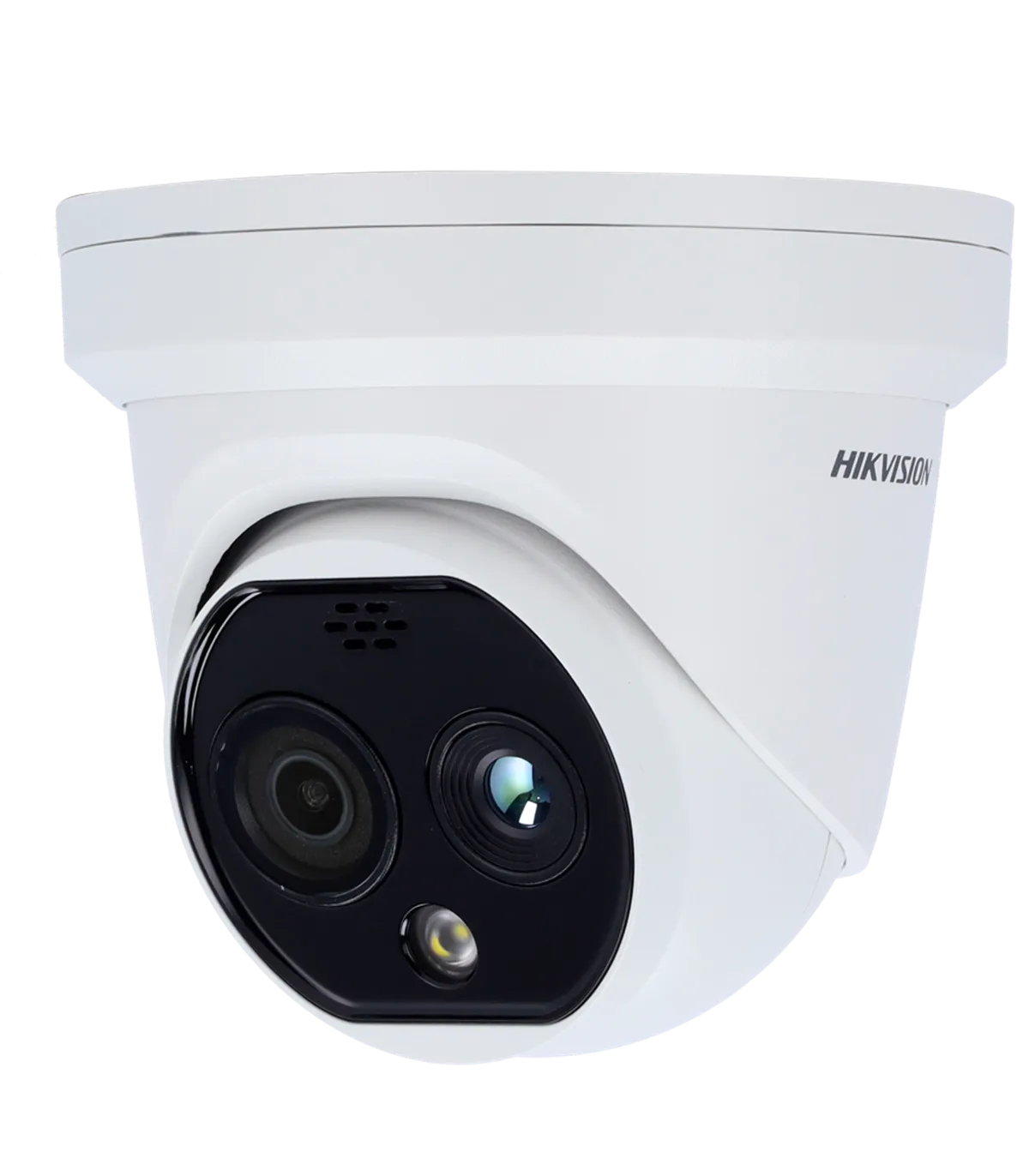

The DS-2TD1217-2/QA is a state-of-the-art dual IP thermal turret camera designed for advanced surveillance applications. This device is ideal for environments requiring temperature measurement and fire prevention detection. With its high-resolution thermal and optical sensors, it provides exceptional visibility and accuracy, making it suitable for both indoor and outdoor installations.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×480, 352x288, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640x480, 352×288, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 1.8 mm (Thermal) / 2 mm (Optical) |
| DRI | Person: 91 m (D), 23 m (R), 11 m (I) Vehicle: 280 m (D), 70 m (R), 35 m (I) |
| VCA Ranges | Person: 10 m Vehicle: 30 m |
| Field of View | Thermal: 90° (H), 66.4° (V) Optical: 119.3° (H), 93.3° (V) |
| Minimum Illumination | Color: 0.0176 Lux @(F2.2, AGC ON) 0 lux with IR |
| Infrared Illumination | IR LEDs Range 15 m |
| Thermal Sensitivity | < 40mK (0.05 º C) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 17 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and flash in the camera White light range up to 30 m |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V, 0.5 A, 6 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP66 Waterproof, 6000 V Surge Protection |
| Dimensions | Ø 138.3 mm x 123.1 mm (H) |
| Weight | 940 g |
The DS-2TD1217-2/QA is particularly effective in industrial settings where monitoring temperature fluctuations is critical. For instance, in a manufacturing plant, this dual IP thermal camera can be deployed to monitor equipment and detect overheating, thus preventing potential fires. The camera's remote monitoring capabilities allow facility managers to access real-time data via a smartphone app or web interface, ensuring prompt action can be taken if anomalies are detected. Additionally, the integrated alarm system with a siren and flash enhances security by deterring unauthorized access. With its IP66 waterproof rating, the camera is suitable for outdoor installations, providing reliable performance in various weather conditions. This makes it an ideal choice for comprehensive surveillance solutions in both commercial and industrial environments.
