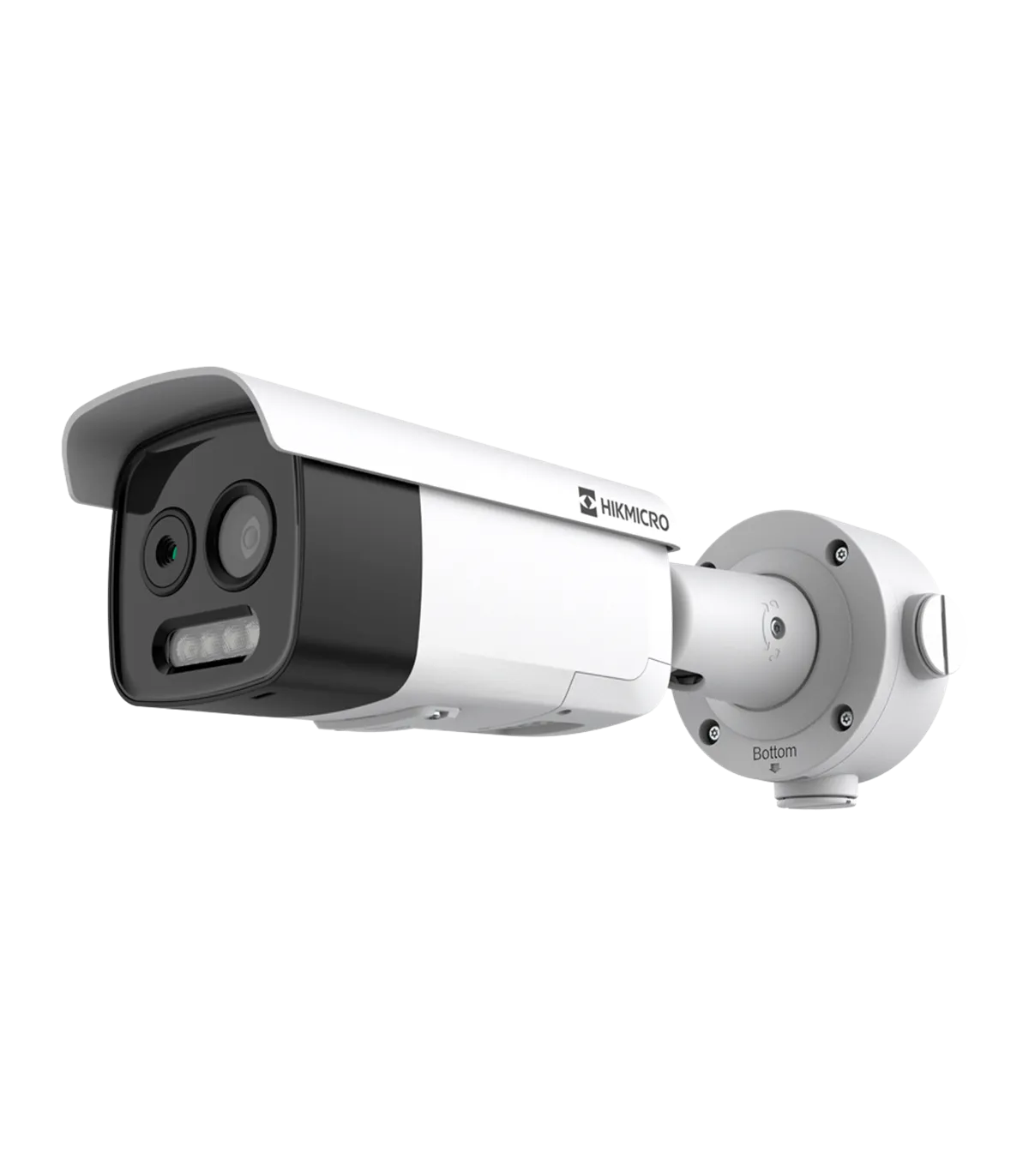

The HM-TD2628-3/G1/T3A is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. Ideal for environments requiring both thermal and optical monitoring, this device excels in fire prevention and temperature measurement. With its robust features, it is perfect for industrial sites, warehouses, and outdoor areas where security is paramount.
| Brand | Hikvision |
| Series | PRO based on GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688x1944, 2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.6mm (Thermal) / 4.3mm (Visible) |
| DORI | Person: 150m (D), 38m (R), 19m (I) Vehicle: 460m (D), 112m (R), 56m (I) |
| VCA Ranges | Person: 36m Vehicle: 90m Temperature Measurement (Object 0.2x0.2m): 11.7m Temperature Measurement (Object 1x1m): 58.3m Fire Detection (Object 0.5x0.5m): 25.8m Smoker Detection: 5.4m |
| Field of View | Thermal: 50° (H), 37.3° (V) Optical: 84° (H), 43.1° (V) |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Internal Storage | MicroSD Card Slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12VDC ± 25%: 1.67A to 2.5A, max. 24W PoE (802.3at, class 4): 42.5V to 57V, 0.56A to 0.42A, max. 24W |
| Operating Temperature | -40ºC ~ +65ºC |
| Protection Grade | IP67 Waterproof, 6000V Surge Protection IK10 Vandal Resistant |
| Dimensions | 349.1mm x 113mm x 105mm |
| Weight | 1710g |
The HM-TD2628-3/G1/T3A is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. With its dual IP thermal and optical capabilities, this camera provides comprehensive surveillance, enabling users to monitor both visible and thermal signatures effectively. The fire prevention detection feature allows for early warning in case of temperature anomalies, making it an essential tool for safety compliance. Additionally, the camera's remote monitoring capabilities through web browsers and mobile applications ensure that security personnel can respond promptly to incidents. The robust IP67 waterproof and IK10 vandal-resistant ratings make it suitable for outdoor installations, ensuring durability in harsh conditions. This camera is a perfect choice for organizations looking to enhance their security measures with advanced technology.
