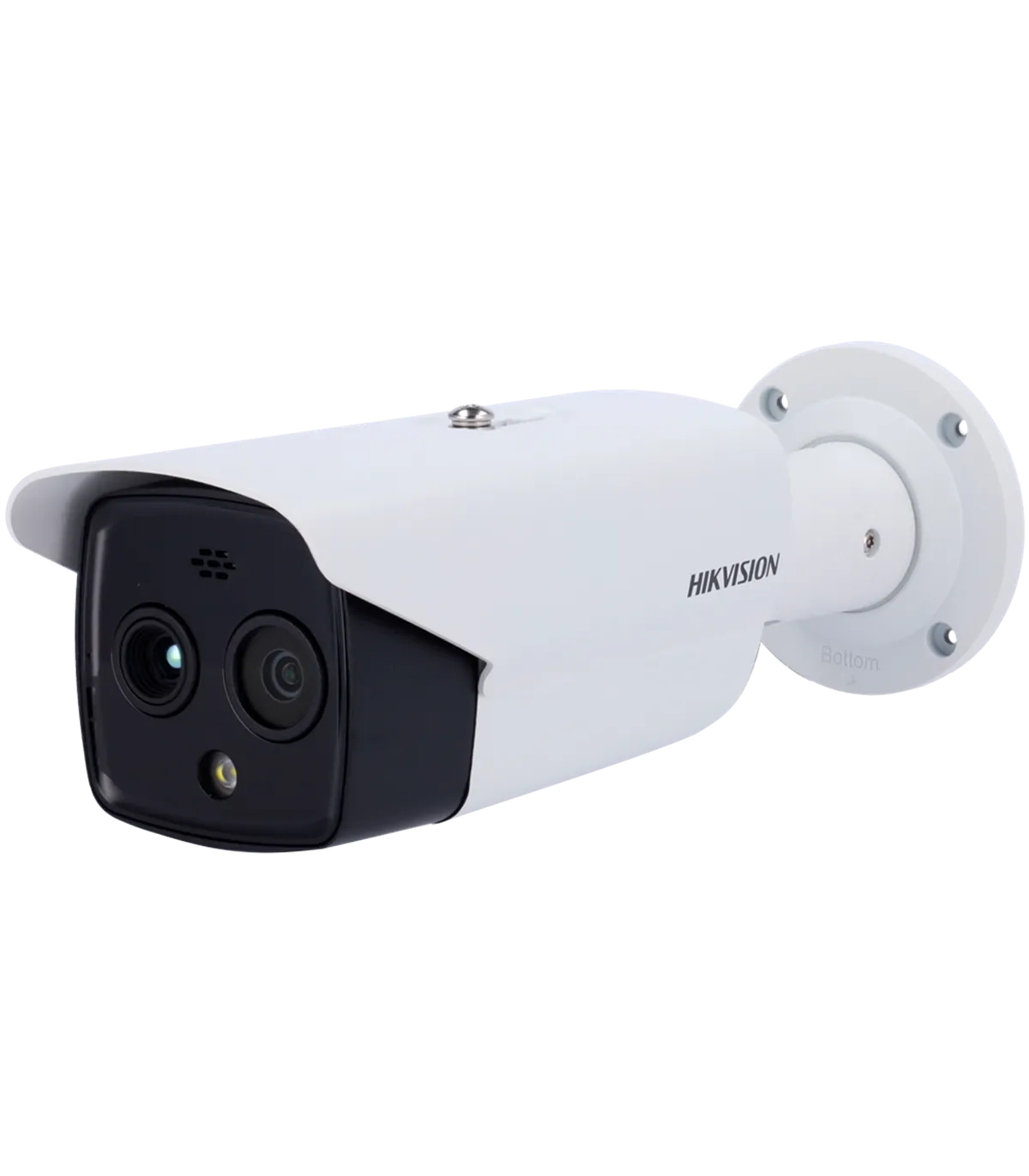

The DS-2TD2628-10/QA is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. Ideal for environments requiring temperature measurement and fire detection, this device integrates thermal and optical imaging capabilities to enhance security monitoring. With its robust features, it is well-suited for industrial sites, warehouses, and critical infrastructure protection.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 9.7 mm (Thermal) / 8 mm (Optical) |
| DORI | Person: 404 m (D), 101 m (R), 50 m (I) Vehicle: 1239 m (D), 310 m (R), 155 m (I) |
| VCA Ranges | Person: 77.6 m Vehicle: 203.7 m Temperature Measurement (Object 0.2x0.2m): 32.3 m Temperature Measurement (Object 1x1m): 161.7 m Fire Detection (Object 0.2x0.2m): 116.4 m |
| Field of View | Thermal: 18° (H), 13.5° (V) Optical: 39.4° (H), 22.1° (V) |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V, 0.8 A, 8.5 W max. DC 12 V, 0.7 A, 8.5 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Rating | IP67 waterproof, 4000 V surge protection |
| Dimensions | 107 mm (H) x 106.1 mm (W) x 321.3 mm (D) |
| Weight | 1550 g |
The DS-2TD2628-10/QA is particularly effective in industrial settings where monitoring temperature and detecting fires are critical. For instance, in a manufacturing plant, this dual IP thermal camera can be strategically placed to monitor machinery and storage areas. With its remote monitoring capabilities, security personnel can receive real-time alerts on temperature fluctuations and potential fire hazards, ensuring a swift response. The camera's high-resolution imaging allows for detailed surveillance, while its IP67 waterproof rating ensures durability in harsh environments. Additionally, the integration of audio alarms and surge protection enhances the overall security system, making it an ideal choice for comprehensive safety solutions.
