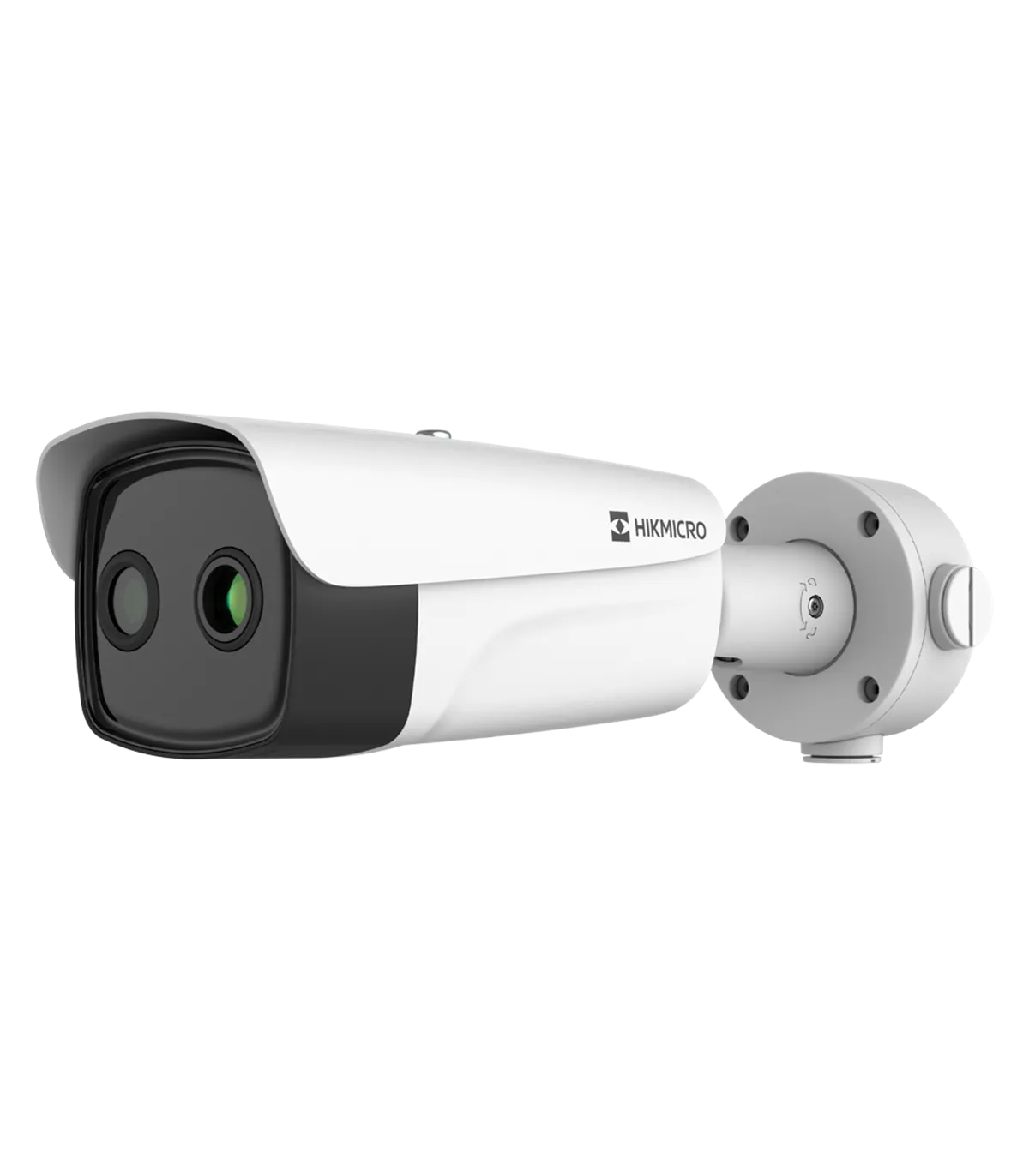

The HM-TD2638-15/G0/T1Y is a cutting-edge dual-spectrum thermal bullet camera designed for advanced surveillance applications. This device is ideal for environments requiring robust security measures, such as industrial sites, warehouses, and critical infrastructure. With its high-resolution thermal imaging and visible light capabilities, it provides comprehensive monitoring solutions, ensuring safety and security in various conditions.
| Brand | Hikmicro |
| Series | TD2638 |
| Thermal Sensor | VOx uncooled FPA |
| Thermal Sensor Resolution | 384 x 288 |
| Pixel Pitch | 12μm |
| Thermal Lens | 15.4mm |
| Thermal Sensitivity | ≤25mK |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Spectral Range | LWIR 8~14μm |
| Thermal Field of View | 17° (H) x 12.8º (V) |
| Visible Sensor | 1/2.7" CMOS |
| Visible Sensor Resolution | 2688 x 1520 (4Mpx) |
| Visible Lens | 8mm |
| Visible Field of View | 39.4° (H) x 22° (V) |
| Infrared Illuminator | Max 75m |
| Bi-spectral Viewing Parameters | Fusion / Picture in picture |
| Main Stream Rate | Thermal: 1280×720, 704x576, 352x288, 384×288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25fps |
| Sub Stream Rate | Thermal: 704x576, 352x288, 384x288 @25fps Visible: 704x576, 352x288 @25fps |
| Compression | H.265 / H.264 |
| VCA | Temperature measurement, intrusion detection |
| Intelligent Analysis | Intrusion, line crossing, area entry, area exit (up to 8 rules) |
| Advanced Intelligent Analysis | Smoker detection, fire detection |
| Temperature Rules | 10 points, 10 areas, and 1 line |
| DRI | Person: 642m (D), 160m (R), 80m (I) Vehicle: 1968m (D), 492m (R), 246m (I) |
| Smart Analysis Ranges | Person: 195m Vehicle: 450m Temperature Measurement (object 0.2x0.2m): 46.2m Temperature Measurement (object 0.5x0.5m): 115.5m Fire Detection (object 0.5x0.5m): 48m |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Internal Storage | SD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote Access | Web Browser, PC VMS Software (HikCentral/iVMS4200) |
| Interoperability | ONVIF, API, SDK |
| Power Supply | 24 VAC ± 25% 12 VDC ± 25% 24 VDC PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.33A to 0.55A, max. 12.1W 12 VDC ± 25%: 0.8A to 1.33A, max. 11.3W PoE (802.3af, class 3): 36V to 57V, 0.33A to 0.21A, max. 11.8W |
| Operating Temperature | -40ºC~+70ºC, <95% RH |
| Protection Rating | IP67 waterproof NEMA 4X IK10 |
| Dimensions | 376.1mm ×119.1mm × 118.1mm |
| Weight | 1.82Kg |
The HM-TD2638-15/G0/T1Y is perfectly suited for deployment in high-security environments such as airports, power plants, and large industrial complexes. In a typical installation, the camera can be mounted on a pole or wall, providing a wide coverage area with its dual-spectrum imaging capabilities. This allows security personnel to monitor both thermal and visible light feeds simultaneously, enhancing situational awareness. The fire prevention and intrusion detection features enable proactive responses to potential threats, while the remote monitoring capabilities allow for real-time surveillance from any location. Additionally, the camera's robust weatherproof design ensures reliable operation in harsh conditions, making it an ideal choice for outdoor applications. With its advanced intelligent analysis features, the HM-TD2638-15/G0/T1Y provides a comprehensive security solution that meets the demands of modern surveillance needs.
