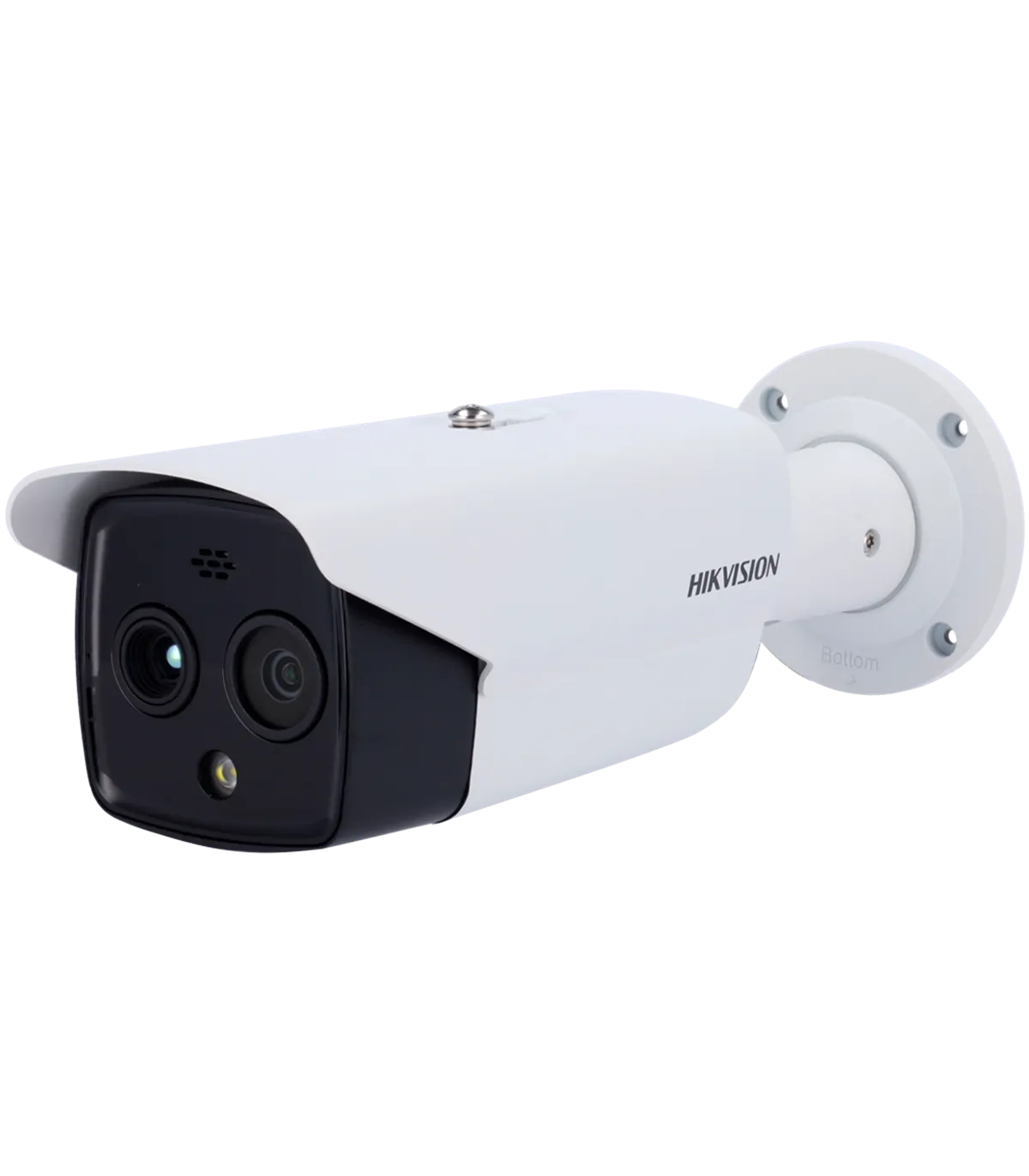

The DS-2TD2628T-7/QA is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. This device is ideal for environments requiring temperature measurement and fire detection, making it suitable for industrial sites, warehouses, and critical infrastructure. With its robust features, including a 256x192 thermal sensor and a 4 Megapixel optical sensor, it ensures high-quality imaging and reliable performance in various lighting conditions.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.9 mm (Thermal) / 6.3 mm (Optical) |
| DORI | Person: 287 m (D), 72 m (R), 36 m (I) Vehicle: 881 m (D), 220 m (R), 110 m (I) |
| VCA Ranges | Person: 55.2 m Vehicle: 144.9 m Temperature Measurement (Object 0.2x0.2m): 23.3 m Temperature Measurement (Object 1x1m): 116.7 m Fire Detection (Object 0.2x0.2m): 82.8 m |
| Field of View | Thermal: 24.9° (H), 18.7° (V) Optical: 53° (H), 28° (V) |
| Thermal Sensitivity | < 40mK (0.05 º C) |
| Thermal Measurement Range | -20 ~550 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V, 0.8 A, 8.5 W max. DC 12 V, 0.7 A, 8.5 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Rating | IP67 waterproof, 4000 V surge protection |
| Dimensions | 107 mm (H) x 106.1 mm (W) x 321.3 mm (D) |
| Weight | 1550 g |
The DS-2TD2628T-7/QA is particularly effective in industrial settings where monitoring temperature fluctuations is critical. For instance, in a manufacturing plant, this camera can be deployed to monitor equipment and prevent overheating, ensuring operational efficiency. The remote monitoring capabilities allow facility managers to receive alerts on temperature anomalies, enhancing safety protocols. Additionally, the camera's fire detection feature can trigger alarms, providing an early warning system that can save lives and property. With its IP67 waterproof rating, it can withstand harsh environmental conditions, making it suitable for outdoor installations. The integration of ONVIF compatibility ensures seamless integration with existing security systems, providing a comprehensive surveillance solution.
