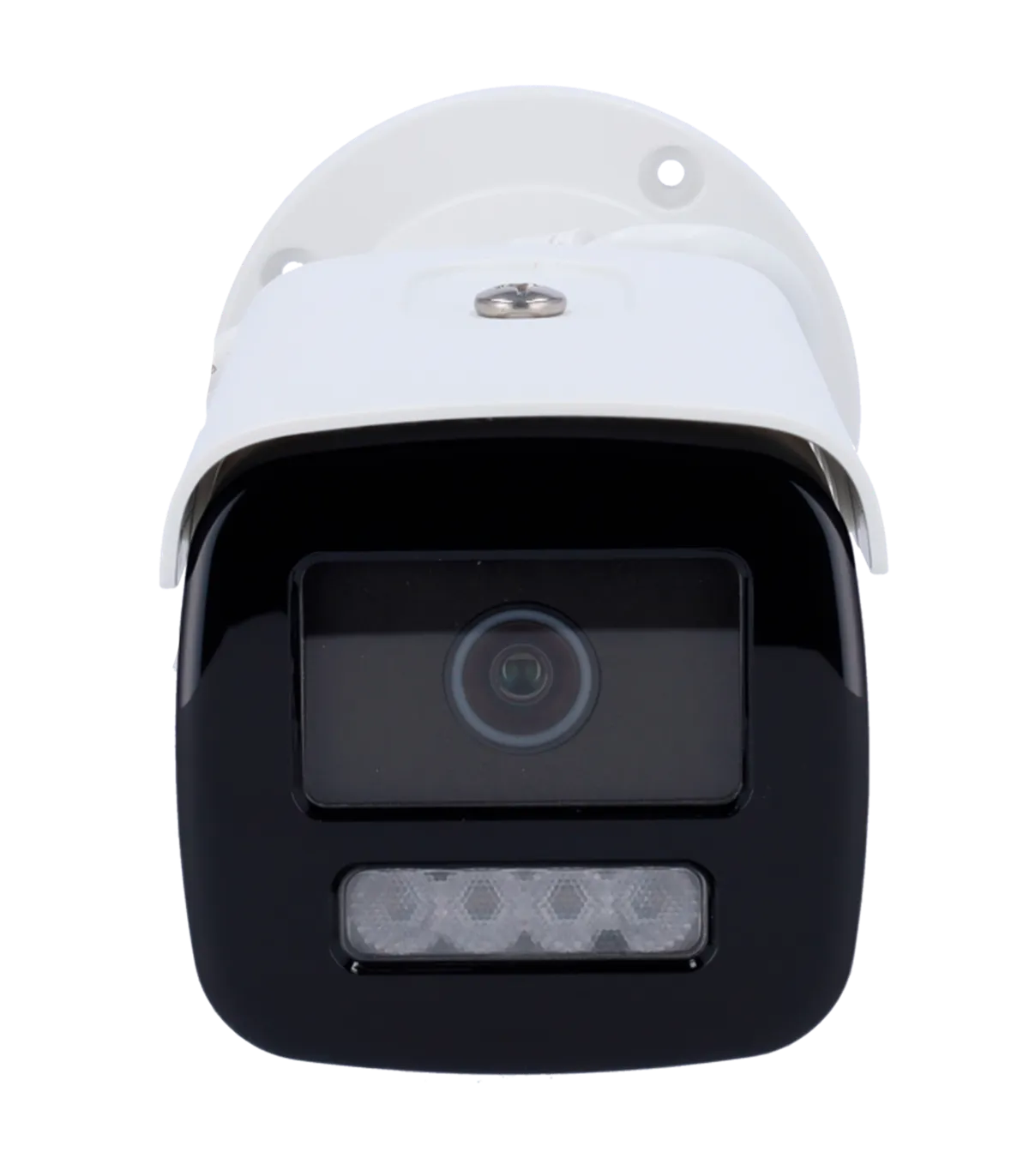

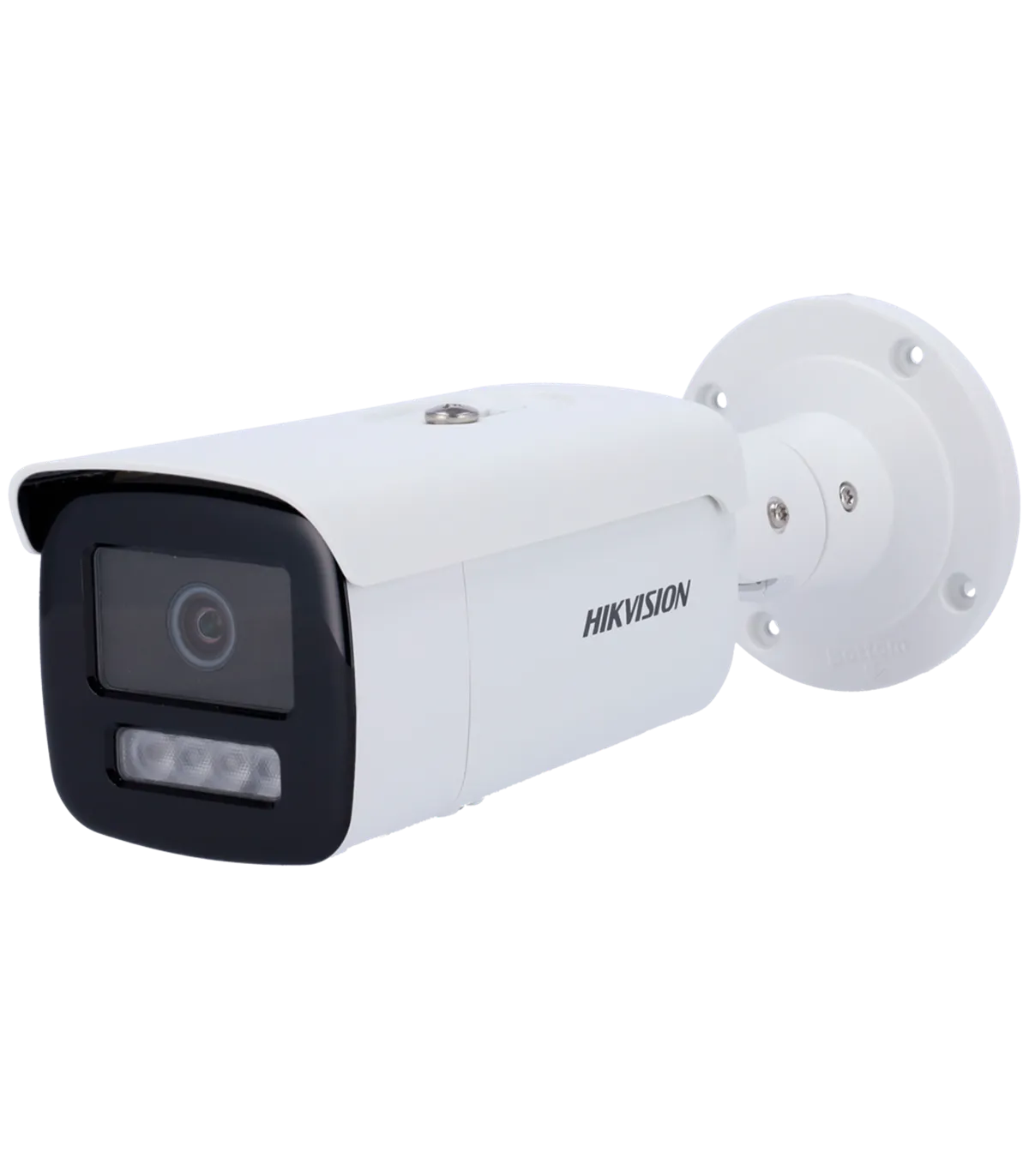

The DS-2CD2T86G2H-4I(4mm)(eF) is a high-performance IP bullet camera designed for advanced surveillance applications. It is ideal for both indoor and outdoor environments, providing exceptional image quality and reliability. With its 8 Megapixel resolution and low light capabilities powered by DarkFighter technology, this camera ensures clear visibility even in challenging lighting conditions. The device is equipped with features such as motion detection and facial recognition, making it a perfect choice for security professionals looking to enhance their surveillance systems.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 90°, V: 45.8°, D: 109.4° |
| DORI | 109 m (D), 43 m (O), 21 m (R), 10 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 80 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 380 mA / 10 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 93.3 mm (W) x 91.2 mm (H) x 286.7 mm (D) |

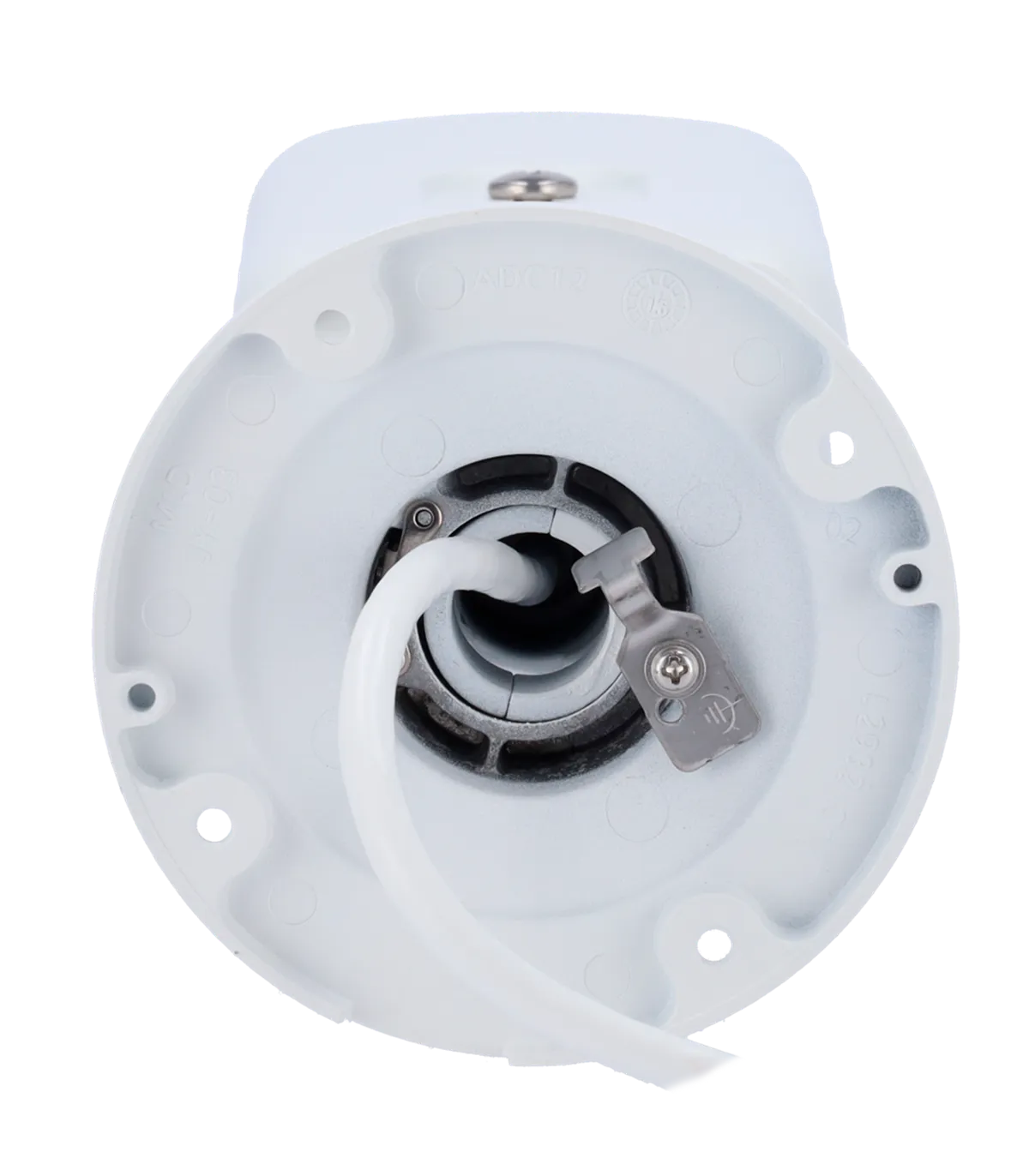

| Base Dimensions | Ø base 105 mm / Ø screw hole distance 89 mm / 4 screws |
| Weight | 1180 g |
The DS-2CD2T86G2H-4I(4mm)(eF) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. In a retail environment, this camera can be strategically placed at entrances and checkout areas to monitor customer activity and deter theft. With its high-resolution imaging and low light performance, it captures clear footage even in dimly lit conditions. The motion detection feature allows for real-time alerts, enhancing security by notifying staff of any suspicious activity. Additionally, the camera's facial recognition capabilities can be utilized to identify known shoplifters or unauthorized individuals. For installers, the plug-and-play setup simplifies the installation process, while the remote monitoring options via smartphone apps provide flexibility and convenience for end users. Overall, the DS-2CD2T86G2H-4I(4mm)(eF) offers a comprehensive solution for effective surveillance and security management.
