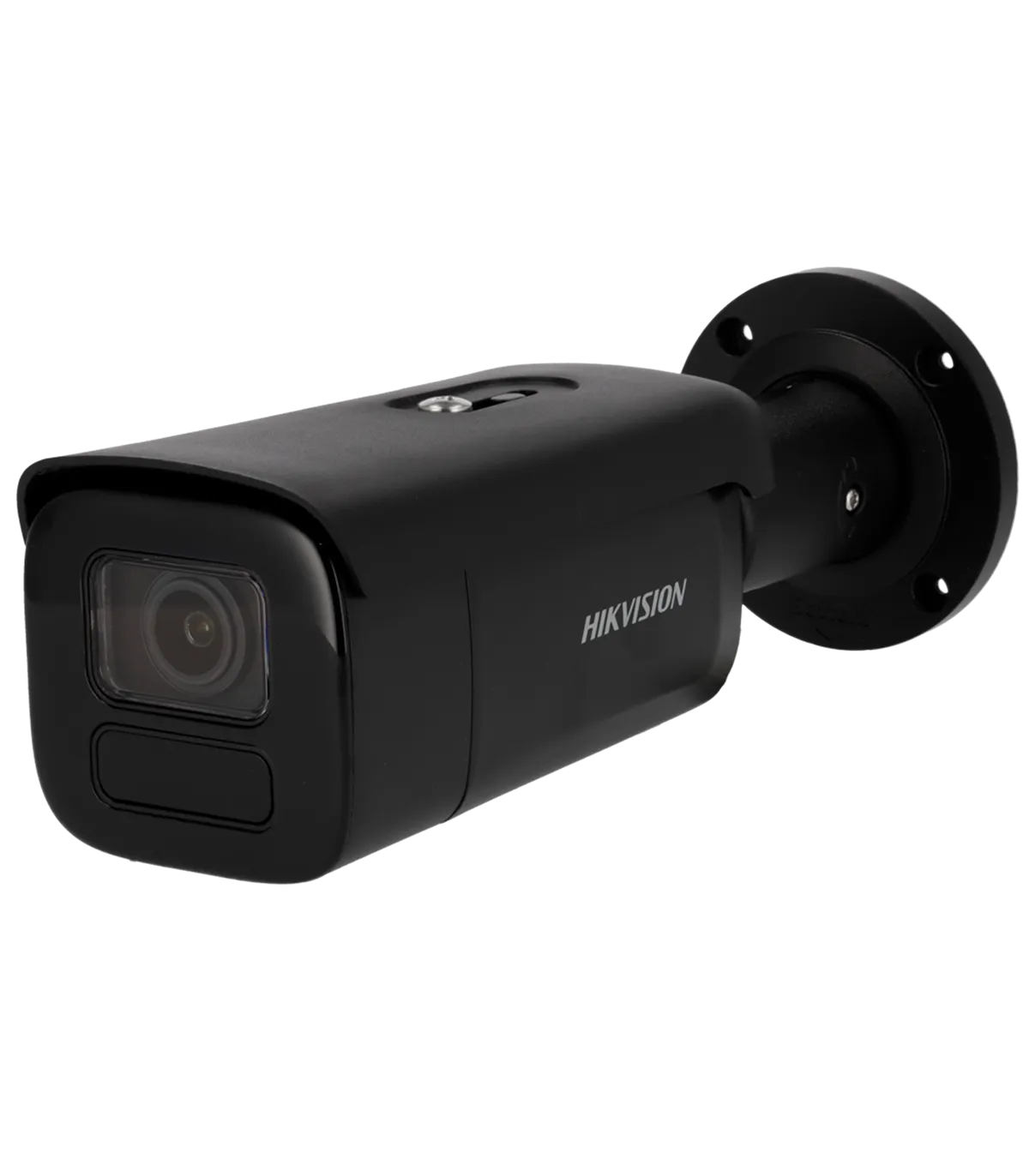

The DS-2CD2646G2HT-IZS(2.8-12)/eF//BLK is a high-performance IP bullet camera designed for outdoor surveillance. It is ideal for monitoring large areas such as parking lots, building perimeters, and public spaces. With its advanced features, including 4 Megapixel resolution and low light capabilities powered by Darkfighter technology, this camera ensures clear images even in challenging lighting conditions. The device also supports smart detection features, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 105.4~34.3°, V: 56.1~19.3°, D: 125.8~39.4° |
| DORI | 63.4~180.6 m (D), 25.2~71.7 m (O), 12.7~36.1 m (R), 6.3~18.1 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light (Powered by DarkFighter) Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 1080 mA / 13 W max. / PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1490 g |
| Color | Black |
The DS-2CD2646G2HT-IZS(2.8-12)/eF//BLK is perfect for a variety of surveillance applications, particularly in urban environments where security is paramount. For instance, a shopping mall can deploy this camera to monitor entrances and exits, ensuring the safety of patrons. With its motorized varifocal lens, installers can easily adjust the field of view to cover specific areas of interest. The camera's low light performance allows for effective monitoring even at night, while the IR capabilities provide visibility up to 60 meters in complete darkness. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between humans and vehicles, making it an ideal choice for busy locations. This camera's robust IP67 rating ensures durability against harsh weather conditions, making it suitable for outdoor installations.
