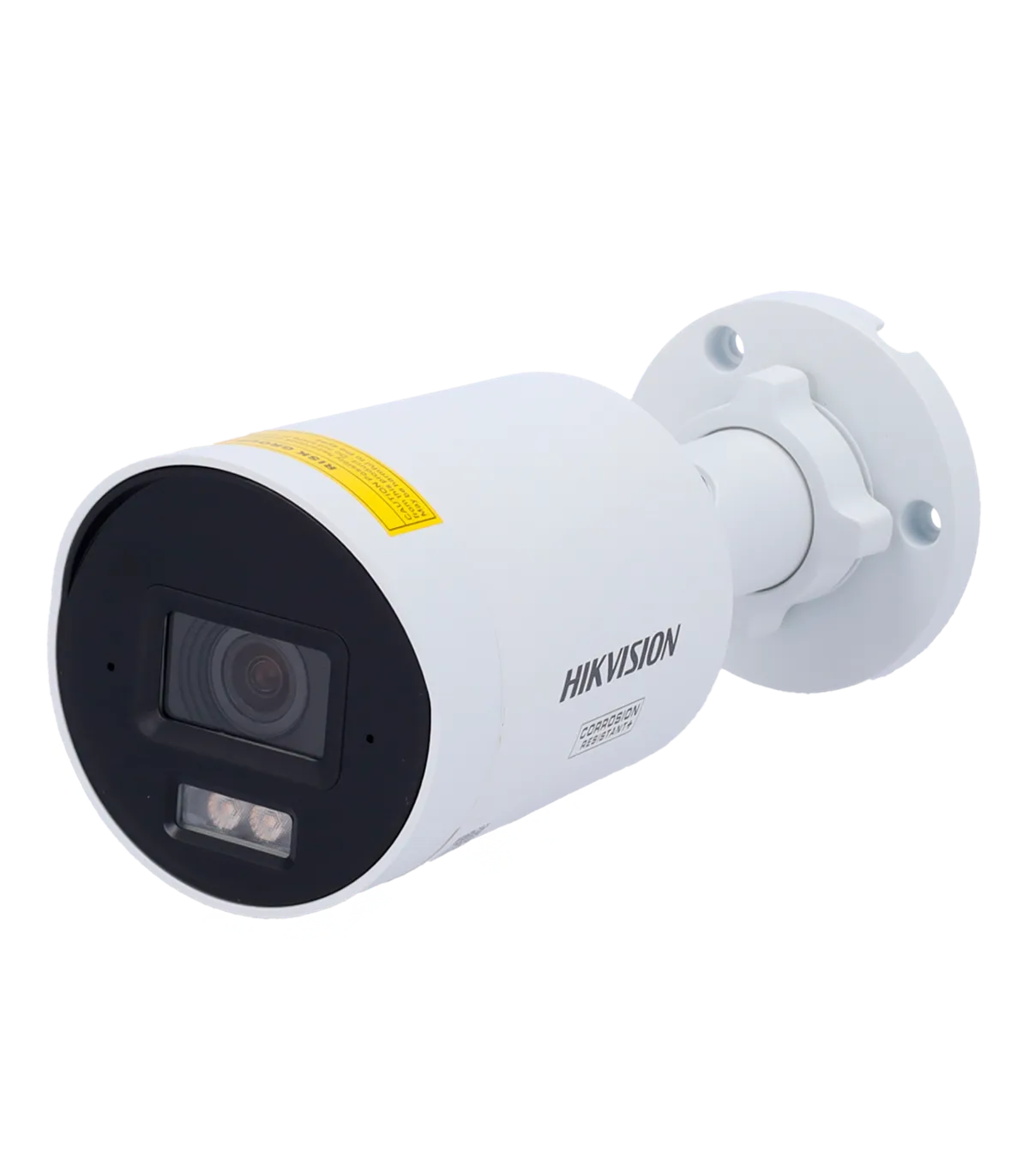

The DS-2CD2043G2-LIZ2UY(2.8/4mm) is a high-performance IP bullet camera designed for outdoor surveillance applications. With its advanced 4 Megapixel resolution and dual lens options of 2.8mm and 4mm, this camera is ideal for monitoring large areas while providing clear and detailed images. It features hybrid illumination capabilities, allowing for effective night vision up to 40 meters, making it suitable for various lighting conditions. The camera is equipped with intelligent features such as AcuSense technology for enhanced motion detection, ensuring reliable security monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual lens options of 2.8/4 mm |
| Field of View (FOV) | H: 99.3/80°, V: 54.8/44.1°, D: 120.2/94° |
| DORI | 66.6/79.2 m (D), 26.4/31.4 m (O), 13.3/15.8 m (R), 6.7/7.9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, 3D-DNR, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1 A / 12 W max. PoE+ IEEE802.3at |
| Protection Grade | Waterproof IP67 Corrosion protection NEMA 4X |
| Operating Temperature | -30º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 74.4 mm x 176.3 mm (Fo) |
| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 515 g |
The DS-2CD2043G2-LIZ2UY(2.8/4mm) camera is perfect for a variety of outdoor surveillance scenarios, such as monitoring parking lots, building perimeters, or retail environments. Installers can easily set up this plug-and-play device, which supports remote monitoring via web browsers and mobile applications. The camera's hybrid illumination feature ensures clear visibility even in low-light conditions, while the AcuSense technology significantly reduces false alarms by accurately distinguishing between humans and vehicles. This makes it an ideal choice for businesses looking to enhance their security without unnecessary interruptions. Additionally, the camera's robust IP67 waterproof rating and NEMA 4X corrosion protection ensure reliable performance in various weather conditions, making it a durable solution for long-term use.
