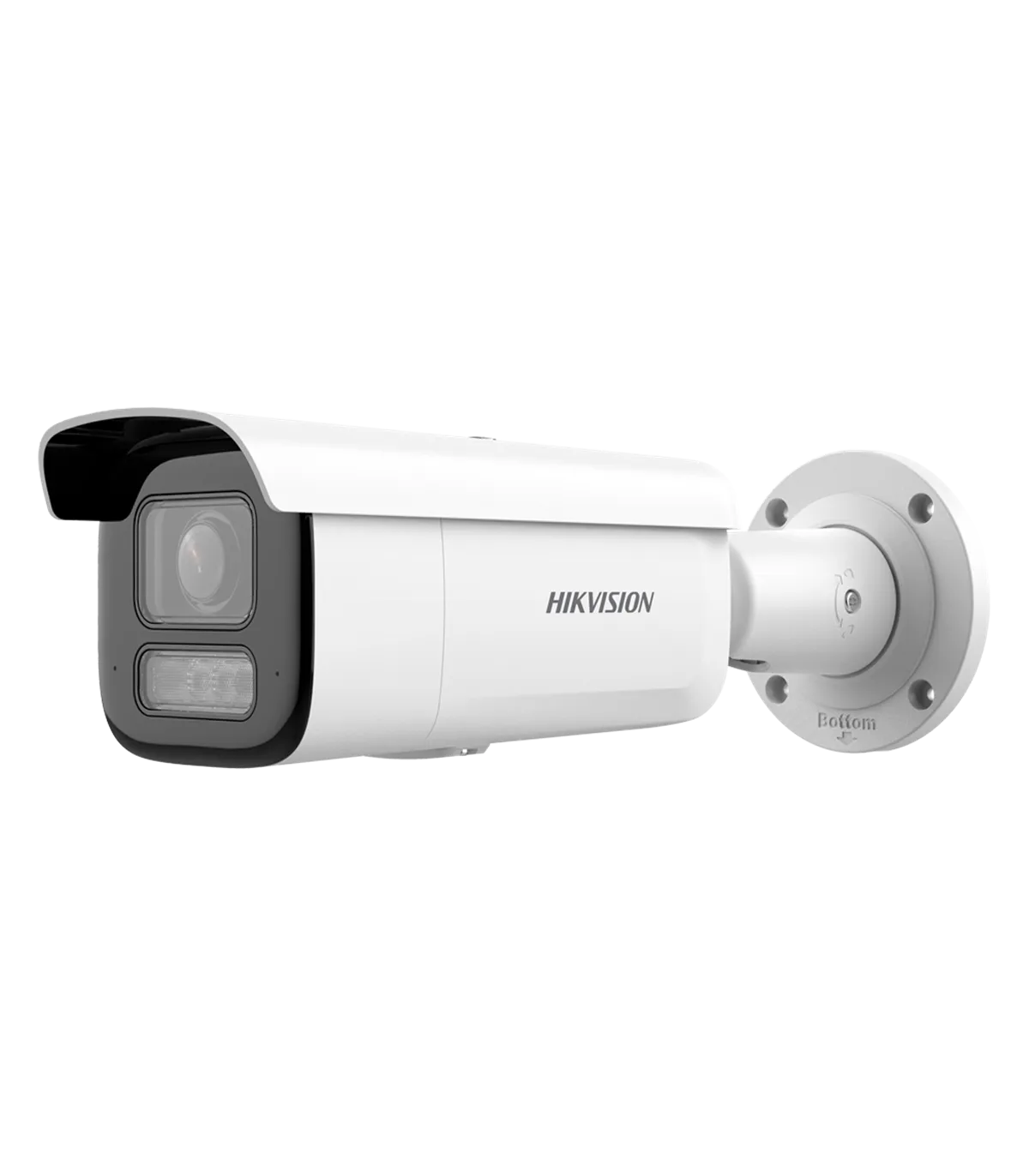

The DS-2CD2663G2-LIZS2U/SL is a high-performance IP bullet camera designed for advanced surveillance applications. With its 6 Megapixel resolution and varifocal motorized lens ranging from 2.8 to 12 mm, this camera is ideal for both indoor and outdoor environments, providing exceptional image clarity and detail. The device features hybrid illumination with both IR and white light capabilities, ensuring visibility even in complete darkness up to 60 meters. Its robust design includes IP67 waterproof and IK10 vandal-proof ratings, making it suitable for challenging conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.3~35°, V: 53.9~19.7°, D: 122.9~40.1° |
| DORI | 75.3~201 m (D), 29.9~79.8 m (O), 15.1~40.2 m (R), 7.5~20.1 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 60 m |
| Supplementary Illumination | Hybrid light: IR and white light IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated deterrent white light |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. PoE+ IEEE802.3at |
| Protection Rating | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw holes 89 mm / 4 screws |
| Weight | 1531 g |
The DS-2CD2663G2-LIZS2U/SL is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer traffic and deter theft. With its high-resolution imaging and advanced motion detection capabilities, it can effectively capture detailed footage of any suspicious activity. The hybrid illumination feature ensures that the camera remains operational even in low-light conditions, providing 24/7 surveillance. Additionally, the remote access functionality allows store managers to monitor live feeds from their smartphones, enhancing security management. The integration of AcuSense technology further reduces false alarms, ensuring that security personnel can focus on genuine threats. Overall, the DS-2CD2663G2-LIZS2U/SL offers a comprehensive solution for effective surveillance and security monitoring.
