The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by delivering full-color images even in low-light environments. This device is ideal for applications requiring enhanced visibility and detail without additional lighting. With its advanced sensor technology and wide aperture lenses, it captures more light, ensuring superior clarity. The integration of HikAI-ISP optimizes visual quality by reducing noise and enhancing sharpness in challenging conditions. Additionally, the AcuSense 3.0 technology allows for precise detection of humans and vehicles, making it a perfect choice for security installations. The device also features Audio 2.0 for more efficient communication.
The Pro Series with ColorVu 3.0 from Hikvision redefines video surveillance with full-color images, even in low-light environments. Thanks to its advanced sensor and lens technology with a super aperture, it captures more light to provide greater clarity and detail without the need for additional lighting. It incorporates HikAI-ISP, an intelligent image processor that optimizes visual quality, reducing noise and enhancing sharpness in challenging conditions.
In the realm of intelligence, AcuSense 3.0 enables precise detection of humans and vehicles. It also features Audio 2.0 for more efficient communication.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111°, V: 57.6°, D: 138.5° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color image with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of greater static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and white light up to 30m |
| Day/Night | Auto / Manual / Programmable |

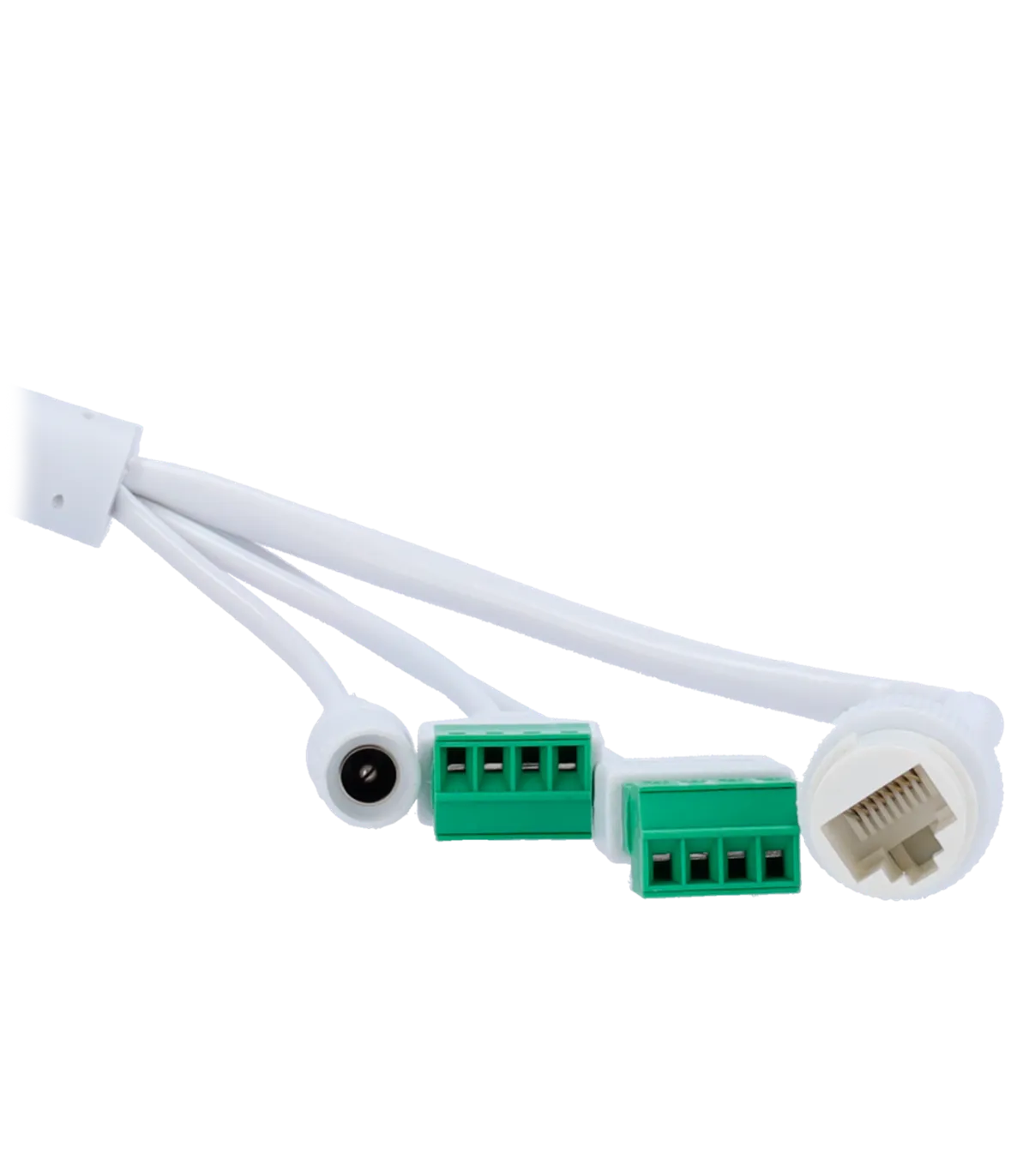

| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) 1 Input / 1 Output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently enter the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for search functionality) |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100M BaseT |
| Alarms | 1 Input / 1 Output |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 600mA / 7.2W max. / PoE IEEE802.3af |
| Protection Rating | IP67 waterproof, IK10 vandal-proof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 121.5 mm (Ø) x 97.6 mm (H) |

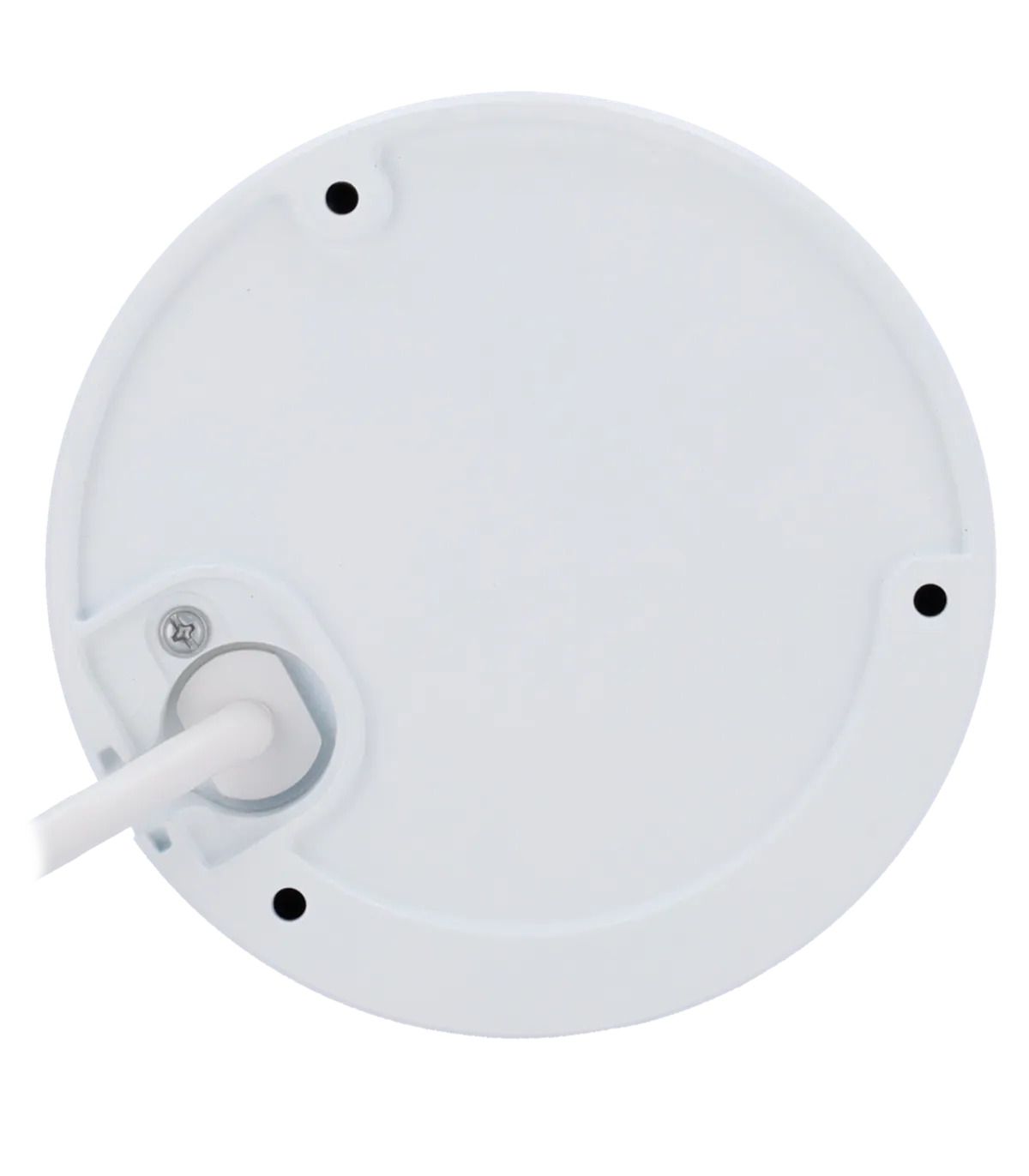

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104 mm / 3 screws |
| Weight | 600 g |
In a typical deployment scenario, the DS-2CD2147G3-LIS2UY(2.8mm) camera can be installed in retail environments to enhance security and monitoring capabilities. With its 24/7 color imaging and advanced motion detection, store owners can effectively monitor customer activity and deter theft. The integrated dual microphone allows for clear audio communication, which is essential for addressing incidents in real-time. Additionally, the IP67 waterproof and IK10 vandal-proof ratings ensure that the camera remains operational in various weather conditions and is resistant to tampering. The remote access feature enables store managers to monitor live feeds from anywhere, providing peace of mind and enhancing overall security management.
