- Value Range IP Bullet Camera
- Resolution 6 MP (3632x1632)
- Dual Lens 2.8 mm panoramic view
- Hybrid Light range 30 m | ColorVu
- Integrated microphone | Siren and red/blue flash
- Motion detection 2.0 | MicroSD | PoE | IP67
Description & Key Features: DS-2CD1T67G2HP-LIUF/SRB(2.8mm)

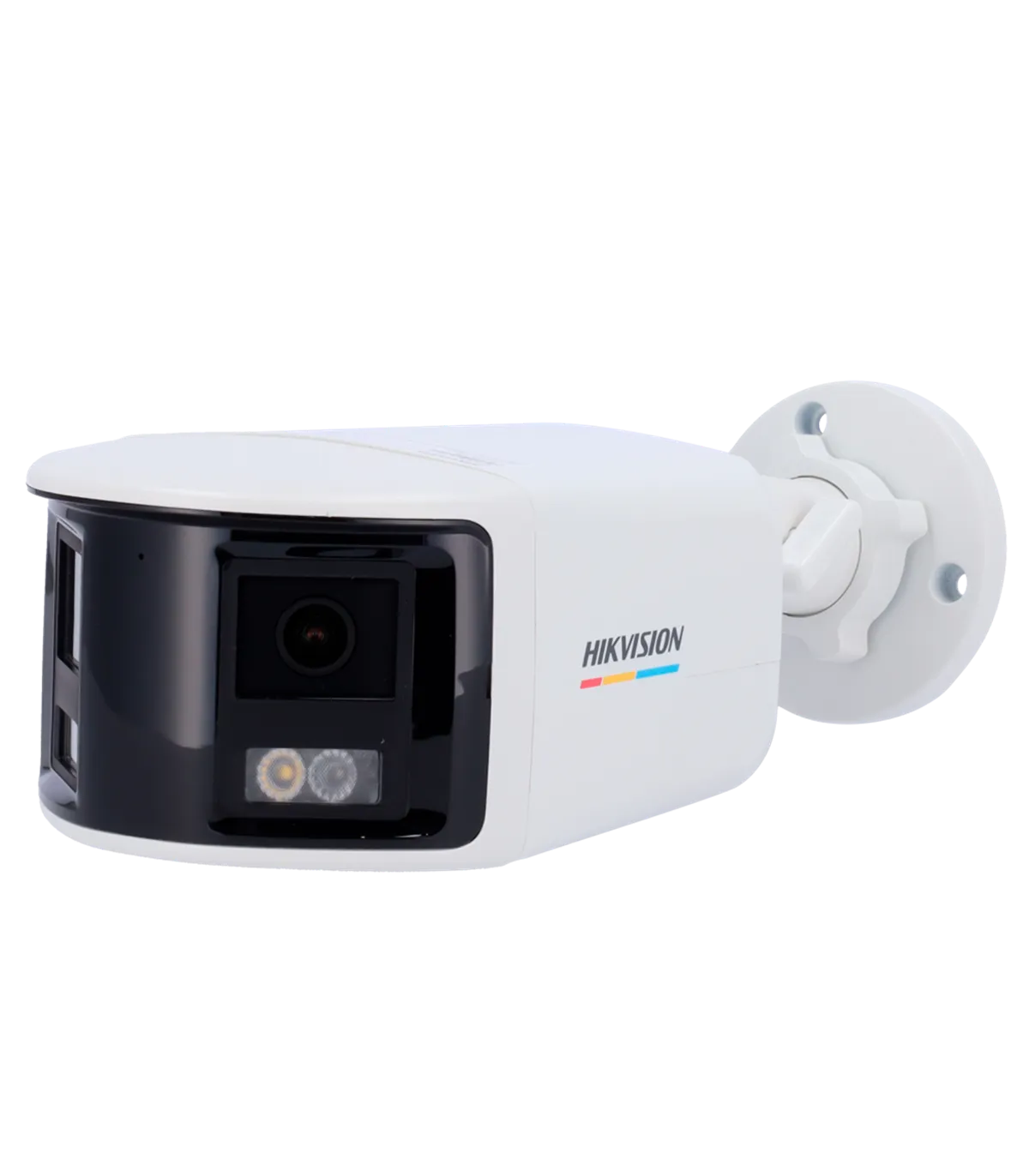

The DS-2CD1T67G2HP-LIUF/SRB(2.8mm) is a high-performance IP bullet camera designed for comprehensive surveillance solutions. It is ideal for both indoor and outdoor environments, providing exceptional 180-degree panoramic vision and advanced features for enhanced security. This camera is equipped with ColorVu technology, ensuring vivid color images even in low-light conditions, making it suitable for 24/7 monitoring. With its robust design and IP67 waterproof rating, it can withstand harsh weather conditions, making it a reliable choice for various applications.
- Hikvision
- Value Series
- IP Bullet Camera
- 1/2.5" Progressive Scan CMOS
- 6 Megapixel (3632x1632)
- Dual Lens 2.8 mm
- 180º Panoramic View
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- ColorVu: Color Image 24 Hours
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- WDR (120 dB)
- 3D-DNR
- Integrated Microphone and Speaker
- Integrated Red and Blue Light Flash and Siren
- MicroSD Slot up to 512 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Specifications: DS-2CD1T67G2HP-LIUF/SRB(2.8mm)
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3632x1632) |
| Main Stream Rate | 20 fps (3632x1632) |
| Extra Stream Rate | 20 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Dual Lens 2.8 mm |
| Field of View (FOV) | H: 180°, V: 79° |
| DORI | 44 m (D), 17 m (O), 8 m (R), 4 m (I) |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: Color Image 24 Hours |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Deterrent Alarm | Integrated red/blue light flash and siren in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 830 mA / 10 W max. PoE IEEE802.3af |
| Protection Grade | Waterproof IP67 |
| Material | Cover: Metal Body: Plastic Bracket: Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 103.6 mm (W) x 76 mm (H) x 234.5 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 560 g |
Package Contents
- Hikvision Value IP Bullet Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD1T67G2HP-LIUF/SRB(2.8mm) camera is perfect for a variety of surveillance applications, such as monitoring retail stores, parking lots, and residential areas. Its 180-degree panoramic view allows for extensive coverage, reducing the number of cameras needed for complete surveillance. The ColorVu technology ensures that users receive clear, color images even in low-light conditions, enhancing security during nighttime. Additionally, the integrated microphone and speaker facilitate two-way audio communication, making it easier to interact with individuals on-site. The camera's IP67 waterproof rating ensures durability in outdoor environments, while the remote access capabilities allow users to monitor their property from anywhere using a smartphone or web browser. This combination of features makes the DS-2CD1T67G2HP-LIUF/SRB(2.8mm) an excellent choice for those seeking reliable and effective surveillance solutions.
Data sheet
- Brand
- HIKVISION
- Resolution
- 6 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- Micrófono / Altavoz disuasorio
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS
Specific References
- EAN13
- 6936422120788
