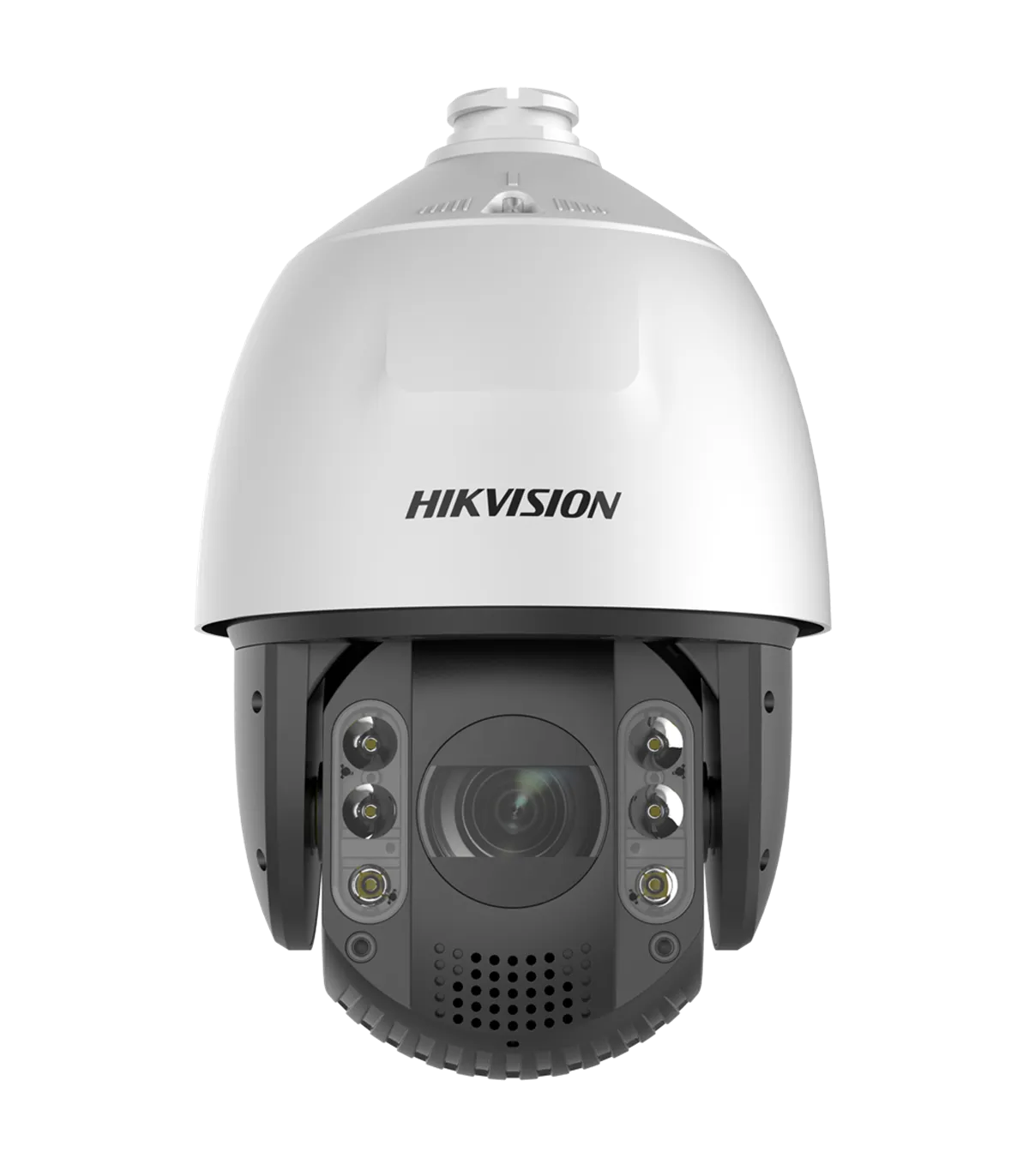

The DS-2DE7A232IW-AEB(T5) is a high-performance IP PTZ camera designed for advanced surveillance applications. It excels in low-light conditions, making it ideal for environments requiring 24/7 monitoring. With its robust features, including a powerful 32X optical zoom and intelligent motion detection capabilities, this camera is perfect for both commercial and residential security systems.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Minimum Illumination | Ultra Low Light (Powered by DarkFighter) Color: 0.005 Lux @ (F1.6, AGC ON) Black and White: 0.001 Lux @ (F1.6, AGC ON) / 0 lux with IR LEDs up to 200 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optics | Motorized Varifocal 4.8~153 mm (32X Optical Zoom) |
| Field of View (FOV) | 50.8~2.6º (H), 29.4~1.5º (V), 57.4~3º (D) |
| DORI | 2200 m (D), 873 m (O), 440 m (R), 220 m (I) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/30,000 s |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Face Capture Up to 5 faces simultaneously. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Auto-Tracking | Yes |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -15°~90° auto flip |
| Manual Speed | Horizontal: 0.1~160 °/s, Vertical: 0.1~120 °/s |
| Preset Speed | Horizontal: 240°/s, Vertical: 200°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Alarms | 2 inputs / 1 output |
| Audio | 1 input (Line In) / 1 output (Line Out) Integrated Speaker |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
| PTZ Control | Via network access |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V / 42 W max. / PoE+ IEEE802.3at |
| Operating Temperature | -30º C ~ +65º C |
| Material | ADC12 |
| Protection Rating | IP66 Waterproof / IK10 Vandal Resistant / Surge Protection 6000 V |
| Dimensions (without mount) | Ø 220 mm x 363.3 mm (H) |
| Weight (without mount) | 5000 g |
The DS-2DE7A232IW-AEB(T5) is ideally suited for large-scale surveillance projects, such as shopping malls, parking lots, and industrial sites. Its 360° pan and 90° tilt capabilities allow for comprehensive coverage of expansive areas, ensuring no blind spots. The camera's AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle movements, making it an excellent choice for busy environments. Additionally, the 32X optical zoom enables operators to focus on specific areas of interest, enhancing situational awareness. With its IP66 waterproof and IK10 vandal-resistant ratings, this camera is built to withstand harsh conditions, ensuring reliable performance in any environment. The integration of remote monitoring capabilities through web browsers and mobile applications further enhances its usability, making it a preferred choice for security professionals.
