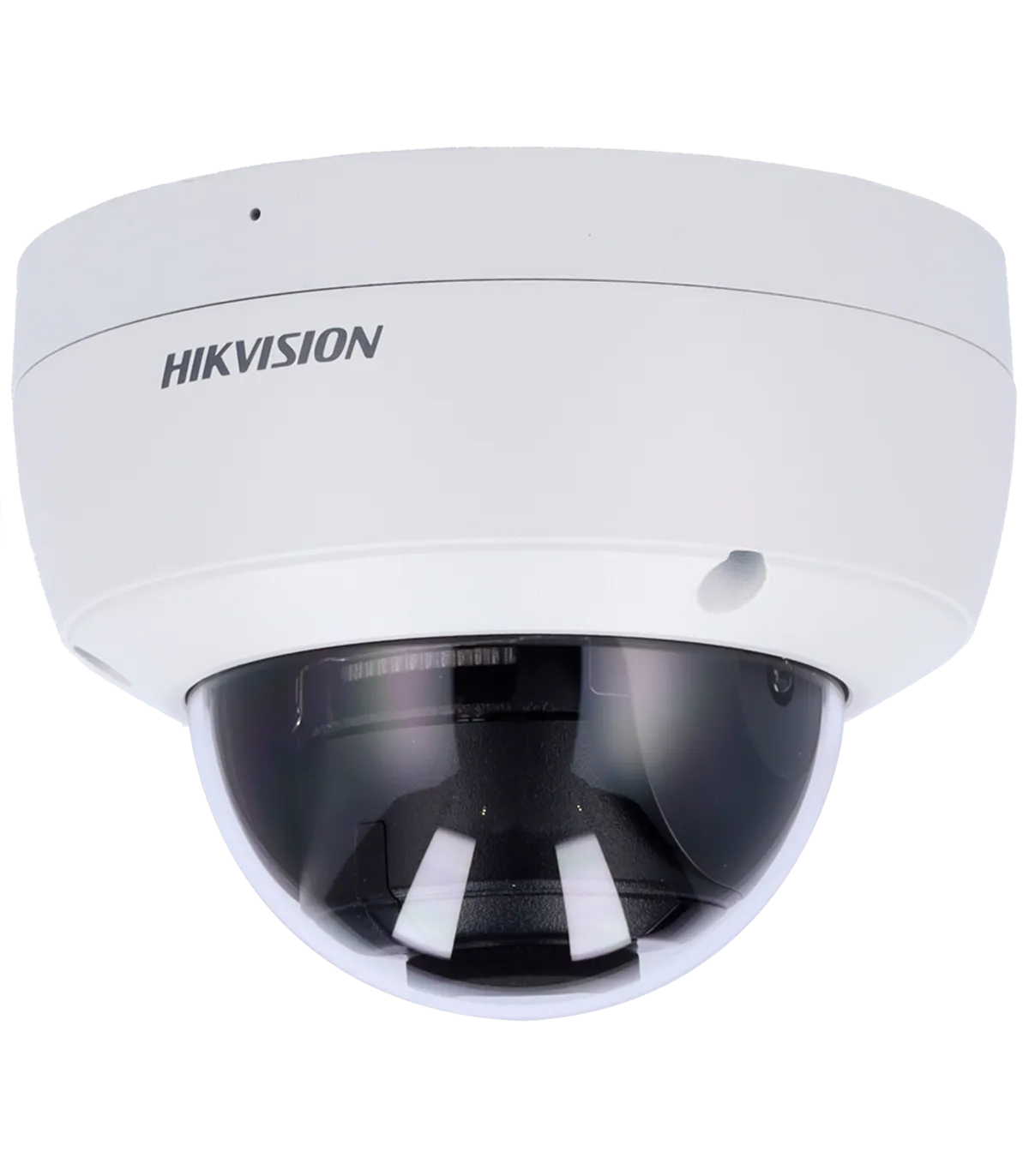

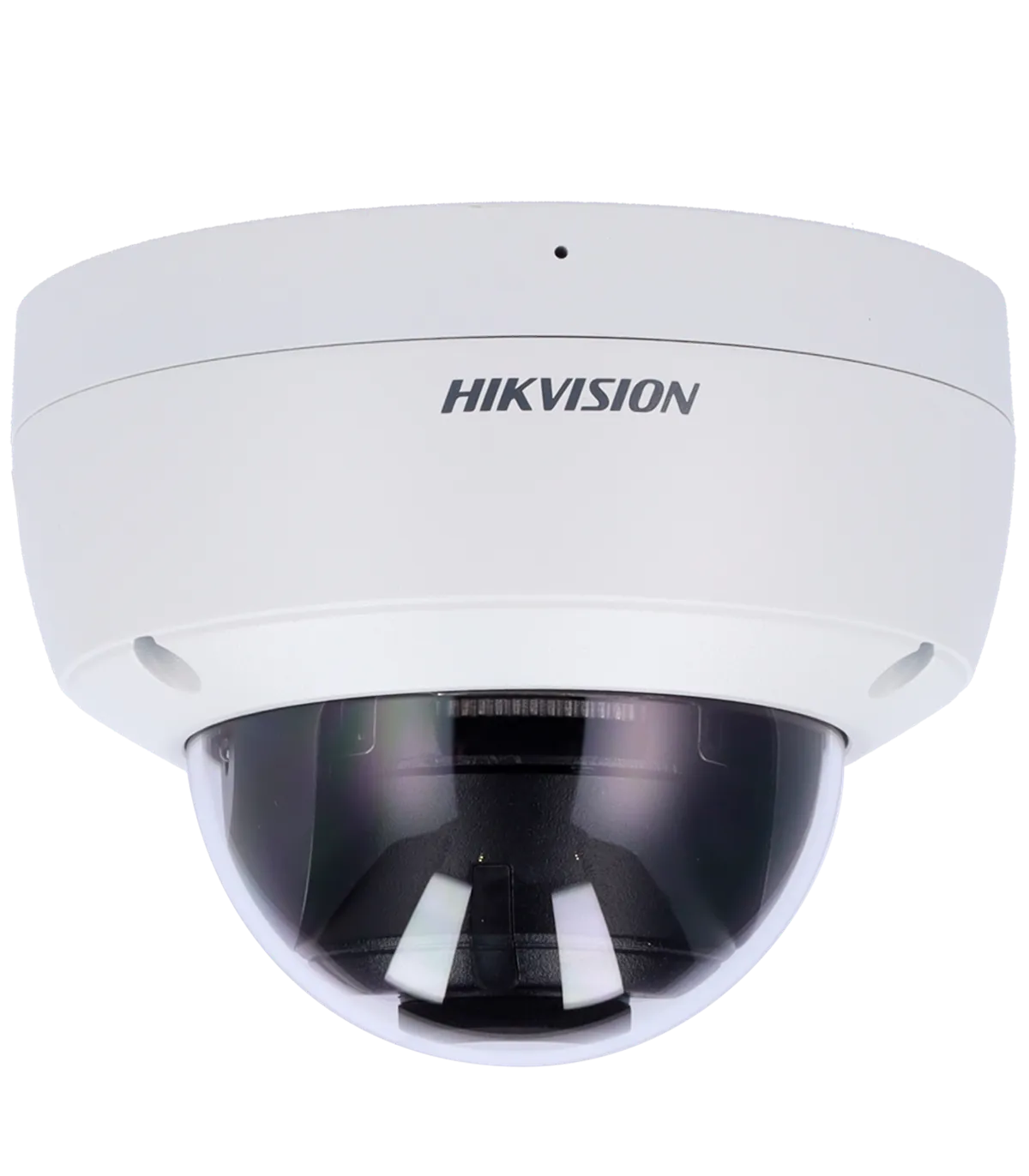

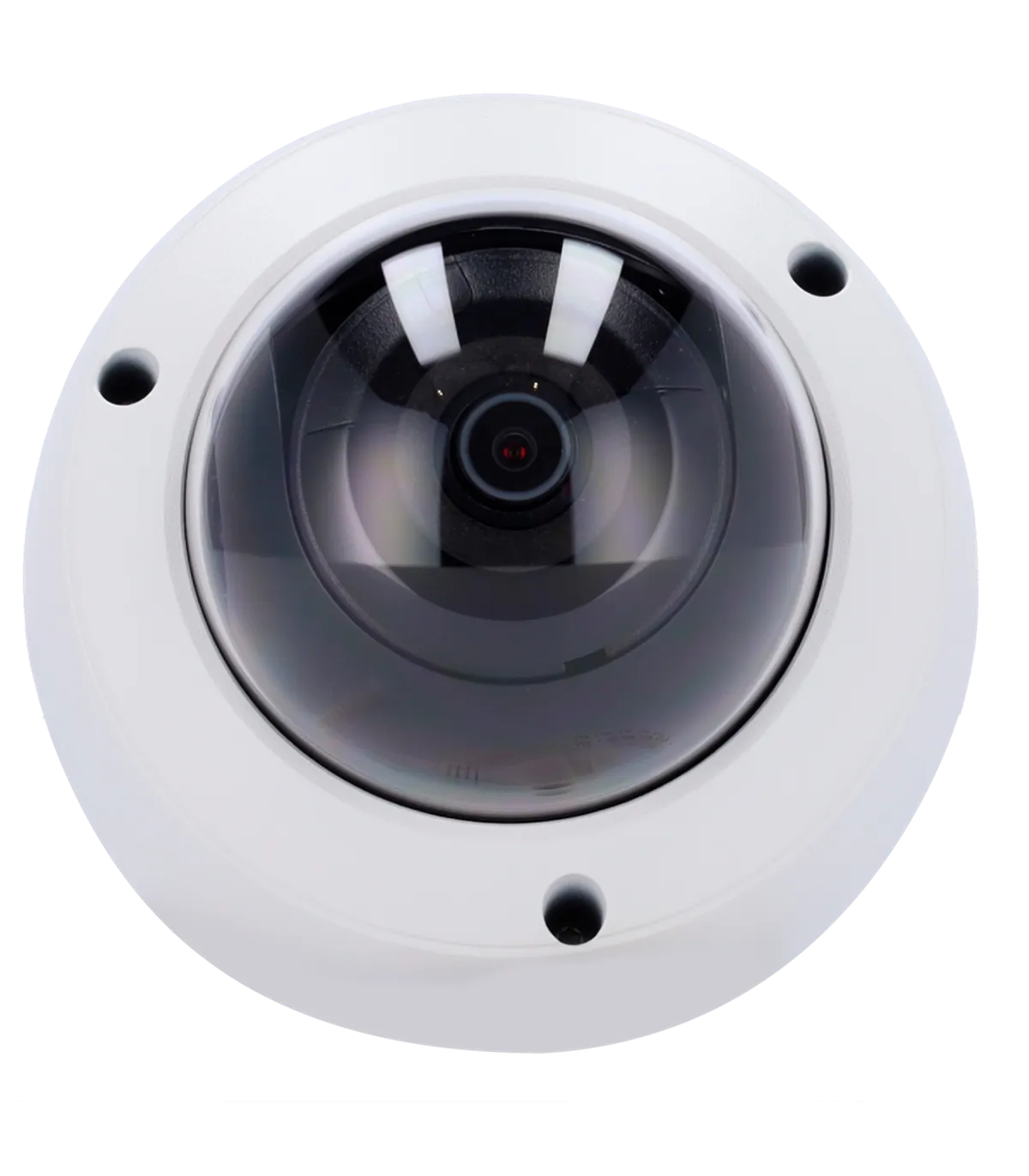

The DS-2CD2163G2-IU(2.8mm) is a high-performance IP dome camera designed for comprehensive surveillance in various environments. With its advanced features, this camera is ideal for both indoor and outdoor applications, providing exceptional image quality and reliable performance. The device is equipped with a 6 Megapixel sensor, ensuring clear and detailed video footage. Its IR range of 30 meters allows for effective monitoring even in complete darkness, making it suitable for 24/7 surveillance needs.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Audio | Integrated Microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Body: Aluminum Alloy Dome: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 mm x 92.2 mm (H) |
| Weight | 440 g |
The DS-2CD2163G2-IU(2.8mm) is an excellent choice for a variety of surveillance applications, including retail stores, parking lots, and office buildings. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and enhance security. With its high-resolution imaging and night vision capabilities, it ensures that every detail is captured, even in low-light conditions. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote monitoring capabilities enable security personnel to access live feeds from anywhere, ensuring prompt responses to incidents. The robust IP67 rating guarantees durability against harsh weather conditions, making it suitable for outdoor installations. Overall, the DS-2CD2163G2-IU(2.8mm) provides a comprehensive security solution that meets the demands of modern surveillance needs.
