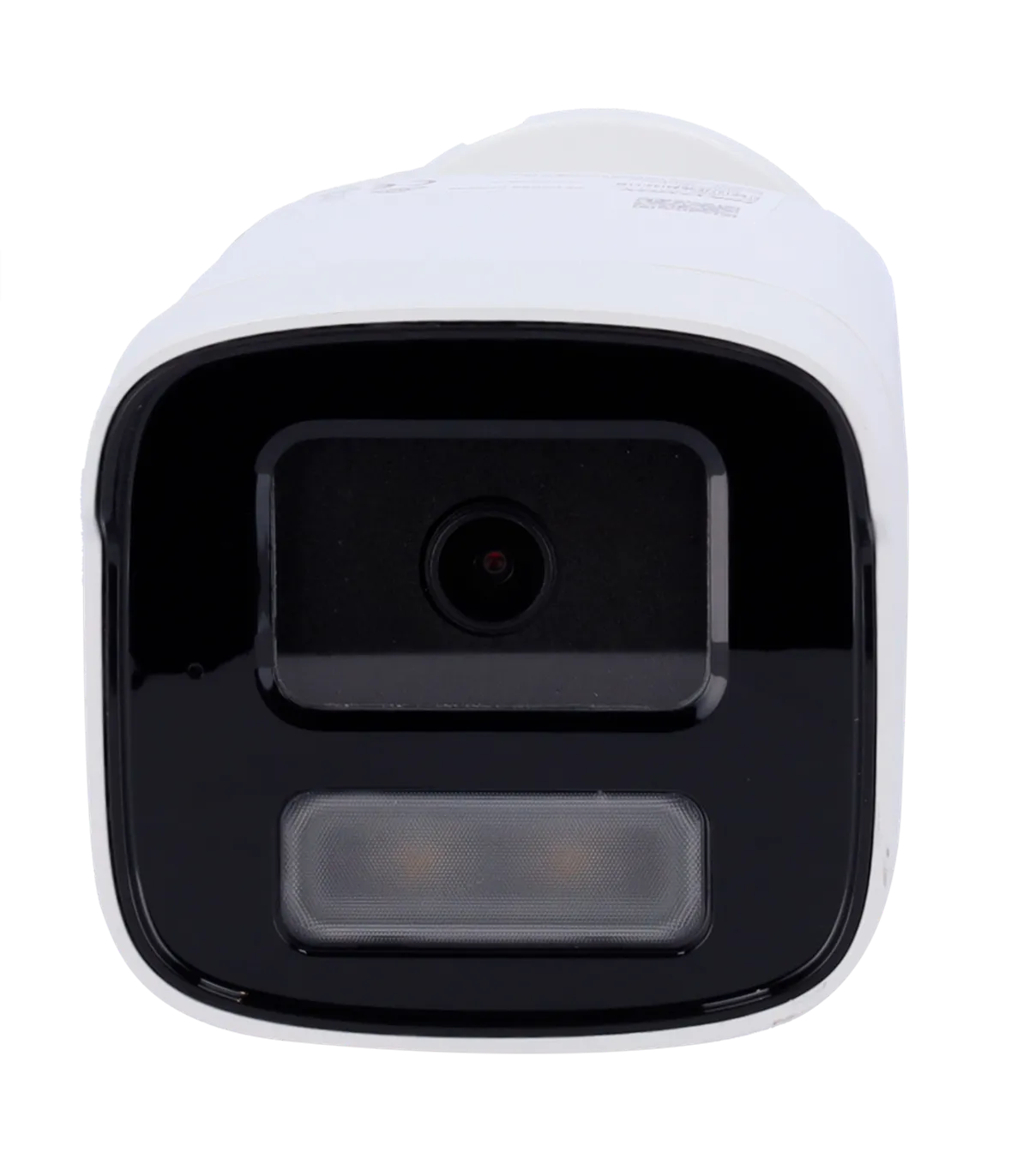

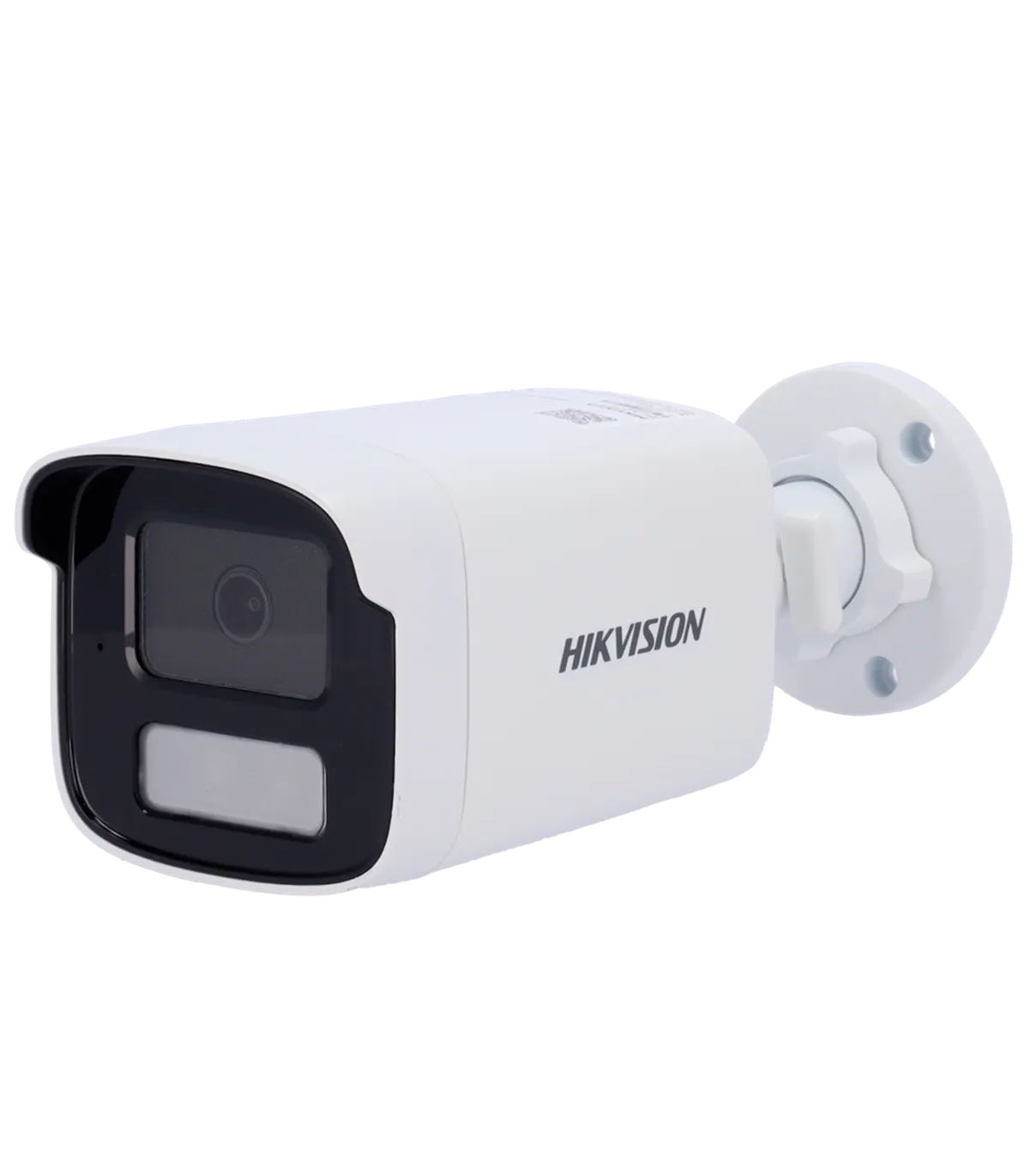

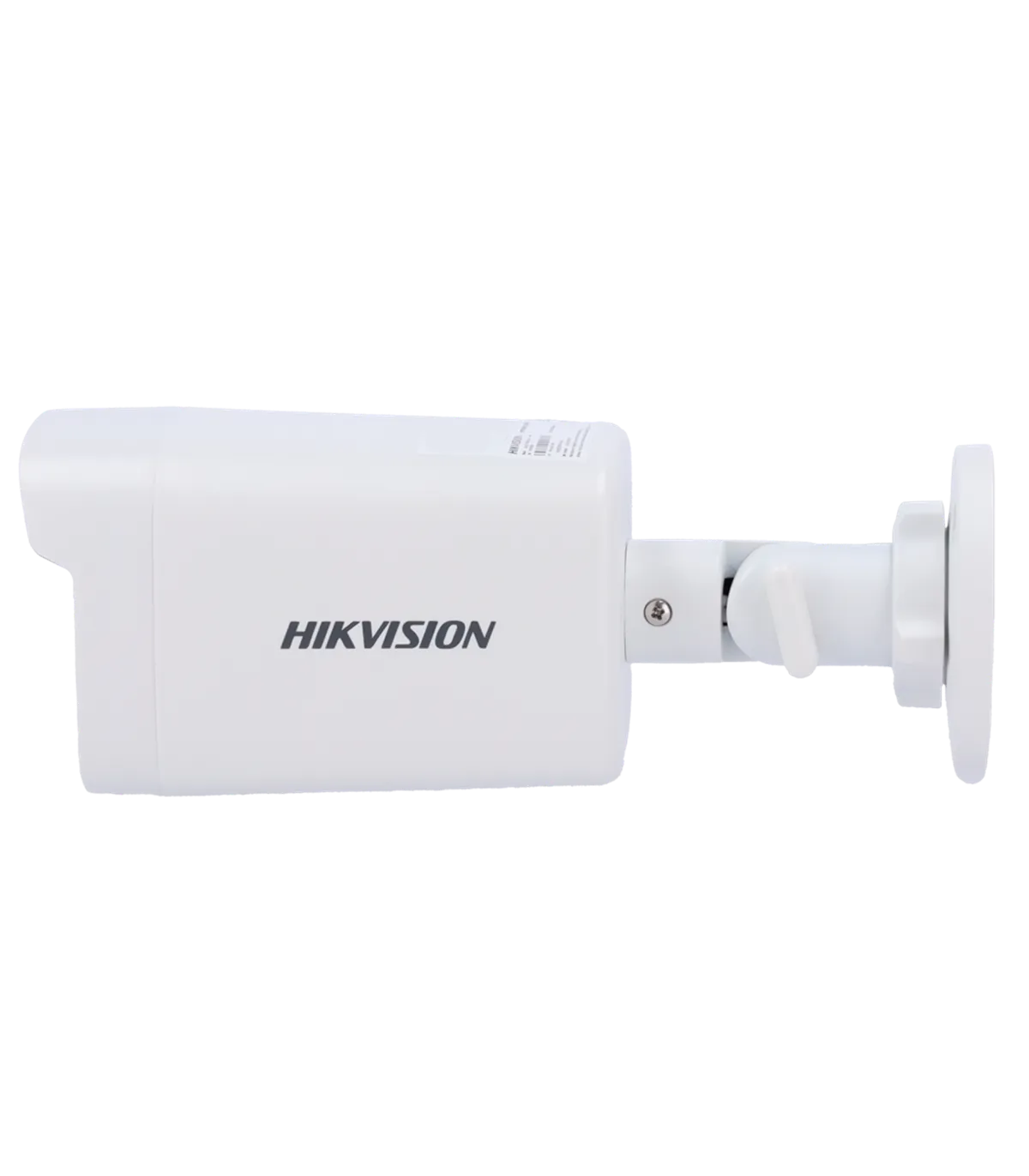

The DS-2CD1T83G2-LIU(4mm) is a high-performance IP bullet camera designed for outdoor surveillance applications. With its 8 Megapixel resolution, this camera delivers exceptional image clarity, making it ideal for monitoring large areas. The device features a 4 mm lens and is equipped with hybrid lighting capabilities, providing visibility up to 50 meters in complete darkness. Its robust design ensures reliable performance in various environmental conditions, making it a perfect choice for both residential and commercial security systems.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 90°, V: 49°, D: 108° |
| DORI | 102 m (D), 40 m (O), 20 m (R), 10 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR up to 50 m |
| Supplementary Lighting | Hybrid Light: IR up to 50 m White Light up to 50 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

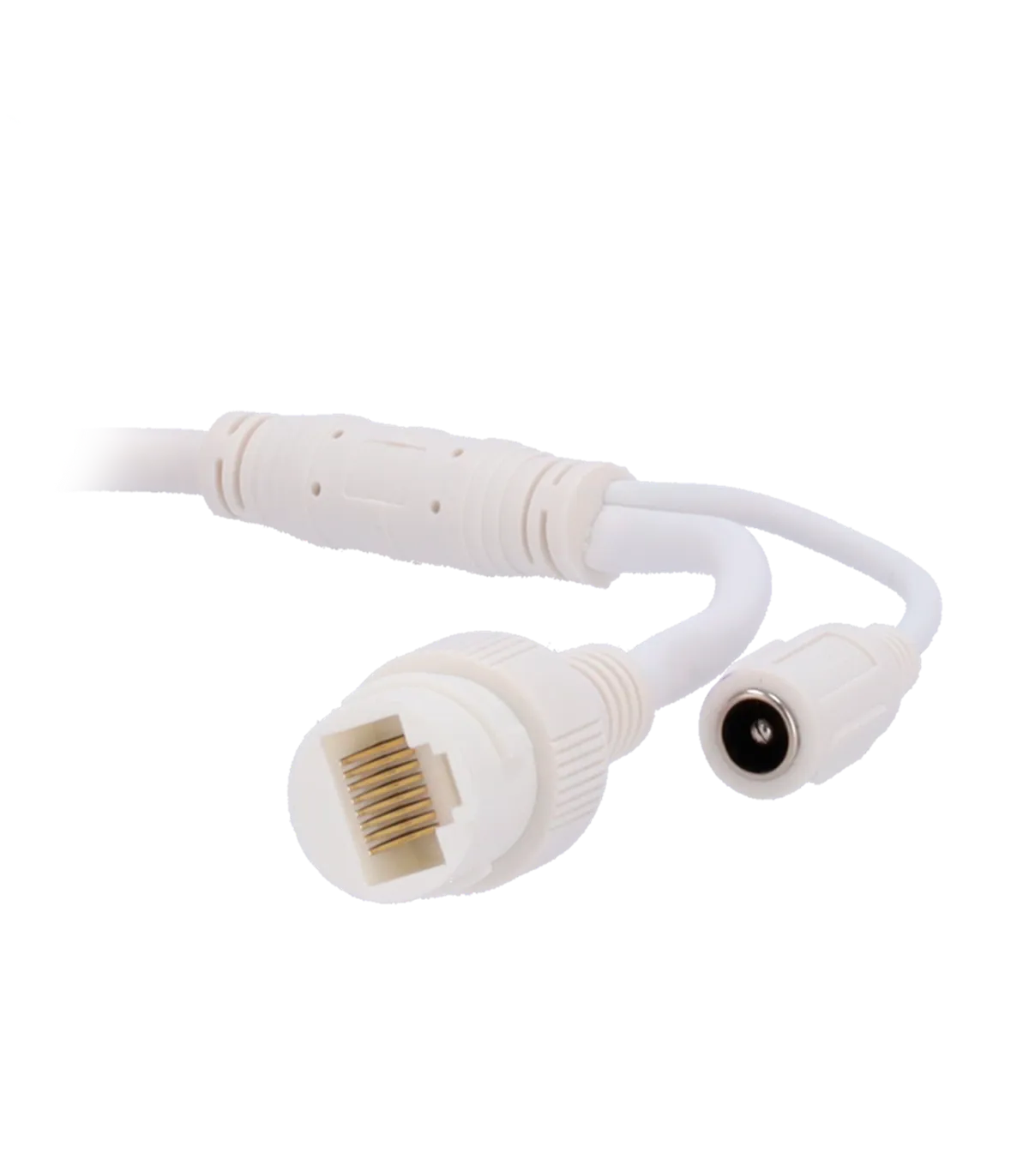

| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 205.6 mm (D) |
| Weight | 635 g |
The DS-2CD1T83G2-LIU(4mm) is ideally suited for various surveillance scenarios, such as monitoring parking lots, retail stores, and residential areas. Its high-resolution imaging ensures that every detail is captured, while the motion detection feature allows for real-time alerts, enhancing security measures. Installers can benefit from its plug-and-play setup, making it easy to integrate into existing systems. The camera's IP67 waterproof rating ensures durability in harsh weather conditions, making it a reliable choice for outdoor installations. Additionally, the remote monitoring capabilities via web browsers and mobile apps provide users with convenient access to live feeds and recorded footage, ensuring peace of mind at all times.
