- Hikvision
- PRO Series IP Dome Camera
- 4 MP Resolution | PoE | Alarms | ColorVu
- 2.8 mm | Integrated Microphone | Audio
- 30 m White Light | Motion Detection 2.0
- AcuSense | Facial Recognition | IP67 | IK08

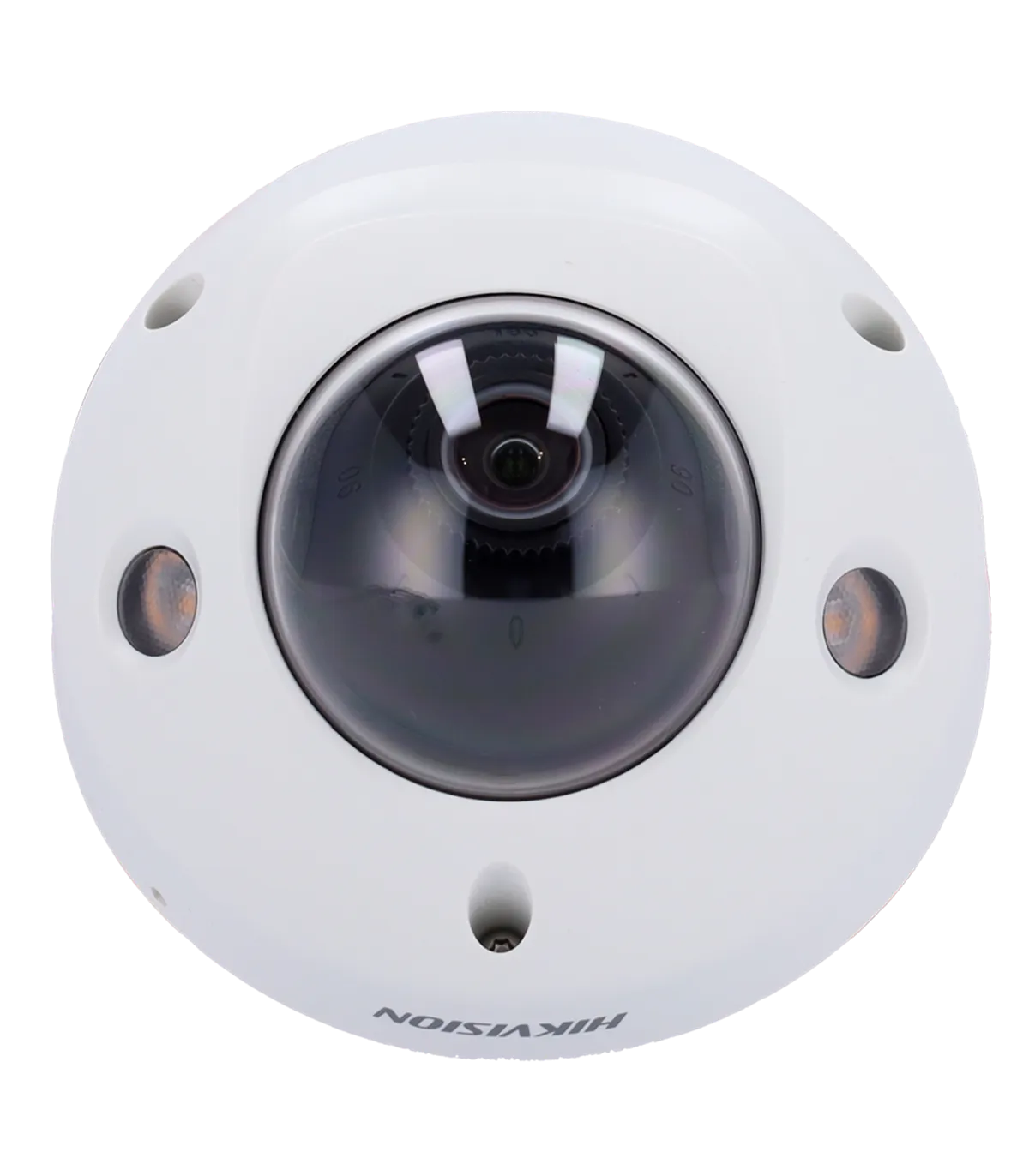

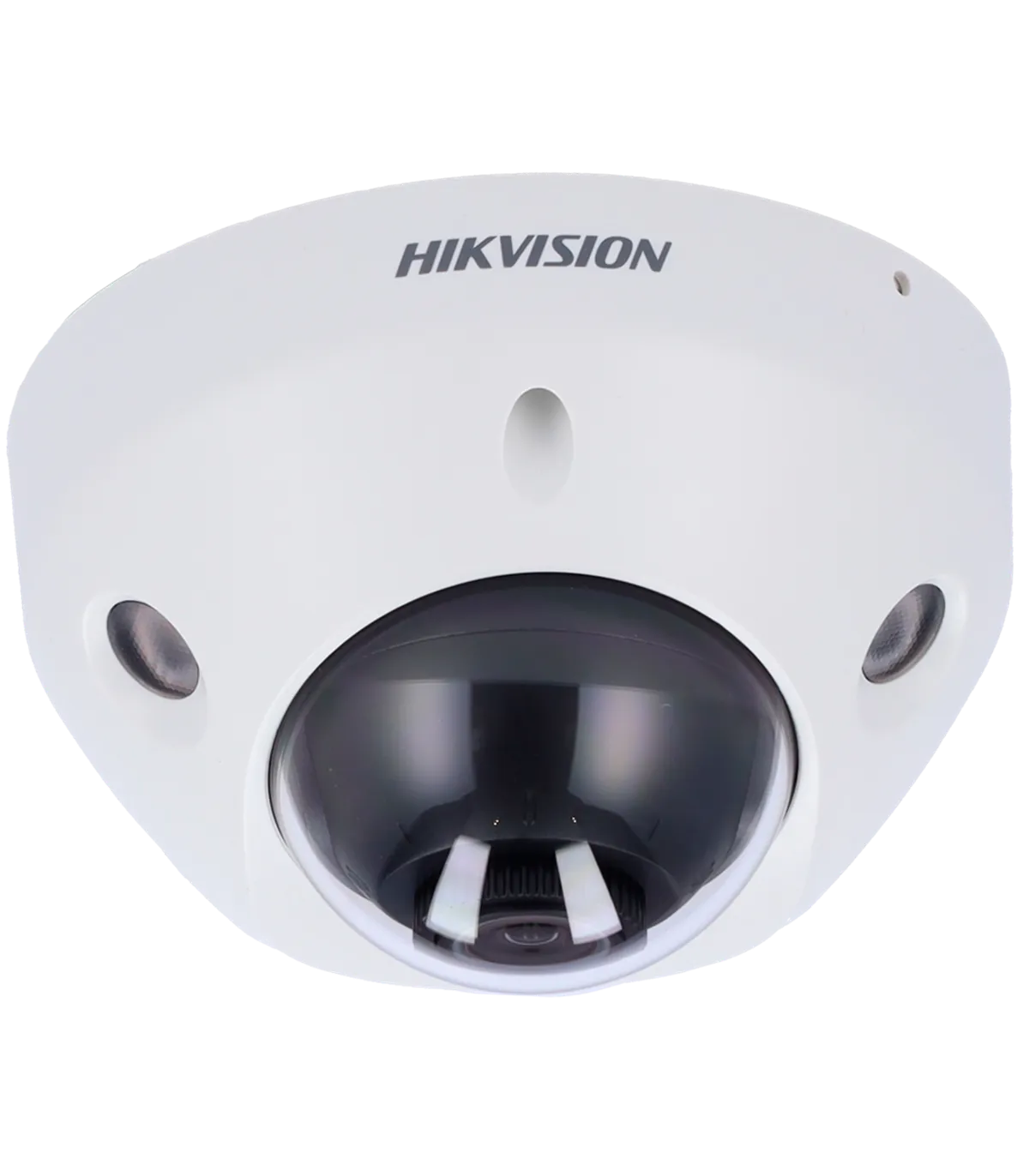

Description & Key Features: DS-2CD2547G2-LS(2.8mm)(C)
The DS-2CD2547G2-LS(2.8mm)(C) is a high-performance IP dome camera designed for comprehensive surveillance in various environments. With its advanced ColorVu technology, this camera delivers vibrant color images even in low-light conditions, making it ideal for 24/7 monitoring. The device is equipped with features such as motion detection and AcuSense technology, which significantly reduce false alarms by distinguishing between humans and vehicles. Its robust construction ensures durability, making it suitable for both indoor and outdoor applications.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- White light range 30 m
- ColorVu: color image 24 hours
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- WDR (130 dB)
- 3D DNR
- Integrated microphone
- Alarms
- Audio
- MicroSD card slot up to 256 GB
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB interface, CMS, Smartphone, and NVR
- Compatible with ONVIF
- IP67 waterproof
- IK08 vandal-proof
Specifications: DS-2CD2547G2-LS(2.8mm)(C)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 112°, V: 61°, D: 134° |
| DORI | 58 m (D), 23 m (O), 11 m (R), 2 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with white light range 30 m |
| Day/Night | ColorVu: Color image 24 hours |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK08 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 113.6 mm x 72.6 mm (H) |
| Weight | 400 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2547G2-LS(2.8mm)(C) is ideally suited for deployment in retail environments, parking lots, and residential areas where continuous surveillance is essential. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring that all activities are captured in high-definition 4 Megapixel resolution. The ColorVu technology allows for clear color images even at night, enhancing security during off-hours. Additionally, the motion detection capabilities, combined with AcuSense technology, help to minimize false alarms, allowing security personnel to focus on genuine threats. The camera's remote access features enable real-time monitoring via smartphones or web browsers, providing flexibility and peace of mind for store owners. Furthermore, its robust IP67 and IK08 ratings ensure that the camera remains operational in various weather conditions and is resistant to vandalism, making it a reliable choice for any security installation.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono
- SD Slot
- Ranura MicroSD hasta 256 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK08
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6931847137557
