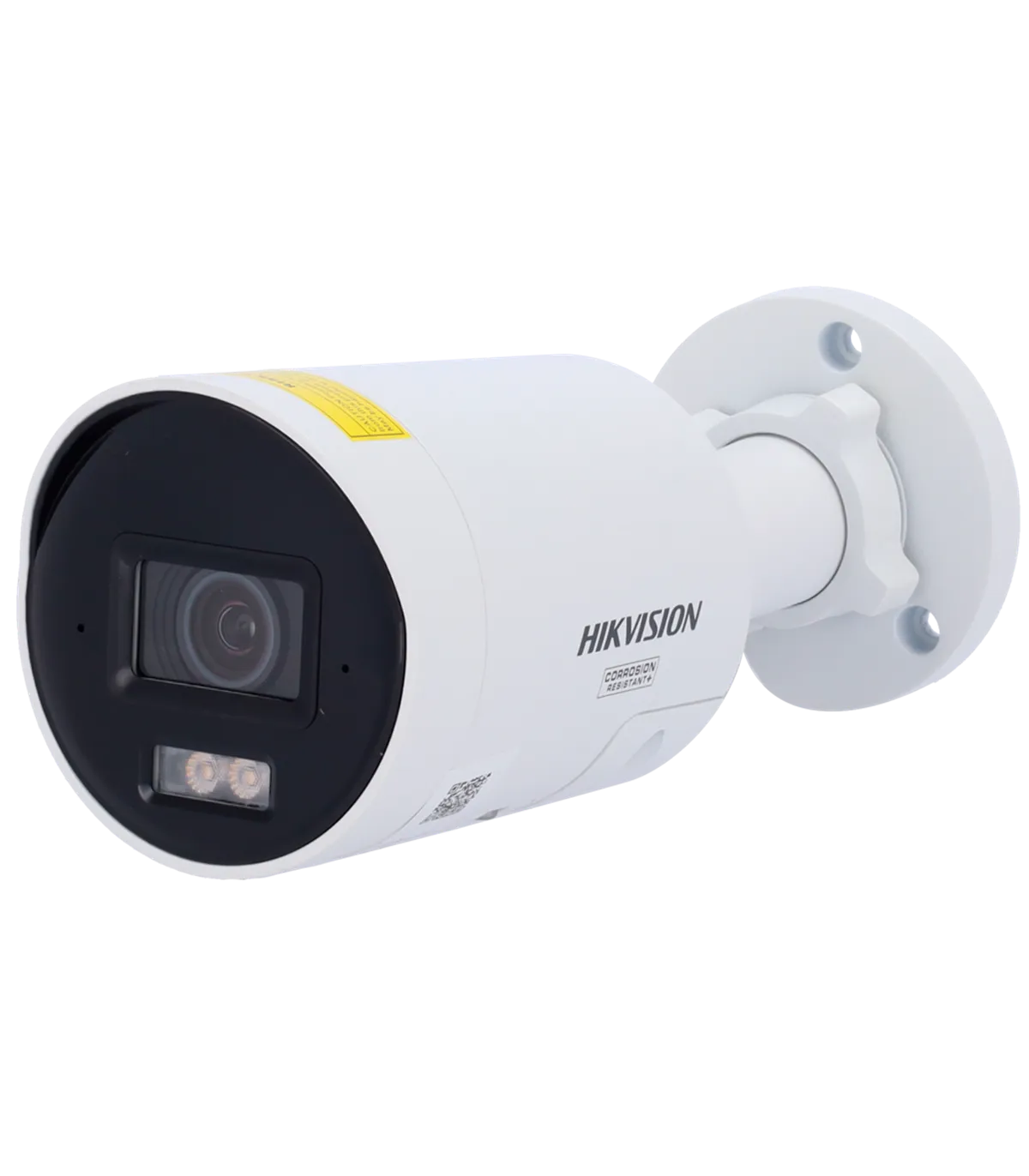

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for applications requiring high-quality surveillance, such as commercial security, residential monitoring, and public safety. With advanced sensor technology and wide aperture lenses, it captures more light for enhanced clarity and detail without the need for additional lighting. The integration of HikAI-ISP, an intelligent image processor, optimizes visual quality by reducing noise and improving sharpness in challenging conditions.
The AcuSense 3.0 technology enables precise detection of humans and vehicles, enhancing the effectiveness of security measures. Additionally, it features Audio 2.0 for more efficient communication.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 4 mm |
| Field of View (FOV) | H: 95.2°, V: 48.3°, D: 117.4° |
| DORI | 75 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color imaging with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of increased static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid Light | IR and White Light up to 40m |
| Day/Night | Auto / Manual / Programmable |
| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1A / 12W max. / PoE IEEE802.3at |
| Protection Rating | IP67 waterproof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 74.4 mm (Ø) x 176.3 mm (L) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 530 g |
In a typical deployment scenario, the DS-2CD2047G3-LI2UY/SL(4mm) camera can be installed in a retail environment to enhance security monitoring. With its 24/7 color imaging capabilities, it provides clear visuals even in low-light conditions, making it ideal for nighttime surveillance. The integration of AcuSense 3.0 technology allows for accurate detection of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy shopping areas where foot traffic is high. Additionally, the built-in dual microphone enhances audio capture, allowing for effective communication and monitoring. The camera's remote access capabilities enable security personnel to monitor live feeds from their smartphones or PCs, ensuring that they can respond promptly to any incidents. Overall, the DS-2CD2047G3-LI2UY/SL(4mm) camera offers a comprehensive solution for modern security needs.
