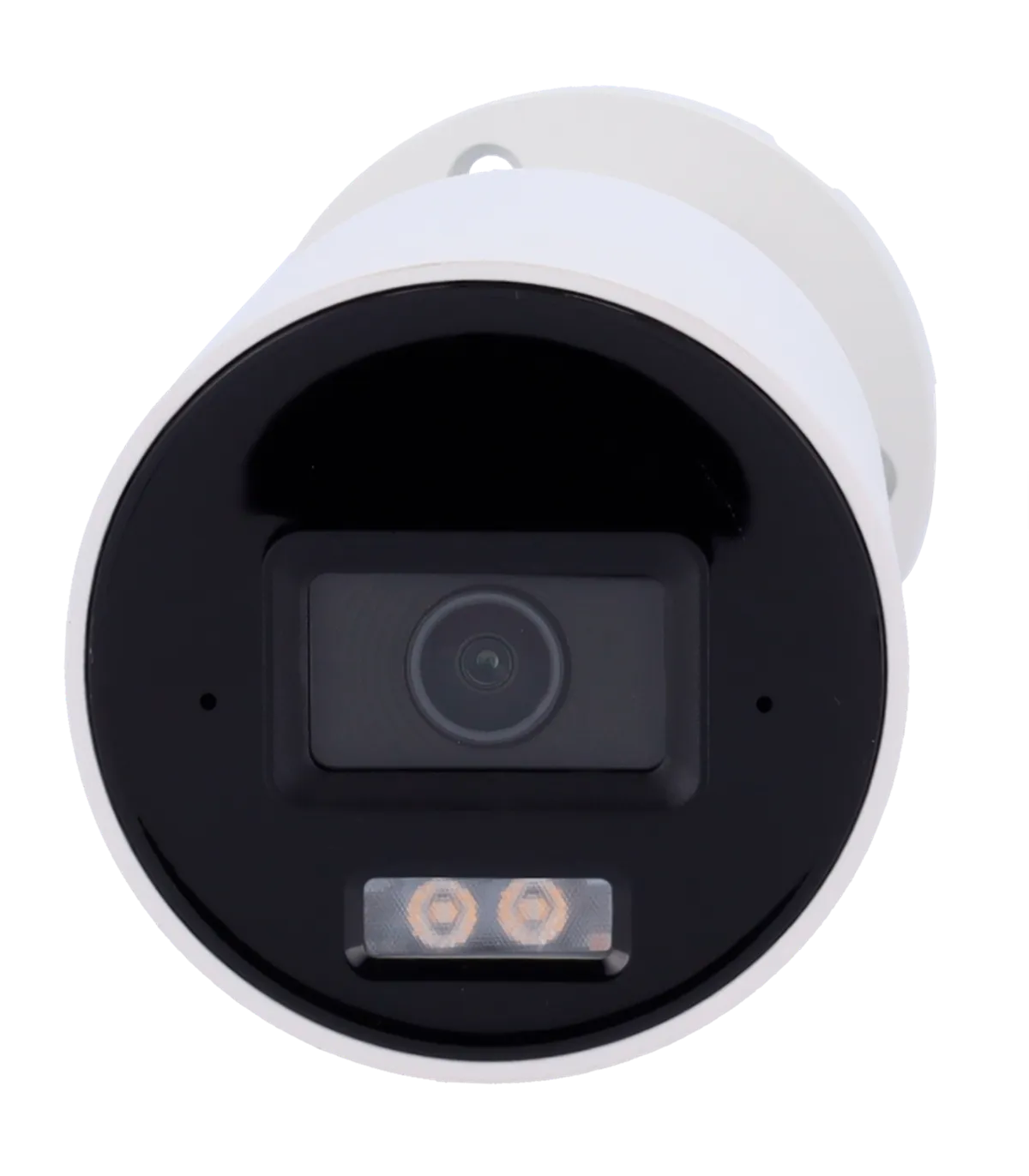

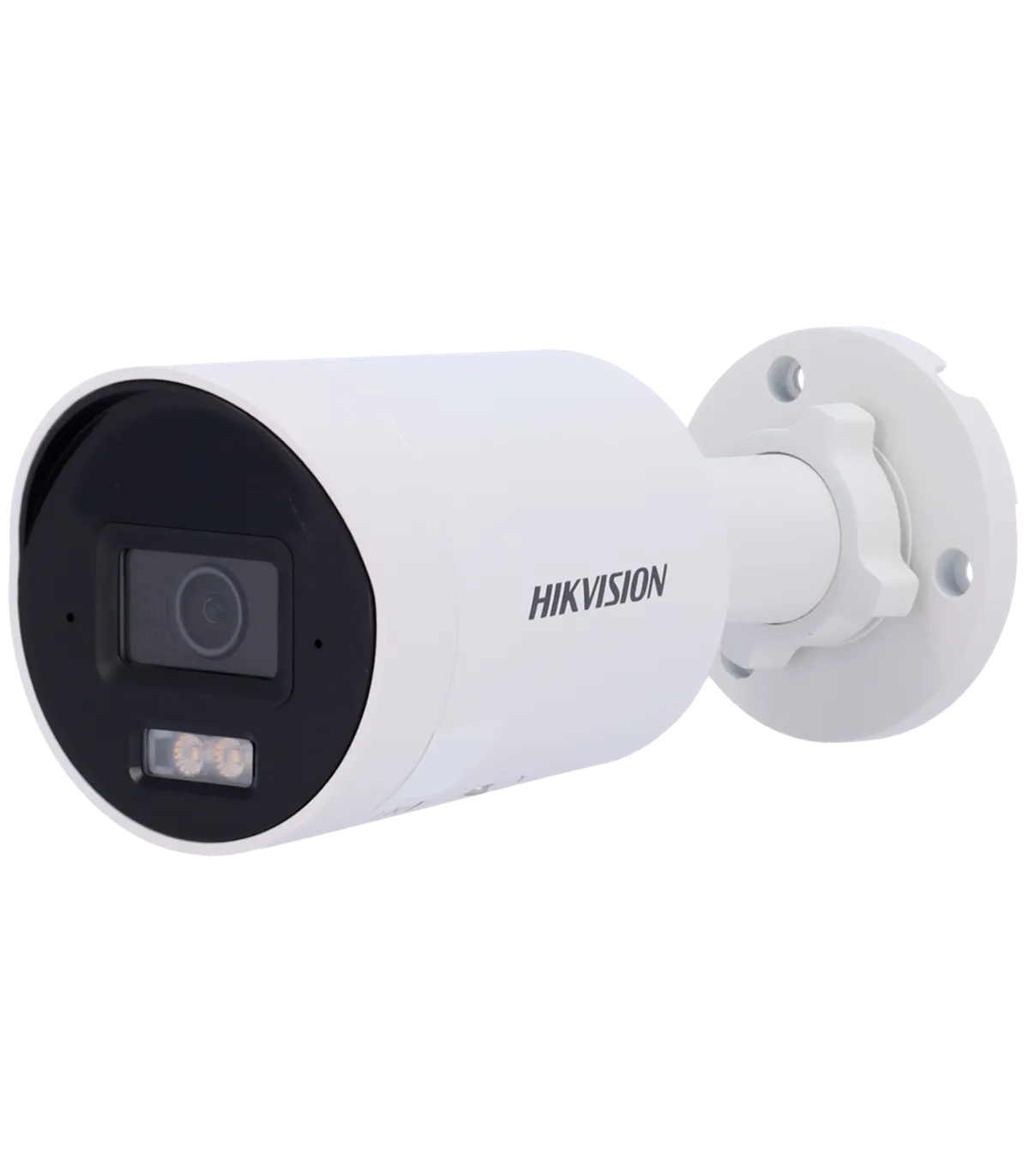

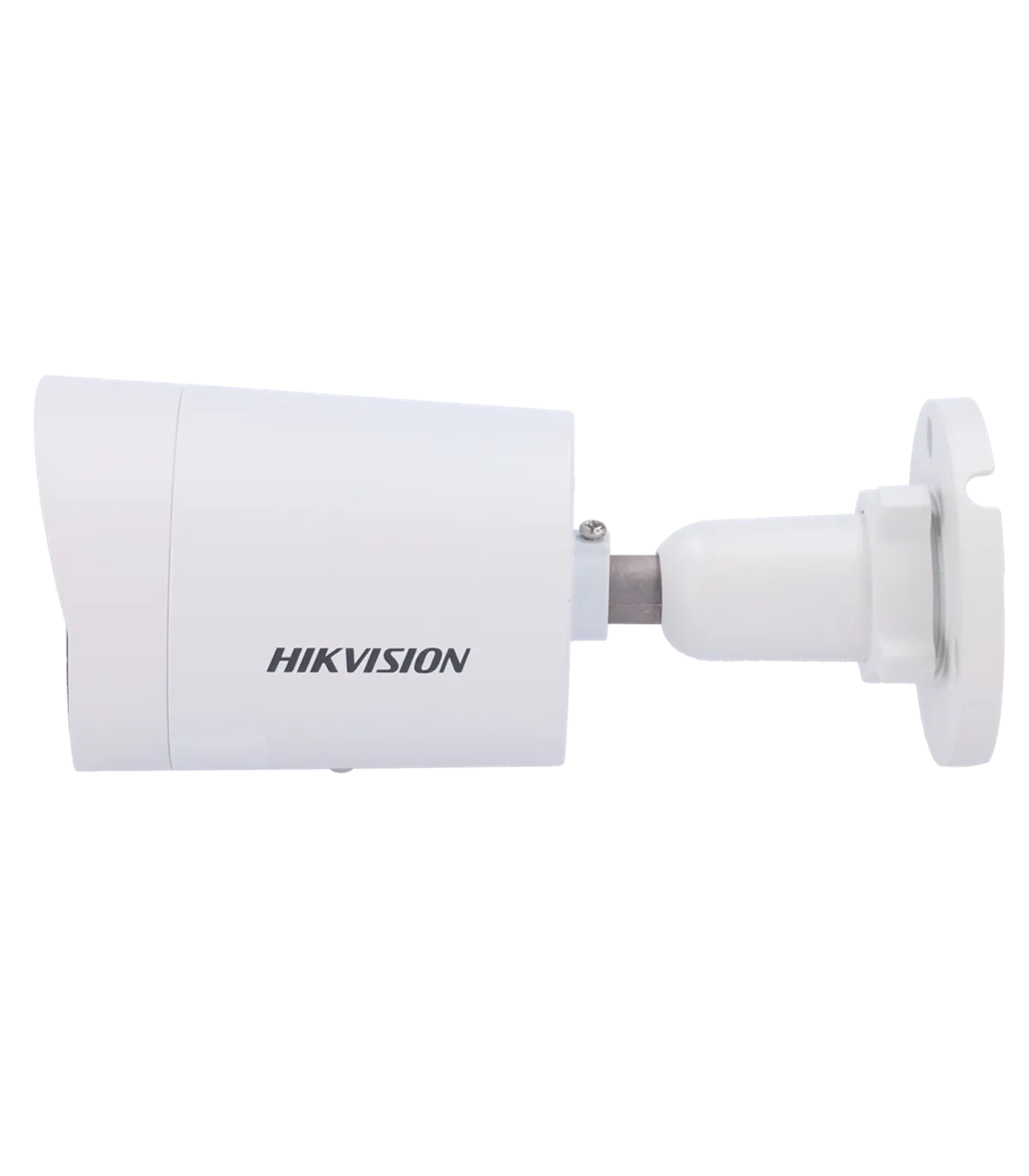

The DS-2CD2083G2-LI2U(2.8mm) is a high-performance IP bullet camera designed for outdoor surveillance. With its advanced 8 Megapixel resolution, this camera is ideal for monitoring large areas, providing clear and detailed images even in low-light conditions. Its hybrid light technology, featuring both IR and white light, ensures visibility up to 40 meters, making it suitable for various environments such as commercial properties and residential areas.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 108°, V: 59°, D: 127° |
| DORI | 84 m (D), 33 m (O), 16 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Supplementary Lighting | Hybrid Light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, Mirror Function, Privacy Masking, Smart Light |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |

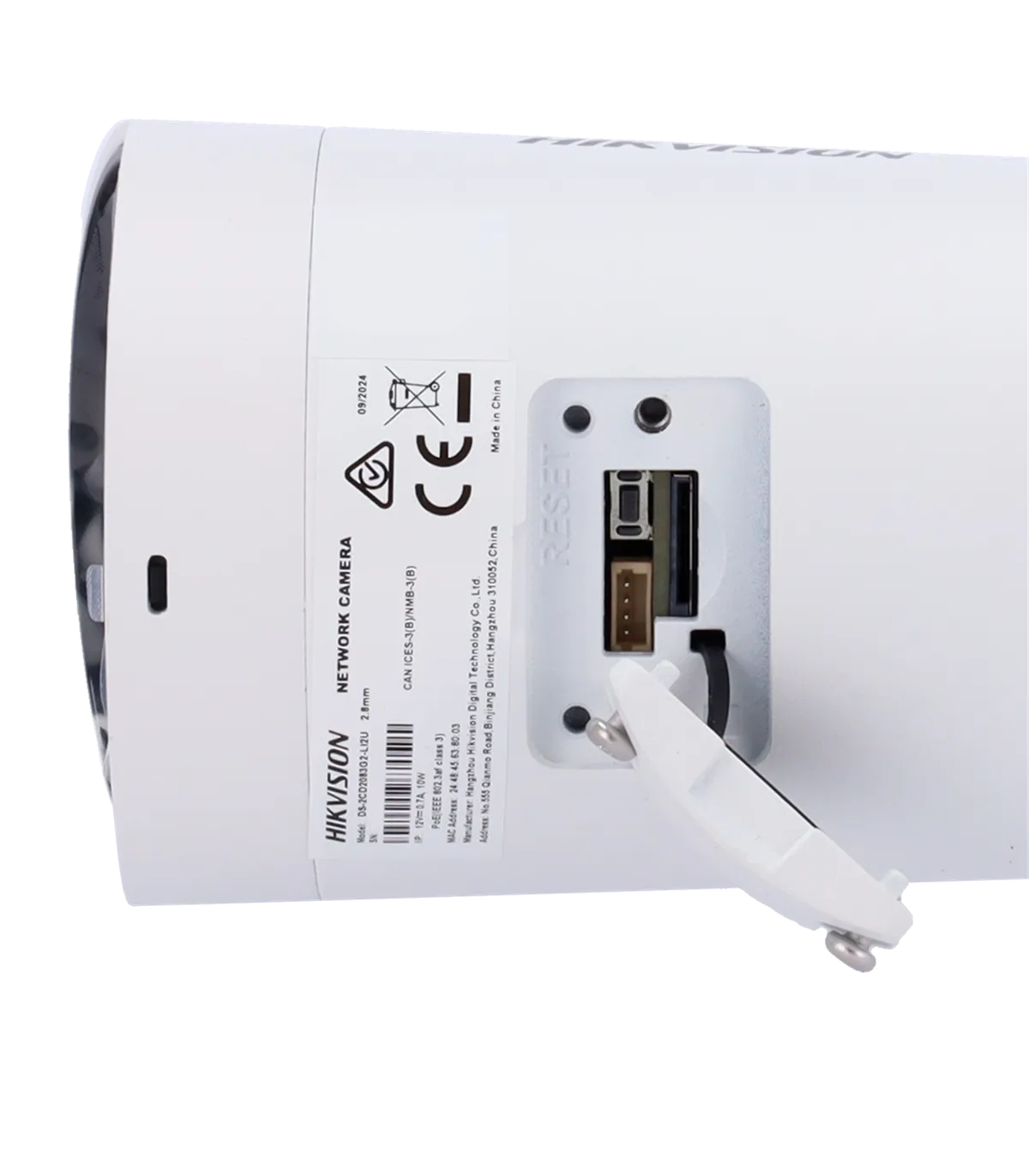

| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Dual Array Microphone |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 74.4 mm x 176.3 mm (Fo) |

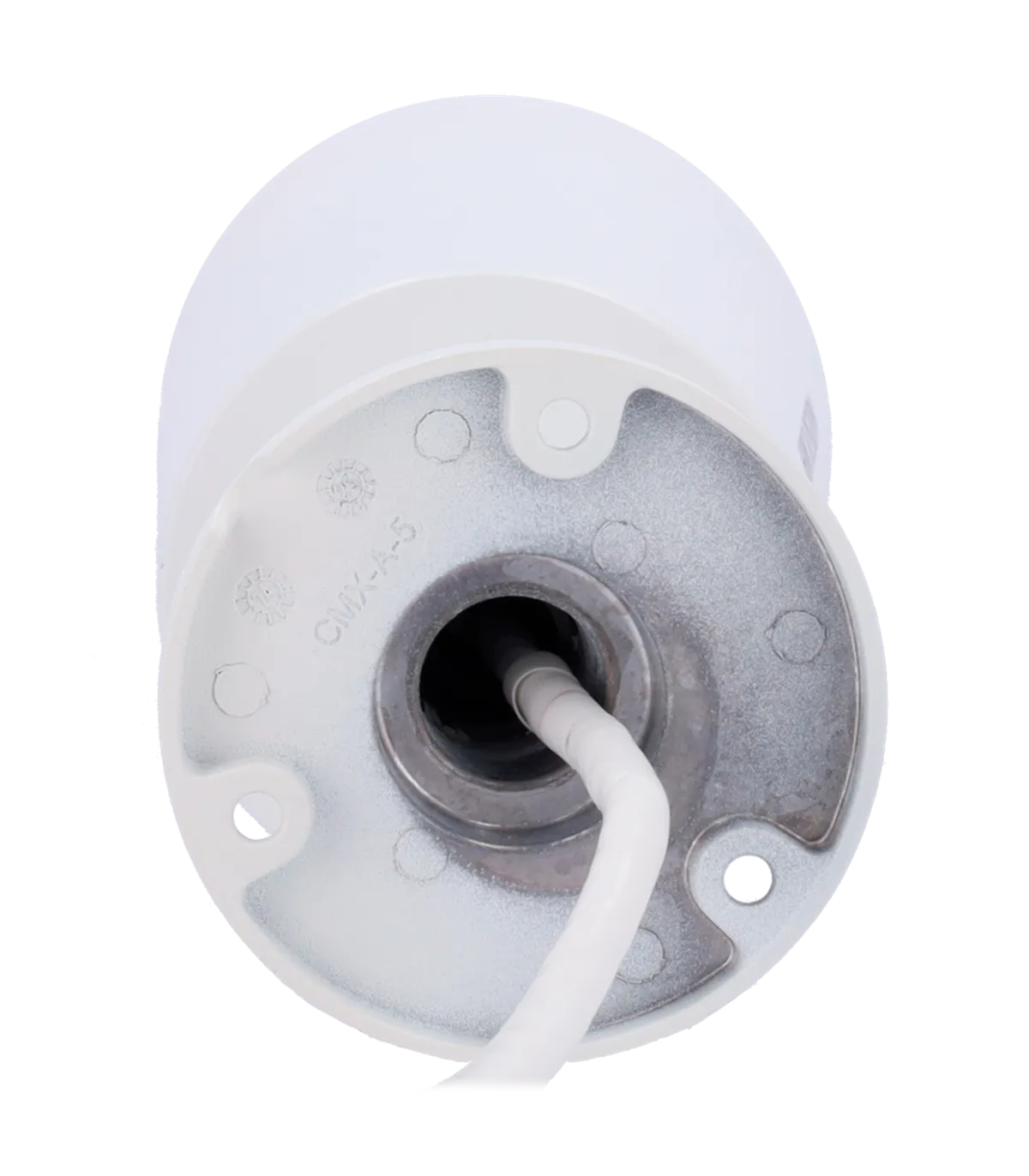

| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 515 g |
The DS-2CD2083G2-LI2U(2.8mm) is ideally suited for installation in various settings, including retail stores, parking lots, and residential complexes. Its high-resolution imaging allows for detailed monitoring of critical areas, while the hybrid light technology ensures visibility in complete darkness. Installers can benefit from its plug-and-play setup, making it easy to integrate into existing security systems. The camera's motion detection capabilities, enhanced by AcuSense technology, significantly reduce false alarms, providing peace of mind for users. Additionally, the camera's remote access features enable users to monitor their premises from anywhere, enhancing overall security management.
