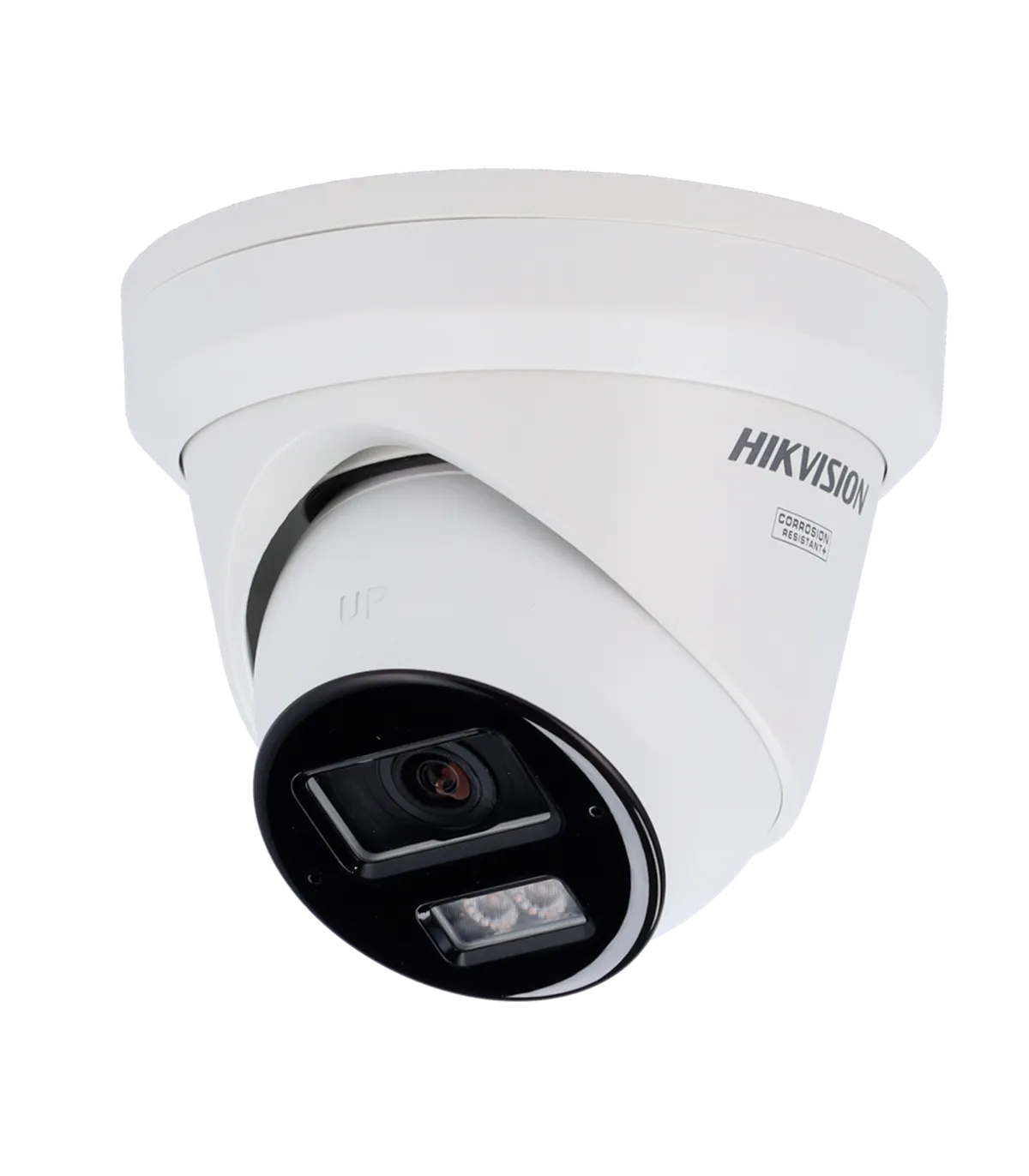

The DS-2CD2343G2-LIZ2UY(2.8/4mm) is a high-performance IP turret camera designed for professional surveillance applications. With its 4 Megapixel resolution and advanced features, this camera is ideal for monitoring both indoor and outdoor environments. It offers exceptional low-light performance with a minimum illumination of 0.005 Lux, making it suitable for 24/7 surveillance. The device incorporates AcuSense technology, which enhances motion detection accuracy by filtering out false alarms caused by vehicles and people.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual Lens in 2.8/4 mm |
| Field of View (FOV) | H: 99.3/80°, V: 54.8/44.1°, D: 120.2/94° |
| DORI | 66.6/79.2 m (D), 26.4/31.4 m (O), 13.3/15.8 m (R), 6.7/7.9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, 3D-DNR, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Dual Array Microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 0.67 A / 8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof NEMA 4X Corrosion Resistant |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 96.3 mm (H) |
| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 515 g |
The DS-2CD2343G2-LIZ2UY(2.8/4mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and low-light capabilities, it ensures that every detail is captured, even in challenging lighting conditions. The smart hybrid light feature allows for effective monitoring at night, enhancing security without disturbing customers. Additionally, the AcuSense technology significantly reduces false alarms, allowing security personnel to focus on genuine threats. This camera's remote monitoring capabilities enable users to access live feeds from their smartphones or computers, providing peace of mind and flexibility in surveillance management. Overall, the DS-2CD2343G2-LIZ2UY(2.8/4mm) is a robust solution for enhancing security in various settings.
