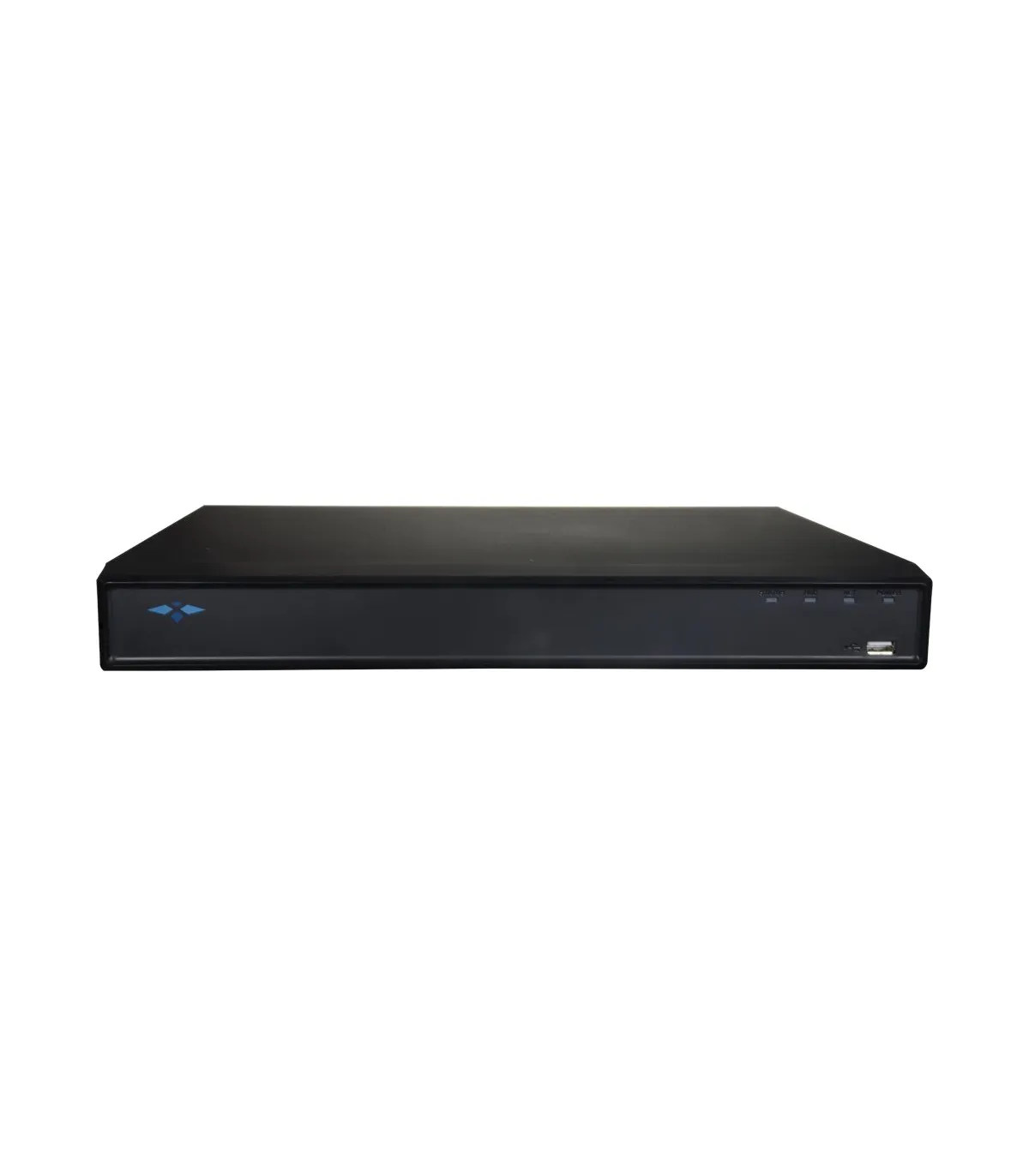

| Brand | X-Security |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Up to 18 IP Channels (6Mpx), (16 by substitution + 2 extra IP) |
| Video Outputs | 1 HDMI full HD and 1 VGA |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Bidirectional Audio | Using audio input/output |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 |
| Display Resolution | 1920 × 1080; 1280 × 1024; 1280 × 720 |
| SMD PLUS | False alarm filter for people and vehicle detection in motion detection on 8 channels |
| Recording Resolution | 1080N; 720p; 960H; D1; CIF |
| Main Stream Encoding | First channel: 1080N, 720p (1~25/30FPS), Rest of channels: 1080N, 720p (1~15FPS) / 960H, D1, CIF (1~25/30 FPS) |
| Extra Stream Encoding | CIF (1~7 FPS) |
| Simultaneous Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Intelligent Functions | POS Function | Bidirectional audio via RCA |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection (up to 396 zones) |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 HDD SATA 3.5" up to 10TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile phone application, or PSS software |
| Power | DC 12 V / 2 A |
| Dimensions / Weight | 260.0 (W) × 237.9 (D) × 47.6 (H) mm / 1042kg |
Data sheet
