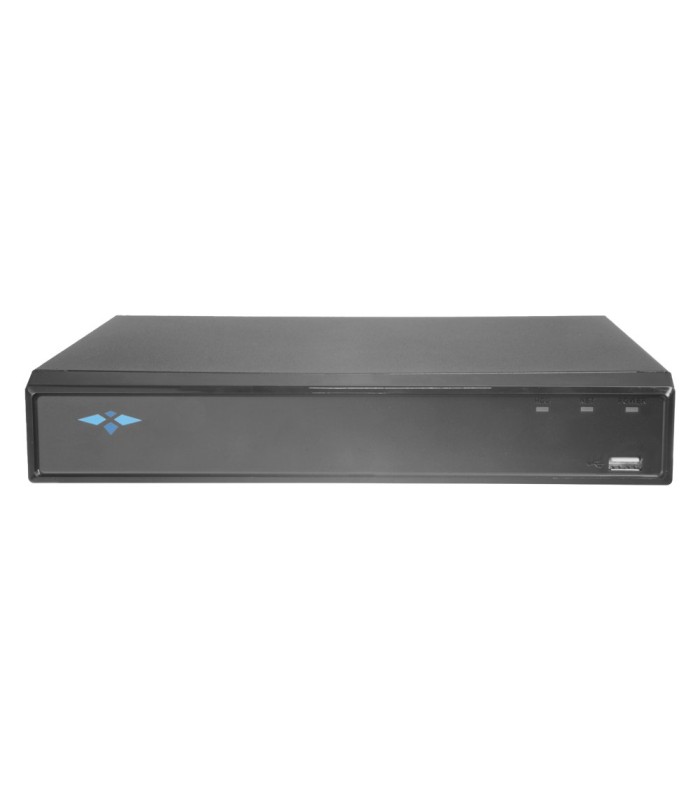

| Brand |
X-Security |
| Video Format |
HDTVI / HDCVI / AHD / CVBS / IP |

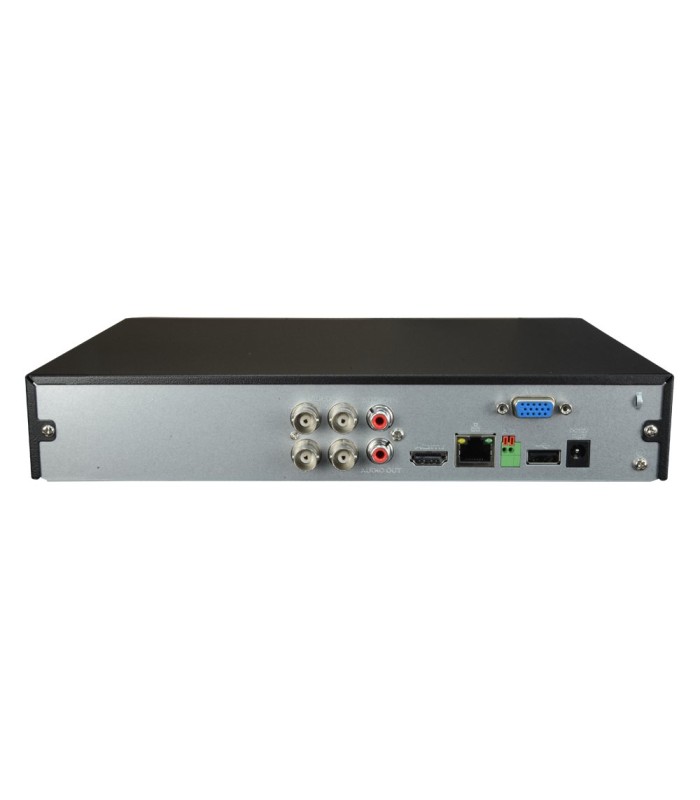

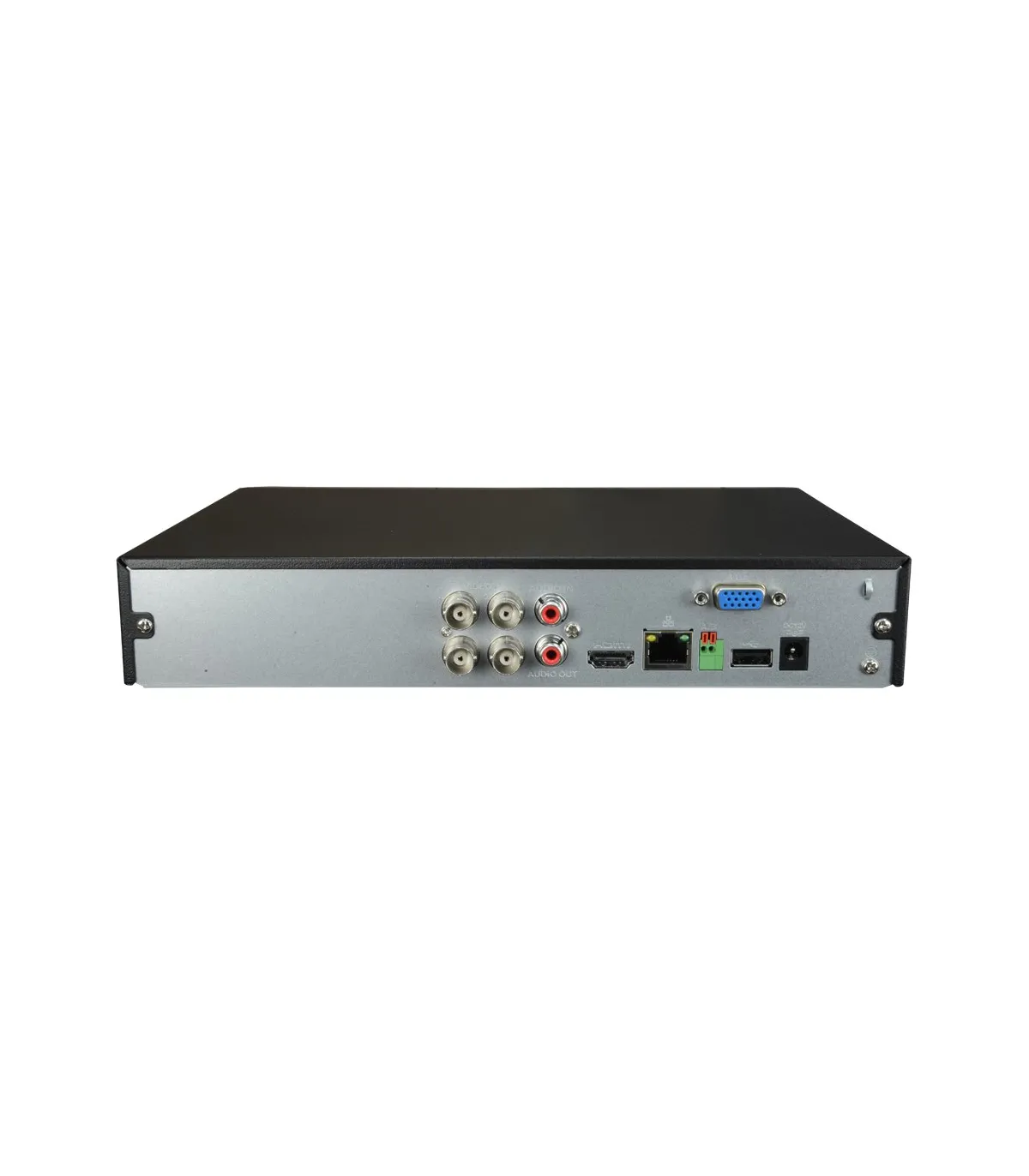

| Video Inputs |
4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration |
Up to 8 IP Channels (8Mpx), replacing all BNC channels |
| Video Outputs |
1 HDMI 4K, 1 VGA |
| Video/Audio Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution |
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Total Bandwidth |
64 Mbps |
| Recording Resolution |
8M (7FPS) / 6M (10FPS) / 5M (12FPS) / 4K-N, 4MP, 3MP(15fps) / 4M-N or 1080P or 720P or 960H or D1 or CIF (25/30fps) |
| Main Stream Encoding |
8M (7FPS) / 6MP(10FPS) / 5MP(12FPS) / 4K-N, 4MP, 3MP(15FPS) / 4M-N, 1080P, 720P, 960H, D1, CIF (25/30FPS) |
| Extra Stream Encoding |
960H(15FPS) / D1, CIF(25/30FPS) |
| Simultaneous Multifunction |
Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Audio Inputs |
1 RCA Channel |
| Audio Outputs |
1 RCA Channel |
| Bidirectional Audio |
Using audio input/output |
| Alarms IN/OUT |
Not available |
| Video Analysis |
IVS: Face Detection / Human and Vehicle Recognition / Line Crossing / Intrusion |
| Facial Recognition |
1 analog live face comparison channel |
| Intelligent Motion Detection |
Up to 4 channels capable of classifying targets between humans and vehicles |
| Recording Method |
Manual, scheduled, motion detection, alarm |
| Backup |
USB/Network |

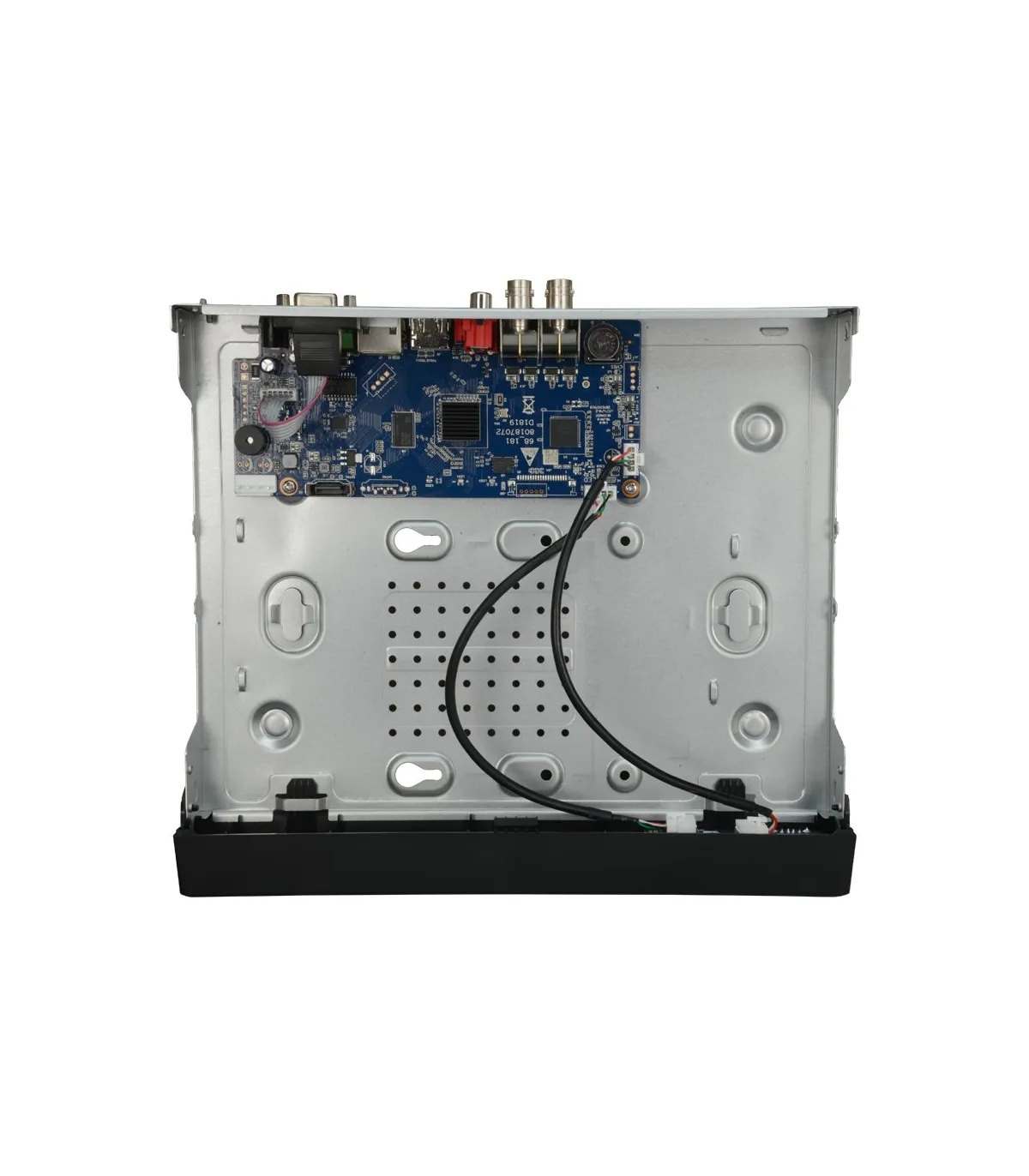

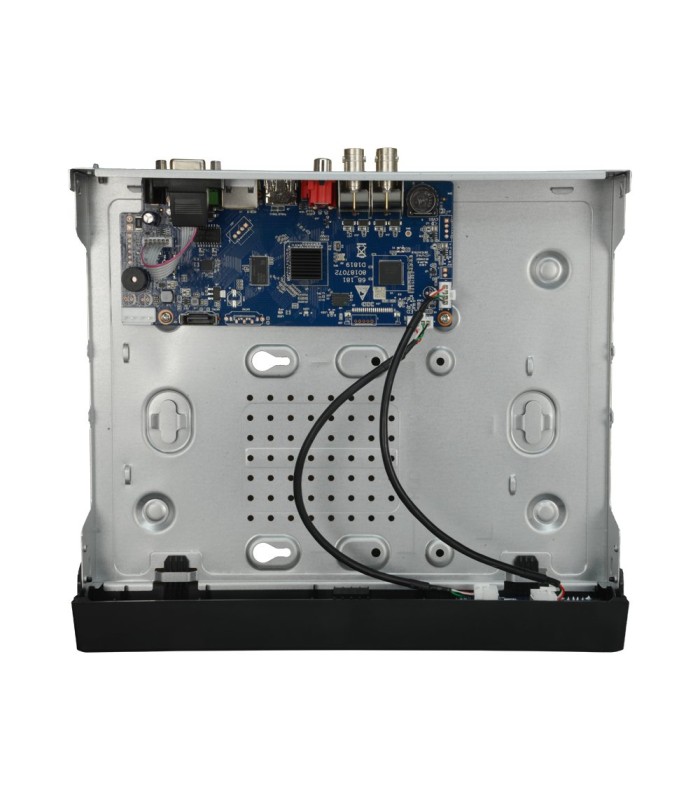

| Internal Storage |
1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication |
RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote Access |
Browser (ActiveX), Mobile App, or PSS software |
| Power Supply |
DC 12V / 2A |
| Dimensions / Weight |
48 (H) x 260 (W) x 238 (D) mm / 1.1 Kg |
