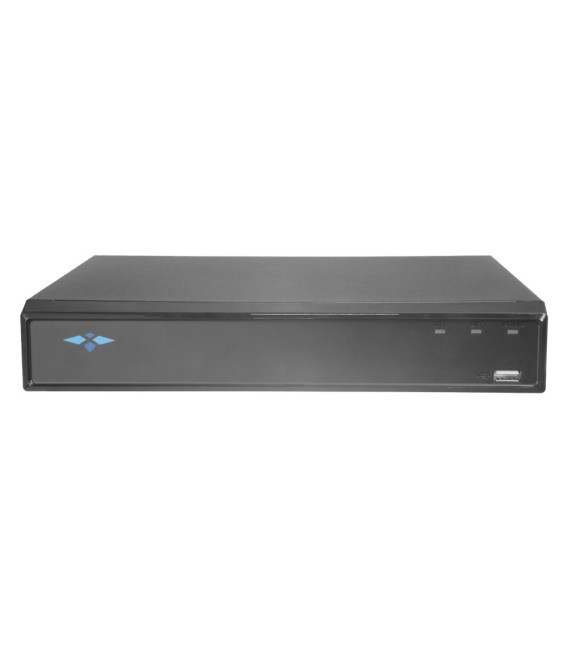

| Brand | X-Security |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |

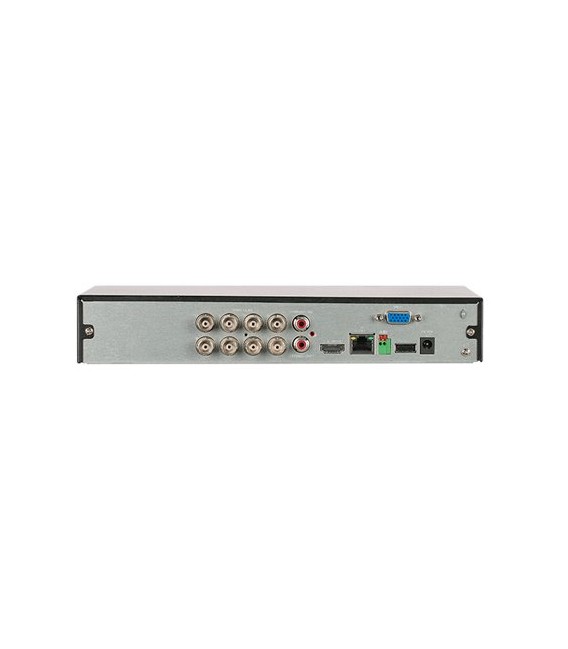

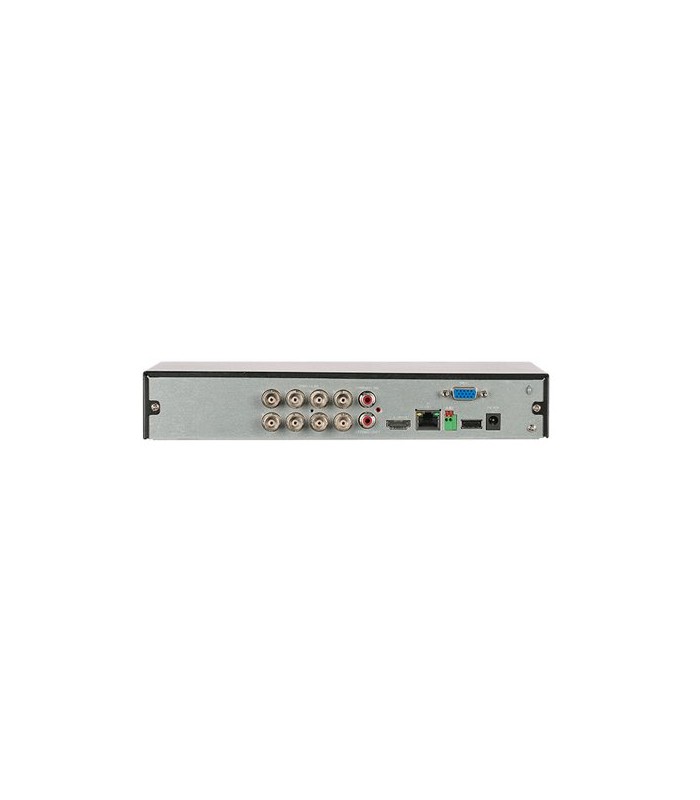

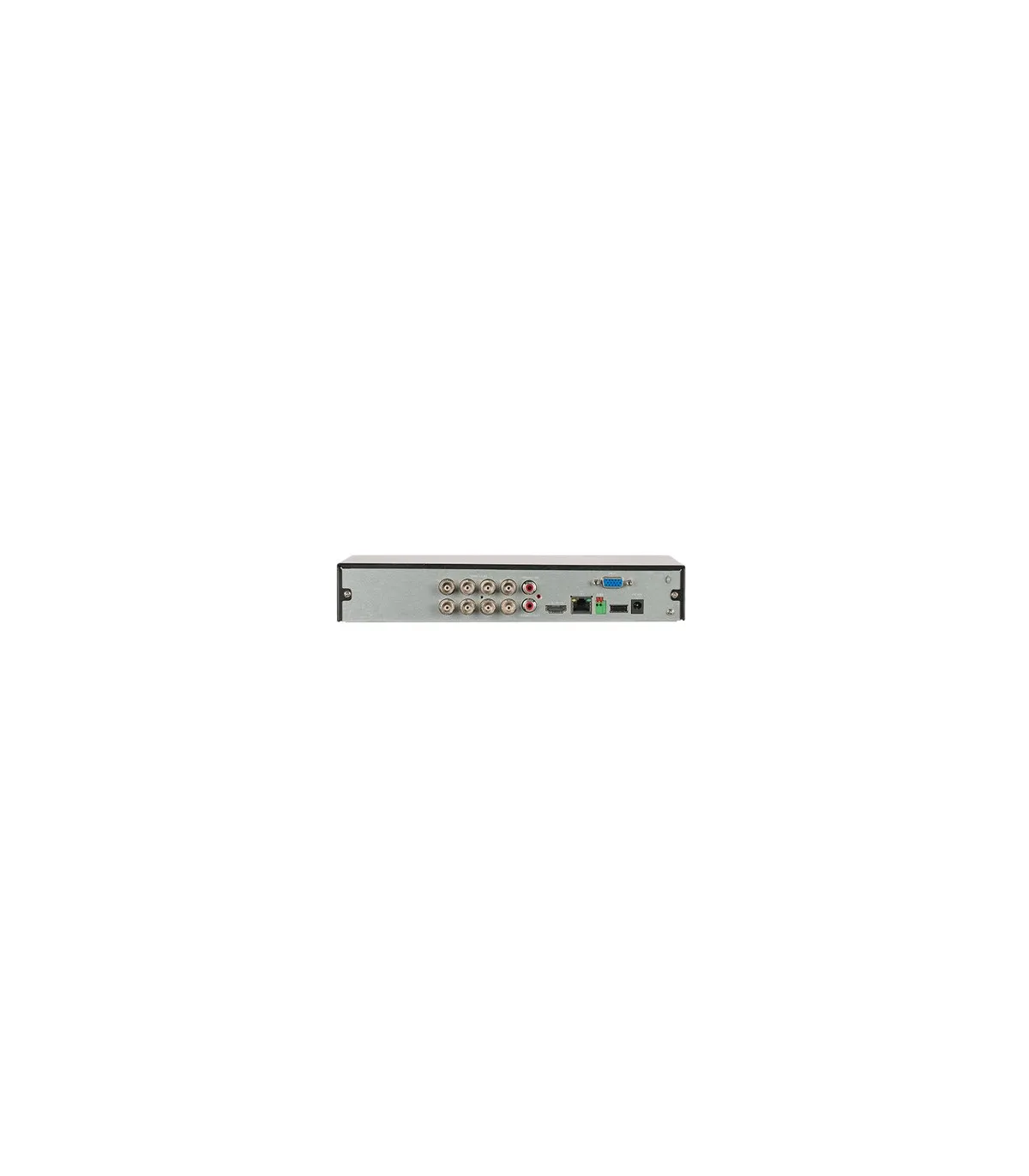

| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Up to 16 IP Channels (8Mpx), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI, 1 VGA |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 |
| Display Resolution | HDMI: 4K, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Total Bandwidth | 128 Mbps |
| Encoding | All channel: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps) |
| Dual-Stream Encoding | 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps) |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Audio Inputs | 8 BNC, 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Bidirectional Audio | Reusing audio input/output |
| Alarms | No |
| Video Analysis | IVS: Line Crossing | Intrusion in Area | Abandoned Object | Face Detection IP Mode, Face Recognition, and IVS cannot be activated simultaneously |
| Face Recognition | Up to 2 analog face comparison channels live |
| Intelligent Motion Detection | Up to 16 channels capable of classifying targets between humans and vehicles |
| Recording Method | Manual, Scheduled, Motion Detection, Alarm |
| Backup | USB/ Network |
| Internal Storage | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile Phone Application, or PSS Software |
| Power Supply | DC 12V / 2A |
| Dimensions / Weight | 49 (H) x 333 (W) x 315 (D) mm / 0.9 Kg |
