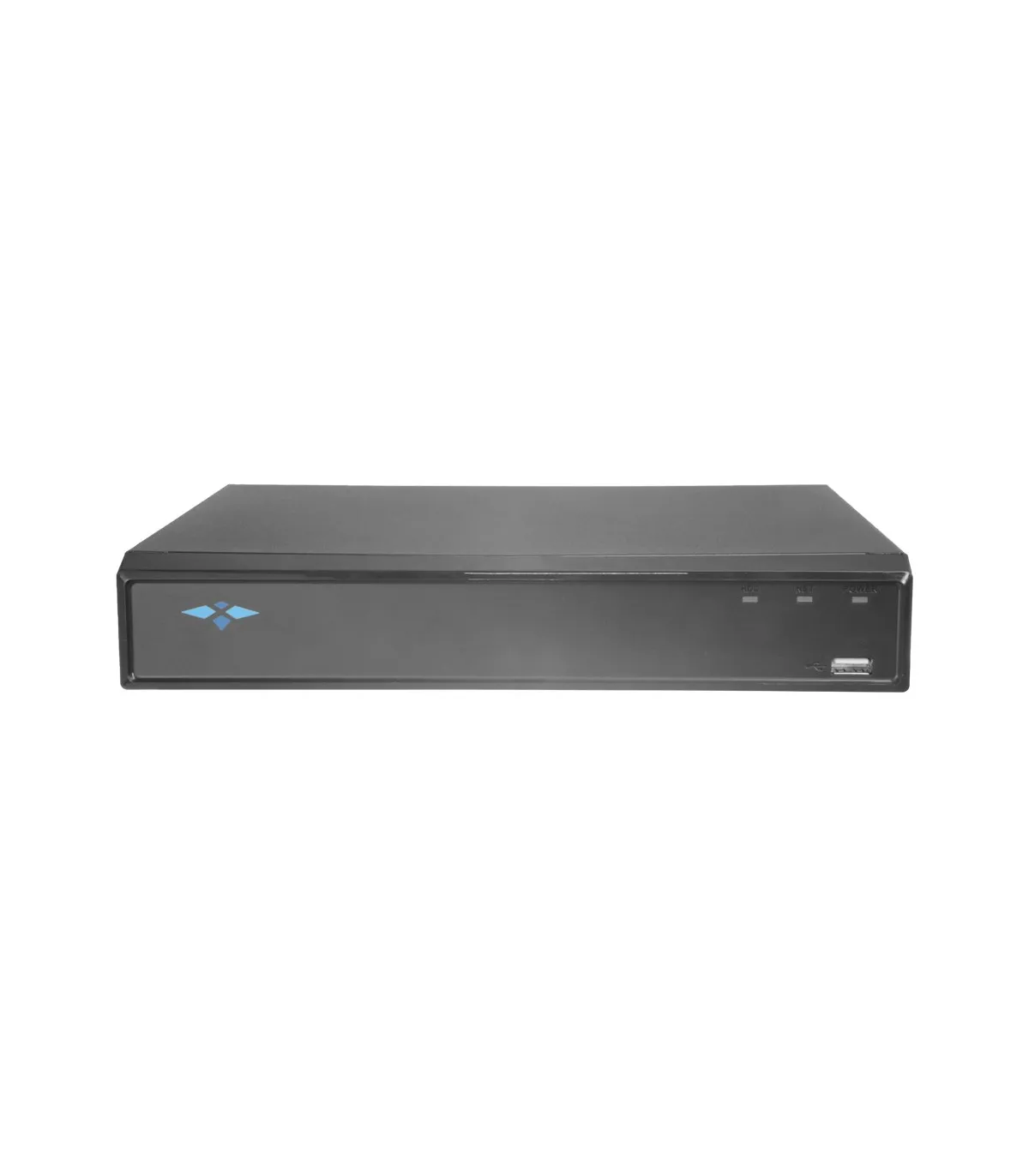

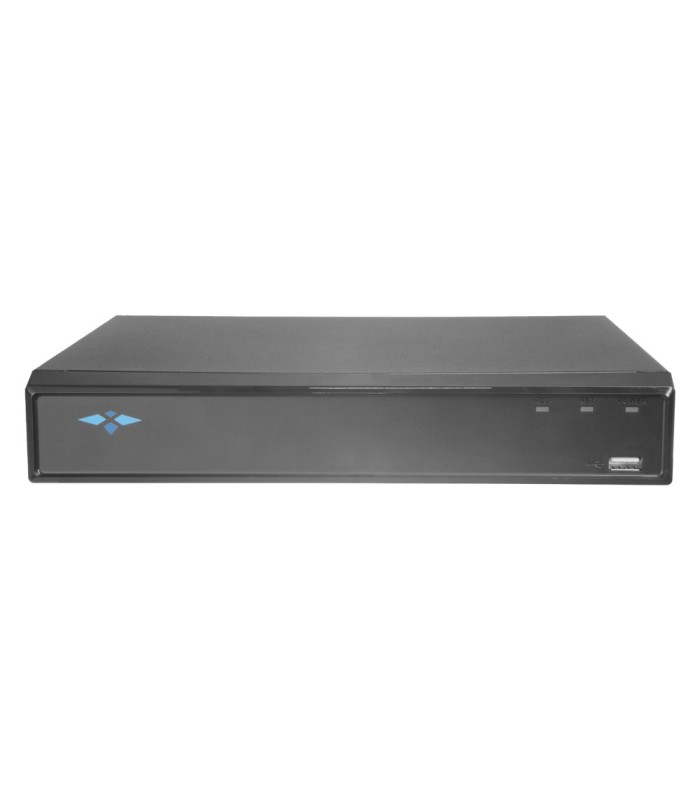

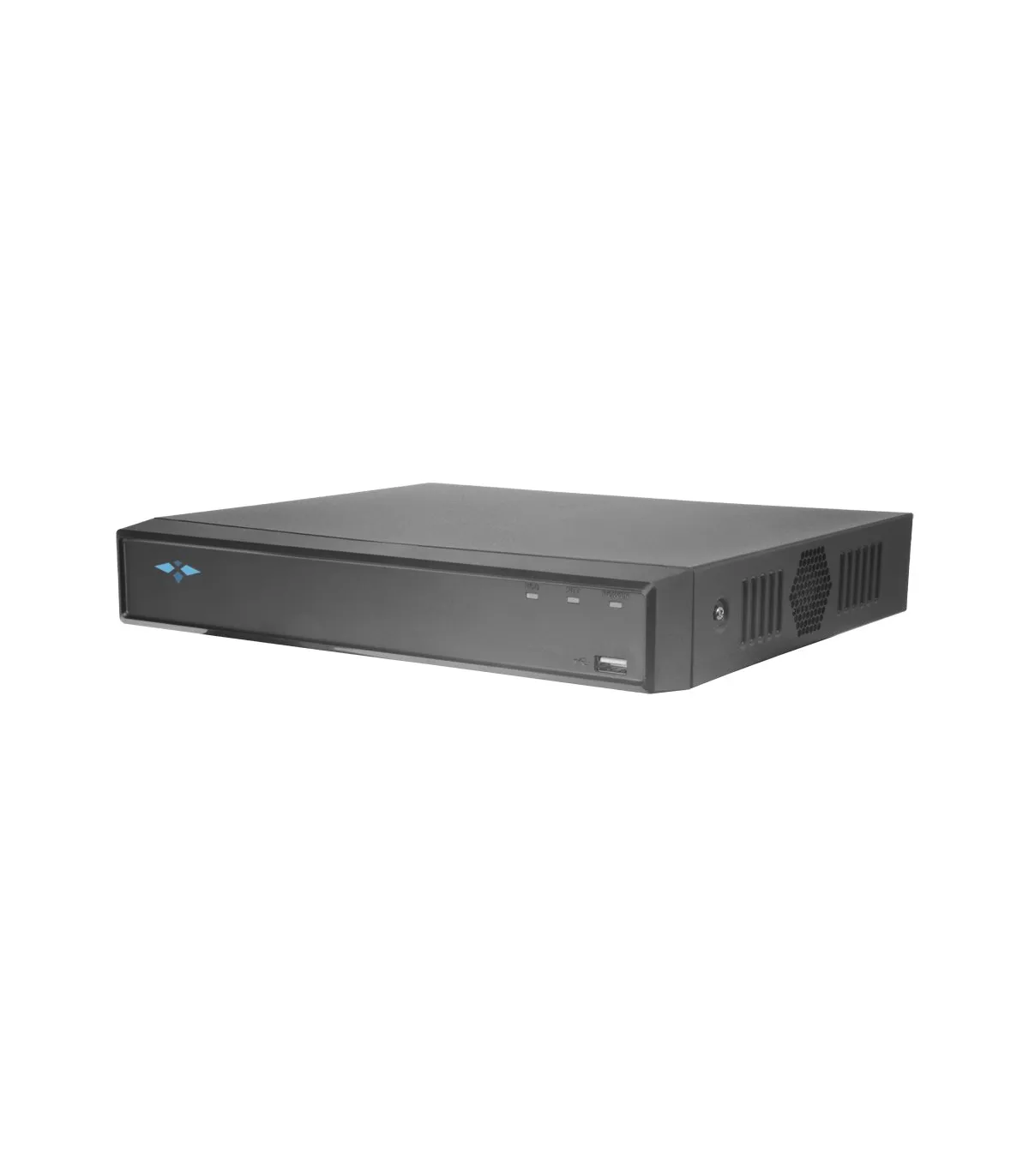

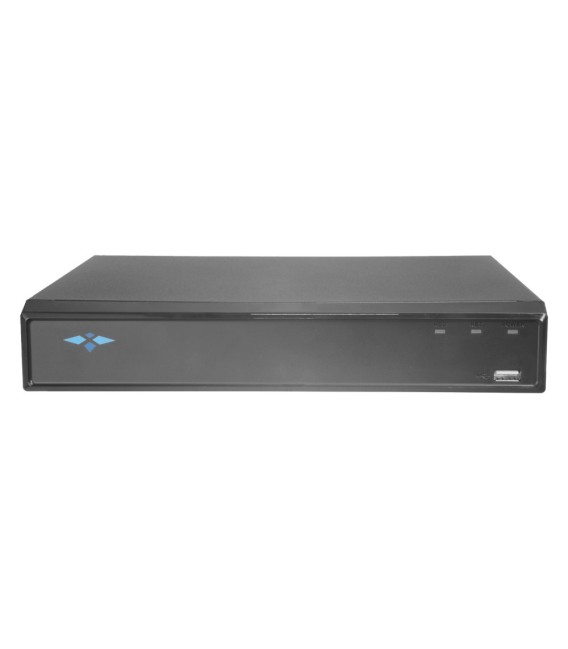

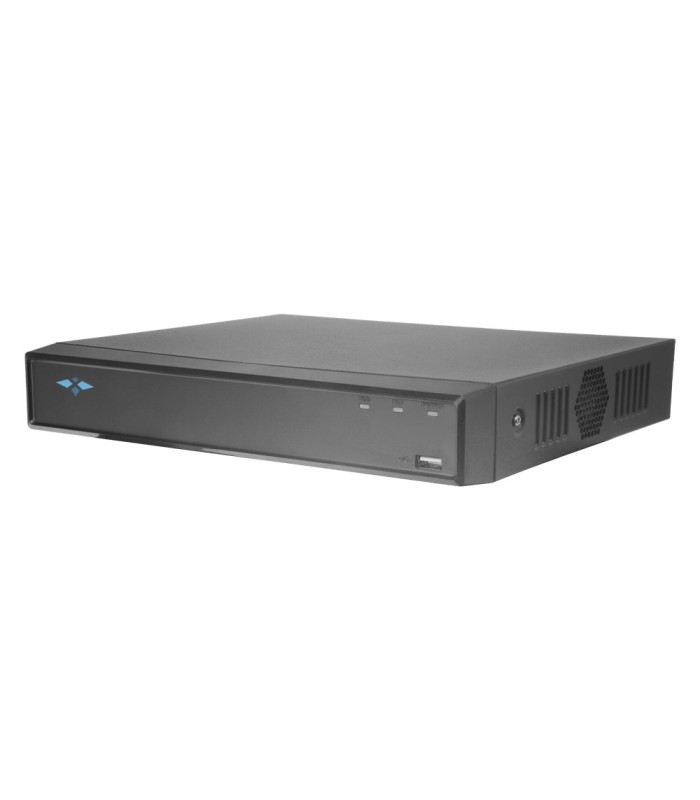

X-Security XS-XVR6216S-2AI 5n1 Video Recorder
Brand: X-SECURITY
- Videorecorder 5n1 X-Security
- 16 CH HDTVI/HDCVI/AHD/CVBS (5Mpx) + 8 IP (6Mpx)
- 2 SATA Ports Up to 16TB
- Audio over coaxial
- 2 CH Facial recognition
5-in-1 Video Recorder X-Security XS-XVR6216S-2AI
- X-Security
- XVR 5-in-1
- 16 CH video HDTVI/HDCVI/AHD/CVBS / 16+8 IP / 16 CH audio
- H.265+/H.265/H.264+/H.264
- Resolution 5M-N (10FPS) or 4M-N/1080p (15FPS) or 1080N/720P (25/30FPS)
- PTZ control (RS485/Coaxial)
- Audio over coaxial
- Full HD HDMI output, VGA, and CVBS
- 2 CH Face Comparison
- Human and vehicle recognition (Available for 16 Ch coaxial video)
- Mouse
- 2 USB Ports
- Space for 2 HDD
- Compact size
Technical Specifications
| Brand | X-Security |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |

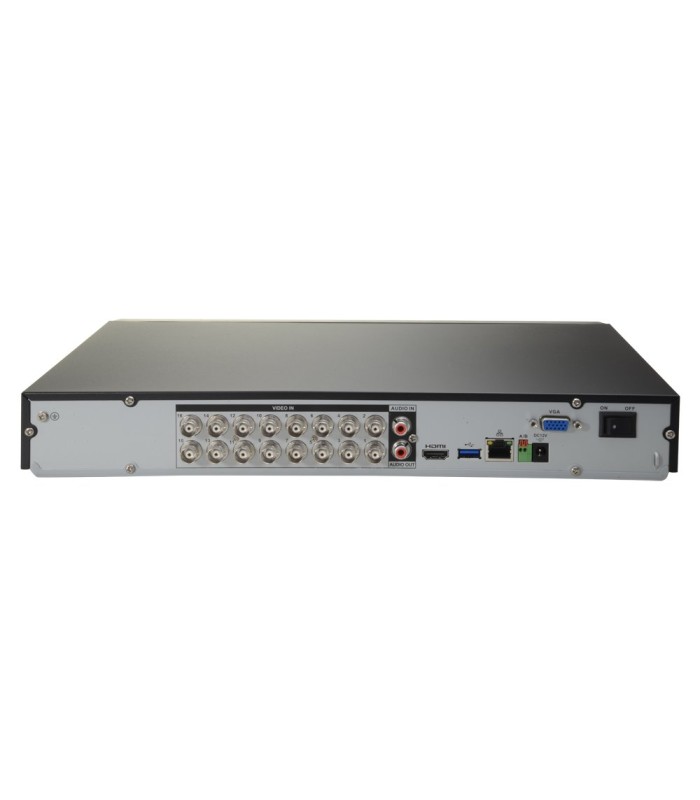

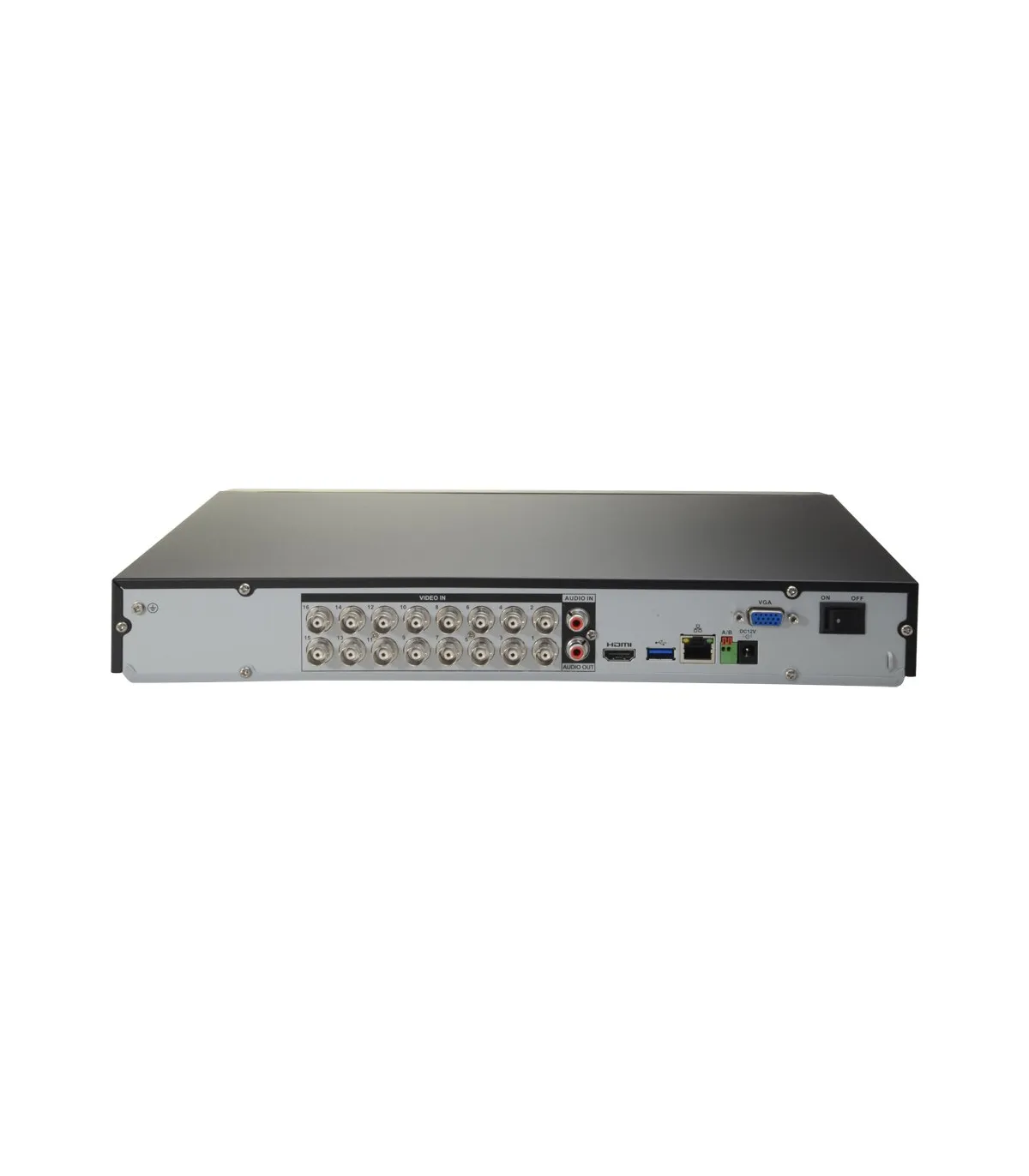

| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Up to 24 IP Channels (6Mpx), replacing all BNC channels |
| Video Outputs | 1 HDMI Full HD, 1 VGA |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 |
| Display Resolution | 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 128 Mbps |
| Recording Resolution | 5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF |
| Coding | All channel: 5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS) |
| Dual-Stream Coding | D1 / CIF (1~15 FPS) |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Audio Inputs | 8 BNC, 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-Way Audio | Reusing audio input/output |
| Alarms | No |
| Video Analysis | IVS: Line Crossing | Intrusion in Area | Abandoned Object | Face Detection IP Mode, Facial Recognition, and IVS cannot be activated simultaneously |
| Facial Recognition | Up to 2 analog face comparison channels live |
| Intelligent Motion Detection | Up to 16 channels capable of classifying targets between humans and vehicles |
| Recording Method | Manual, scheduled, motion detection, alarm |
| Backup | USB/Network |
| Internal Storage | 2 SATA 3.5" HDDs up to 16 TB (not included) |
| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile App, or PSS Software |
| Power | DC 12V / 2A |
| Dimensions / Weight | 47.6 (H) x 260 (W) x 237.4 (D) mm / 1.17 Kg |
Content
- 5-in-1 X-Security Recorder
- Mouse
- 12VDC Power Adapter
