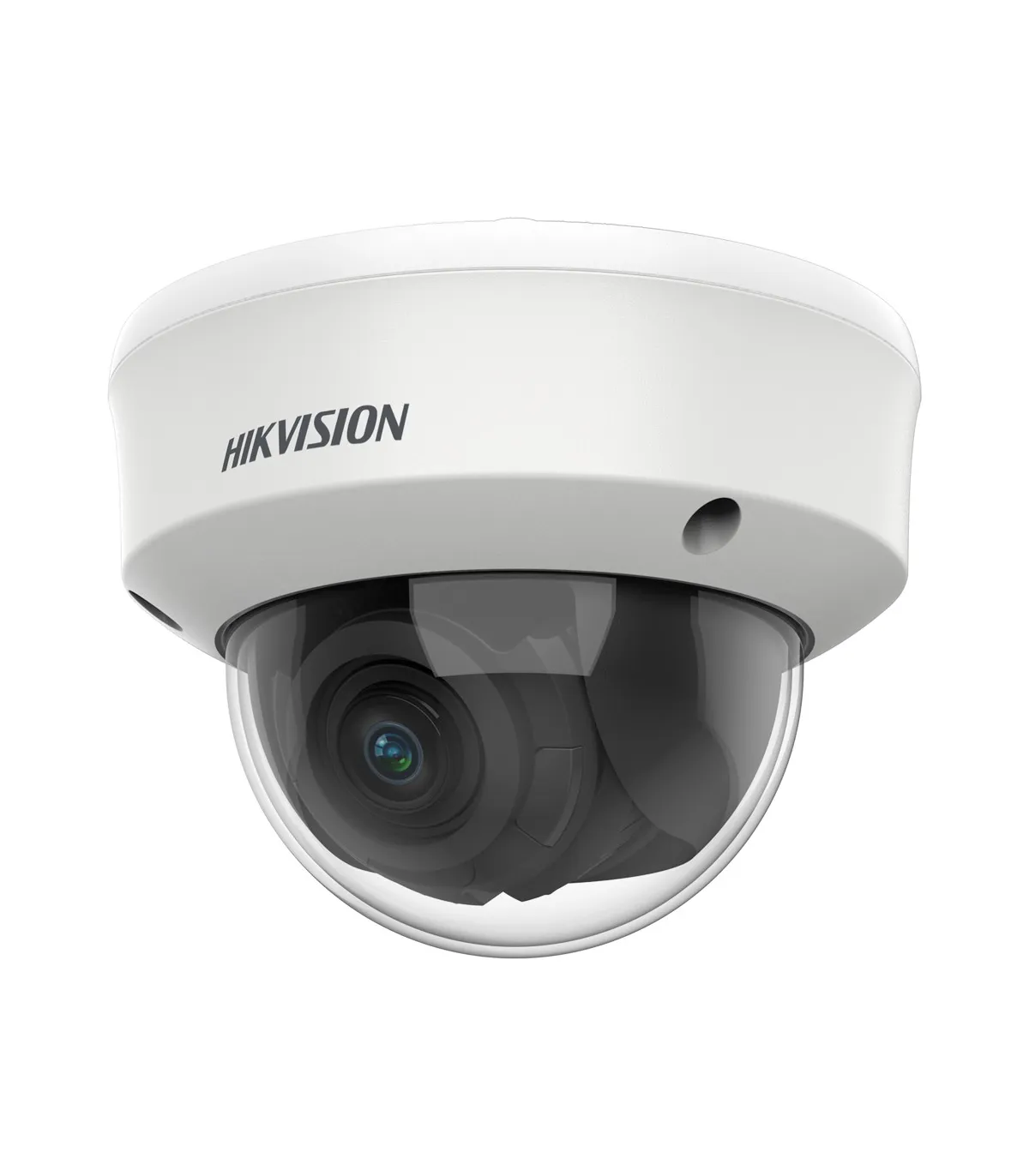

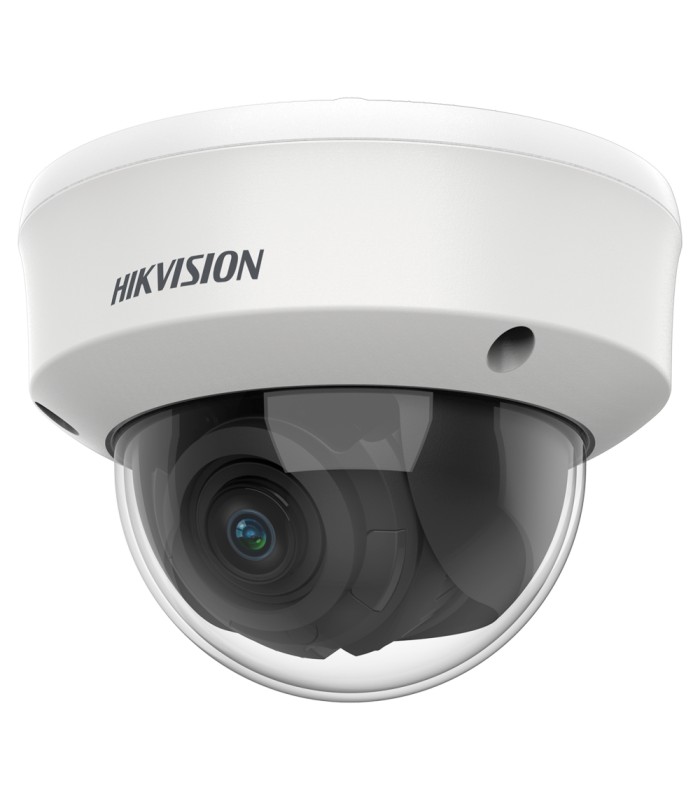

4n1 Dome Camera Core Range Hikvision DS-2CE5AD0T-VPIT3F(2.7-13.5mm)(C)
Brand: HIKVISION CORE
- Hikvision
- 4-in-1 CORE Series Dome Camera
- 1080p Resolution (1920x1080)
- Varifocal Lens 2.7~13.5 mm
- EXIR IR Range 40 m
- IP67 Weatherproof, IK10 Vandal-proof
4n1 Dome Camera Core Range Hikvision DS-2CE5AD0T-VPIT3F(2.7-13.5mm)(C)
- Hikvision
- CORE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- High Performance CMOS
- 1080p (1920x1080)
- 4 in 1 output
- Varifocal lens 2.7~13.5 mm
- 0 Lux
- Smart EXIR IR Range 40 m
- 2D DNR
- IR CUT
- Waterproof IP67
- IK10 vandal-proof
Technical specifications
| Brand | Hikvision |
| Resolution | 1080p (25~30 fps) |
| Lens | 2.7~13.5 mm varifocal lens |
| Angle of view (FOV) | 102.25~32º (H) |
| Lighting minimum | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR range 40 m) |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, 2DNR, AGC, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4 W max. |
| Protection degree | Waterproof IP67, vandal-proof IK10 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 141 mm x 99.9 (H) mm |
| Base diameter | Ø base 141 mm / Ø between screws 117 mm / 3 screws |
| Weight | 800 g |
Contents
- Hikvision 4n1 Dome Camera
- Mounting material
- Instructions for use
English
Español
Português
Français
