| Brand | X-Security |
| Video Format | HD-TVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HD-TVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Up to 24 IP Channels (5M-N), replacing all BNC channels |
| Video Outputs | 1 HDMI 4K, 1 VGA |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 / G.711u |
| Display Resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Total Bandwidth | 128 Mbps |
| Recording Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Main Stream Encoding | 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30fps) |
| Extra Stream Encoding | D1/CIF (1fps–15fps) |
| Simultaneous Functions | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 16 input / 3 relay |
| Audio | 4 in / 1 out RCA |
| Two-way Audio | Using audio input/output |
| Video Analysis | IVS: Line Crossing | Intrusion in Area | Abandoned Object | Face Detection IP Mode, Facial Recognition, and IVS cannot be activated simultaneously |
| Intelligent Functions | P2P Function | POS Function | Alarm/Audio/Coaxial Update (All-over-Coax) |
| SMD + | Intelligent Motion Detection, up to 16 channels capable of classifying targets between humans and vehicles |
| Recording Method | Manual, Scheduled, Motion Detection, Alarm, Stop |
| Backup | USB / Network |
| Internal Storage | 2 SATA HDD up to 10TB each (not included) |

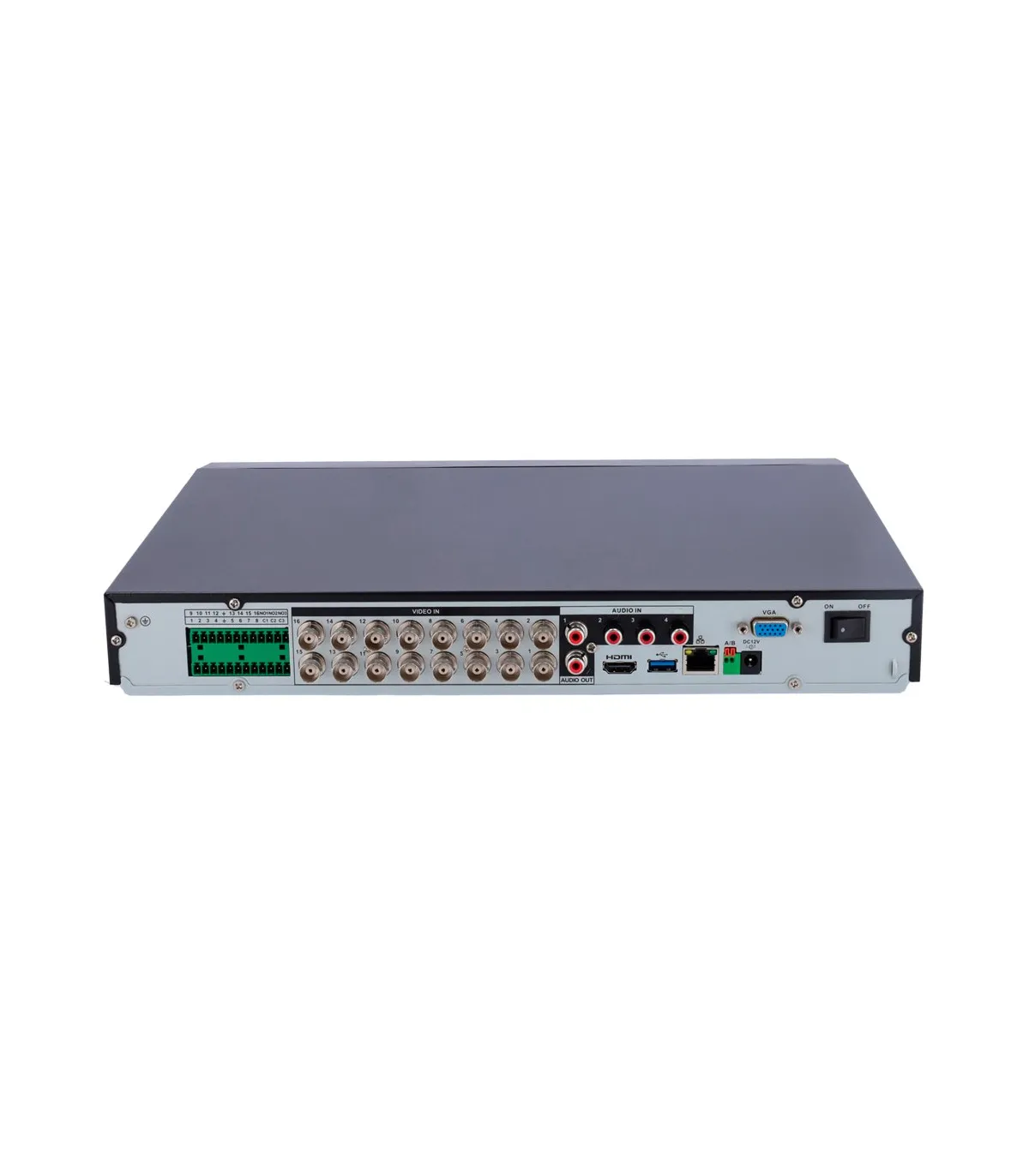

| Communication | RS485 (PTZ) / 2 x USB (Mouse and Backup) / RJ45 10/100/1000 (Ethernet) |
| Remote Access | Browser, Mobile App, or PSS Software |
| Power Supply | DC 12V / 4A |
| Dimensions / Weight | 288 (H) x 375 (W) x 53 (D) mm / 1.8 Kg |
Data sheet
