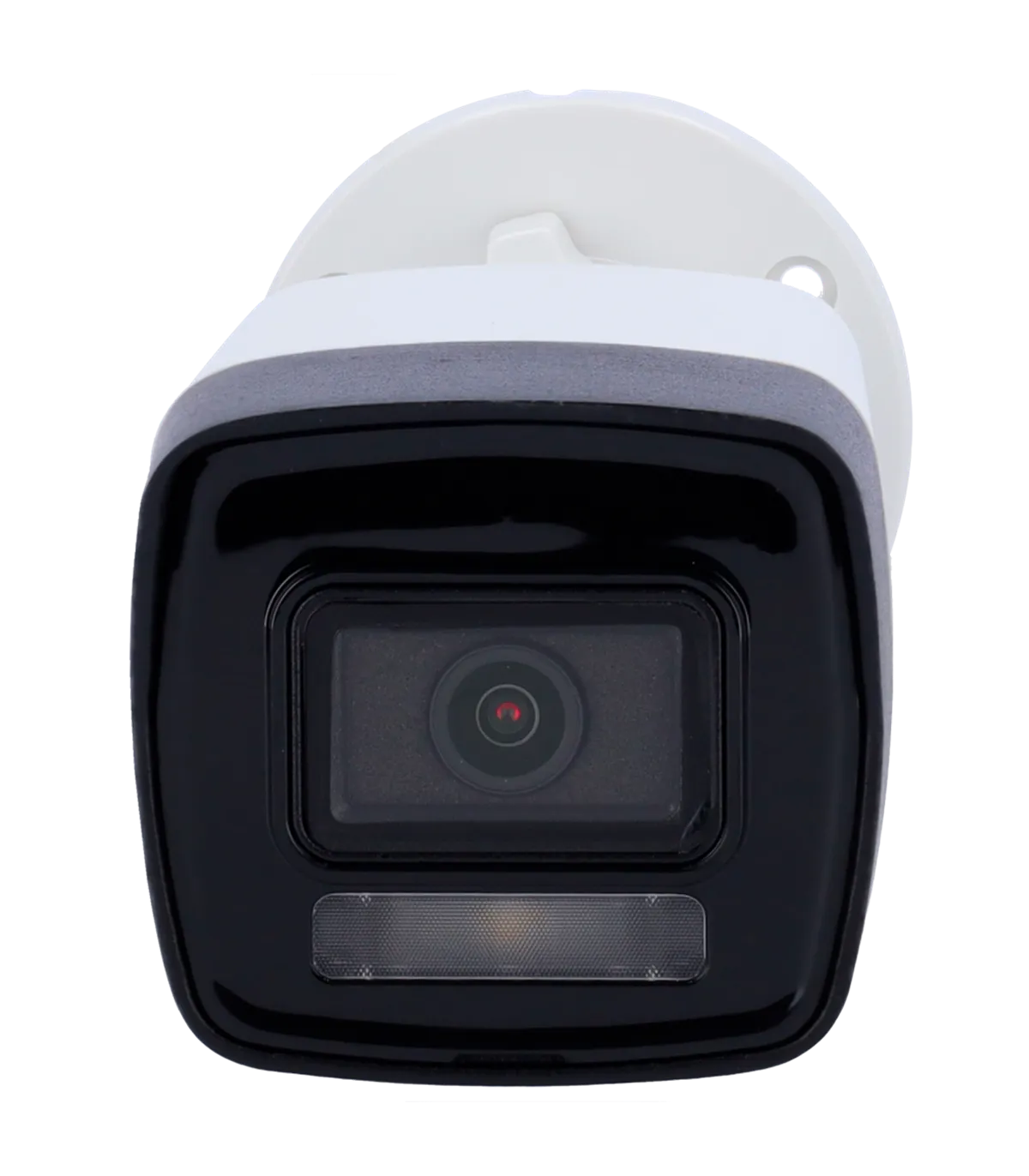

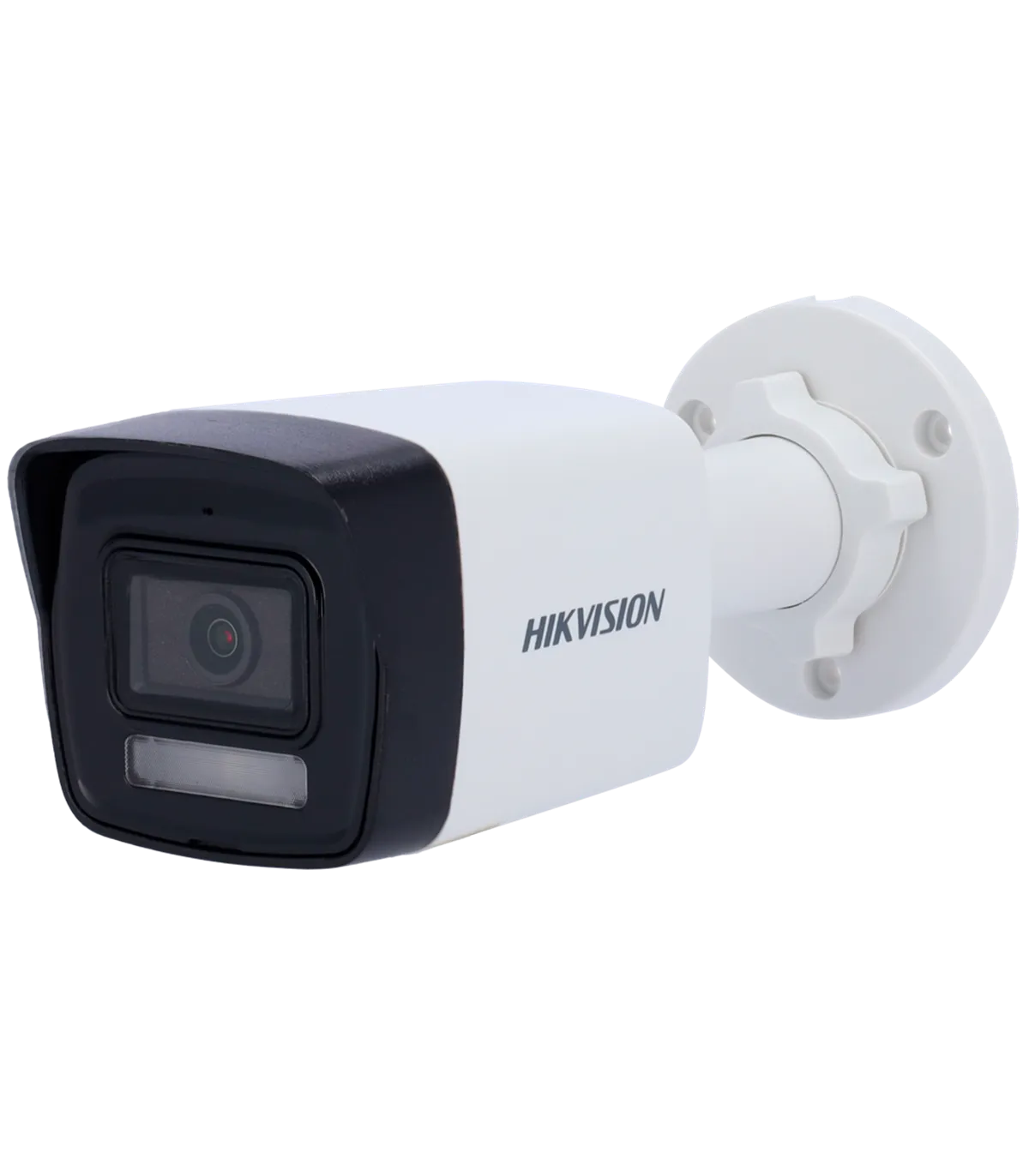

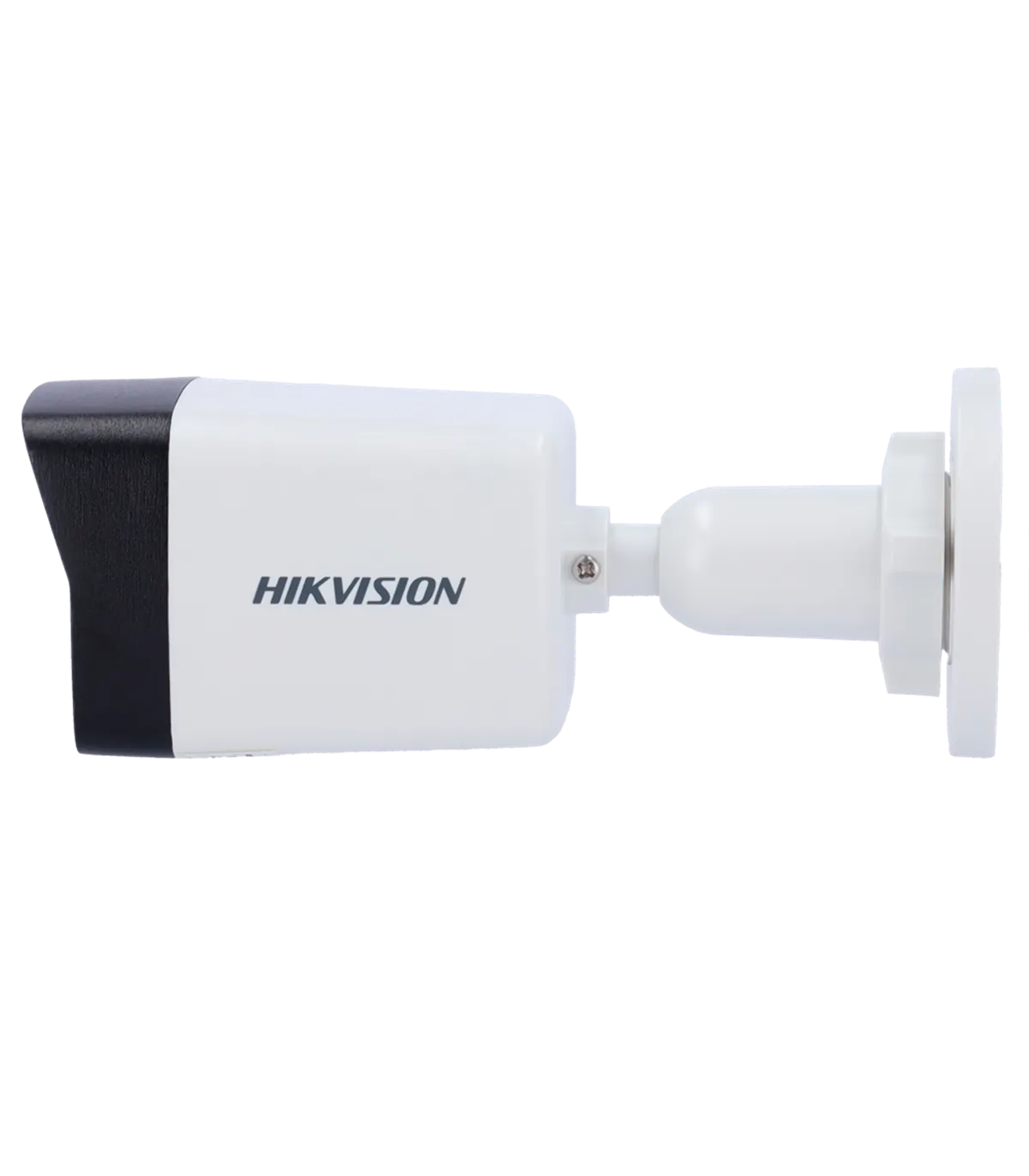

The DS-2CD1043G2-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 4 Megapixel resolution, this camera captures clear and detailed images, making it ideal for both residential and commercial applications. The device features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Its hybrid lighting capabilities, including IR and white light, enhance visibility in low-light conditions, making it a versatile choice for security needs.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 54°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 400 mA / 5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 270 g |
The DS-2CD1043G2-LIU(2.8mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and deter theft. With its high-resolution imaging and motion detection capabilities, the camera can alert store managers to suspicious activities in real-time. Additionally, the hybrid lighting feature ensures that the camera captures clear images even in low-light conditions, enhancing security during nighttime hours. The integration with remote monitoring applications allows users to access live feeds from their smartphones, providing peace of mind when away from the premises. Furthermore, its IP67 waterproof rating makes it suitable for outdoor installations, ensuring durability against harsh weather conditions. Overall, the DS-2CD1043G2-LIU(2.8mm) offers a comprehensive solution for effective surveillance.
