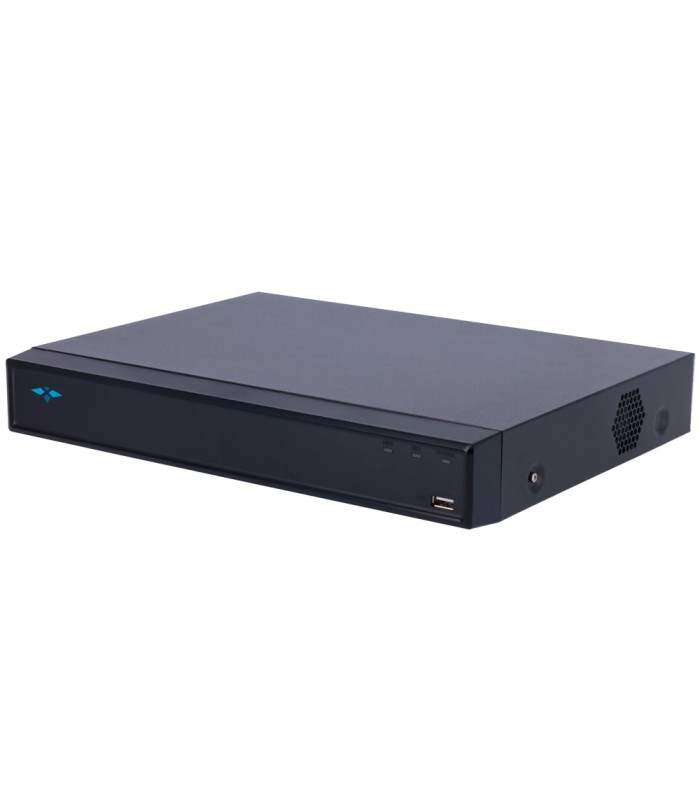

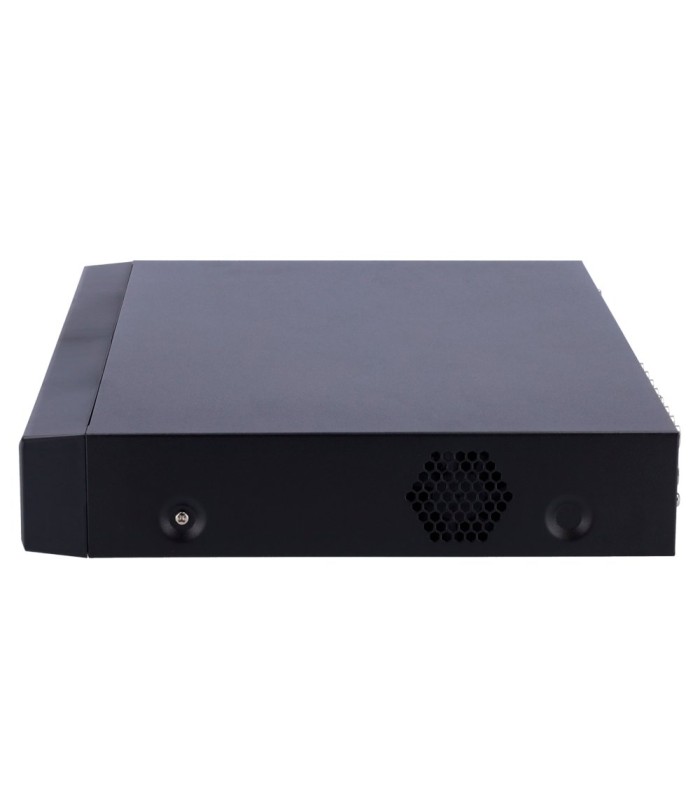

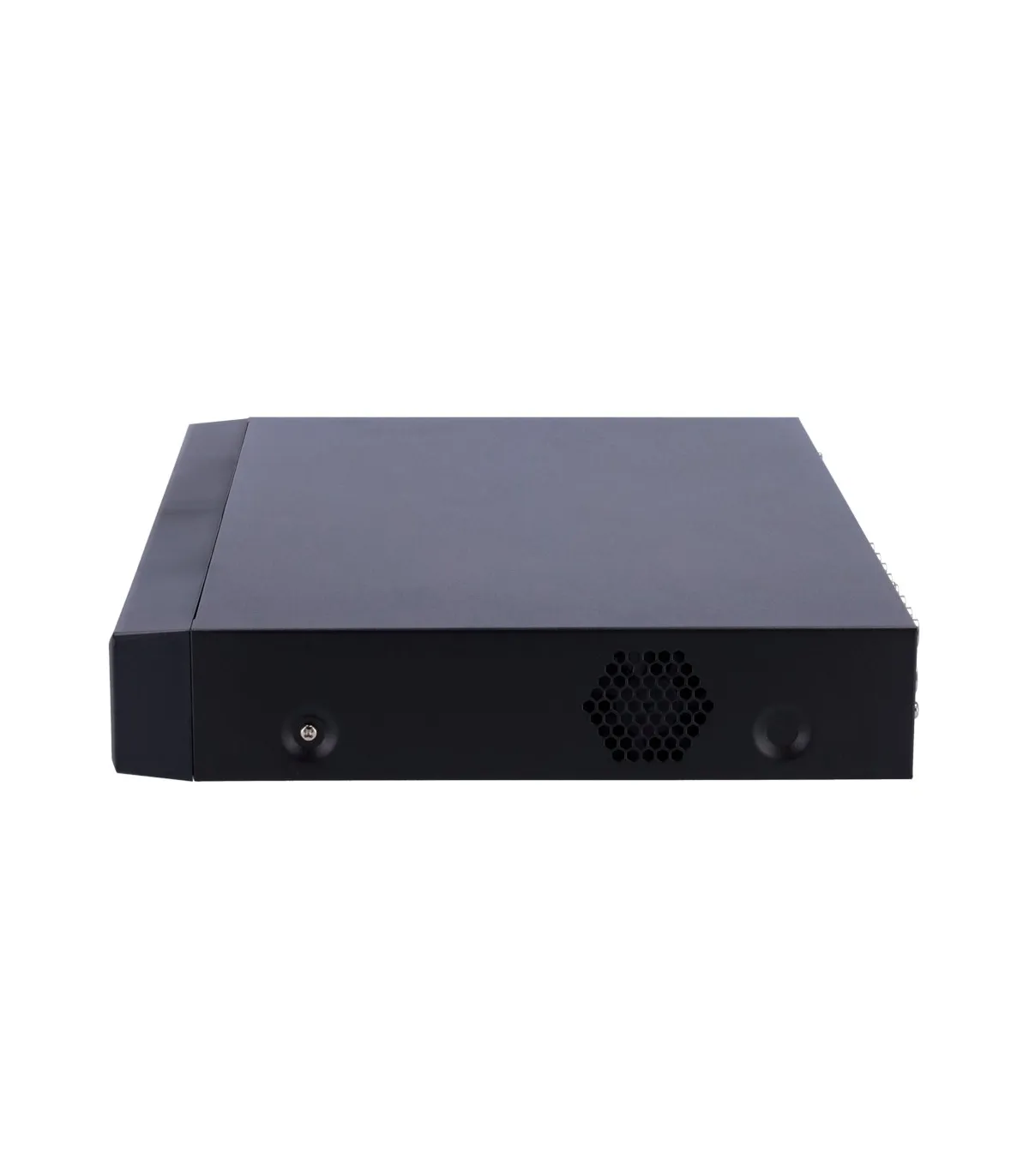

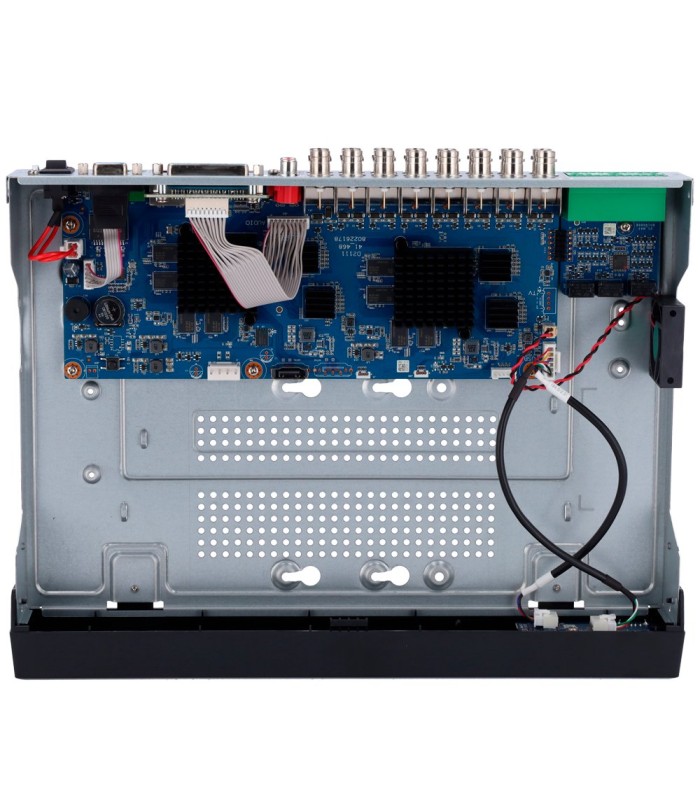

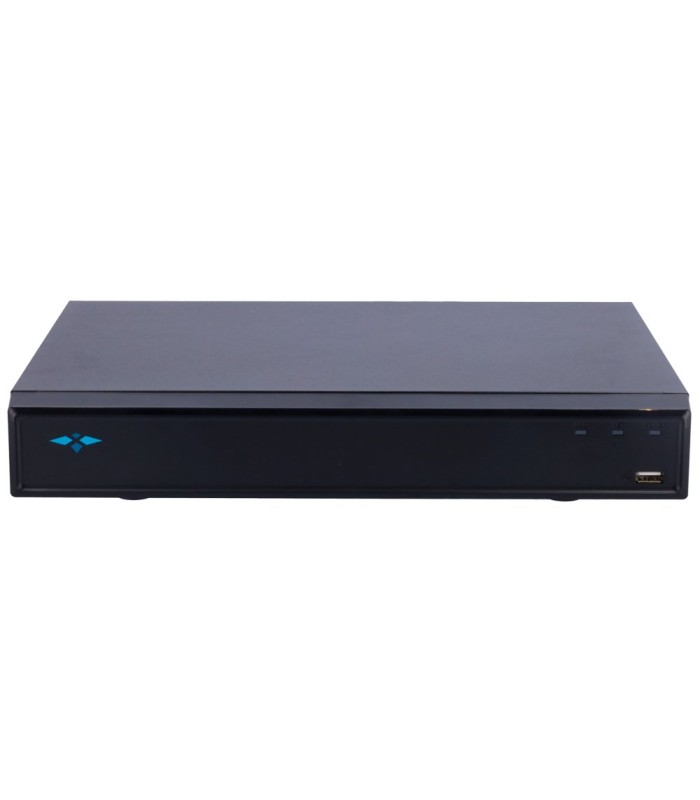

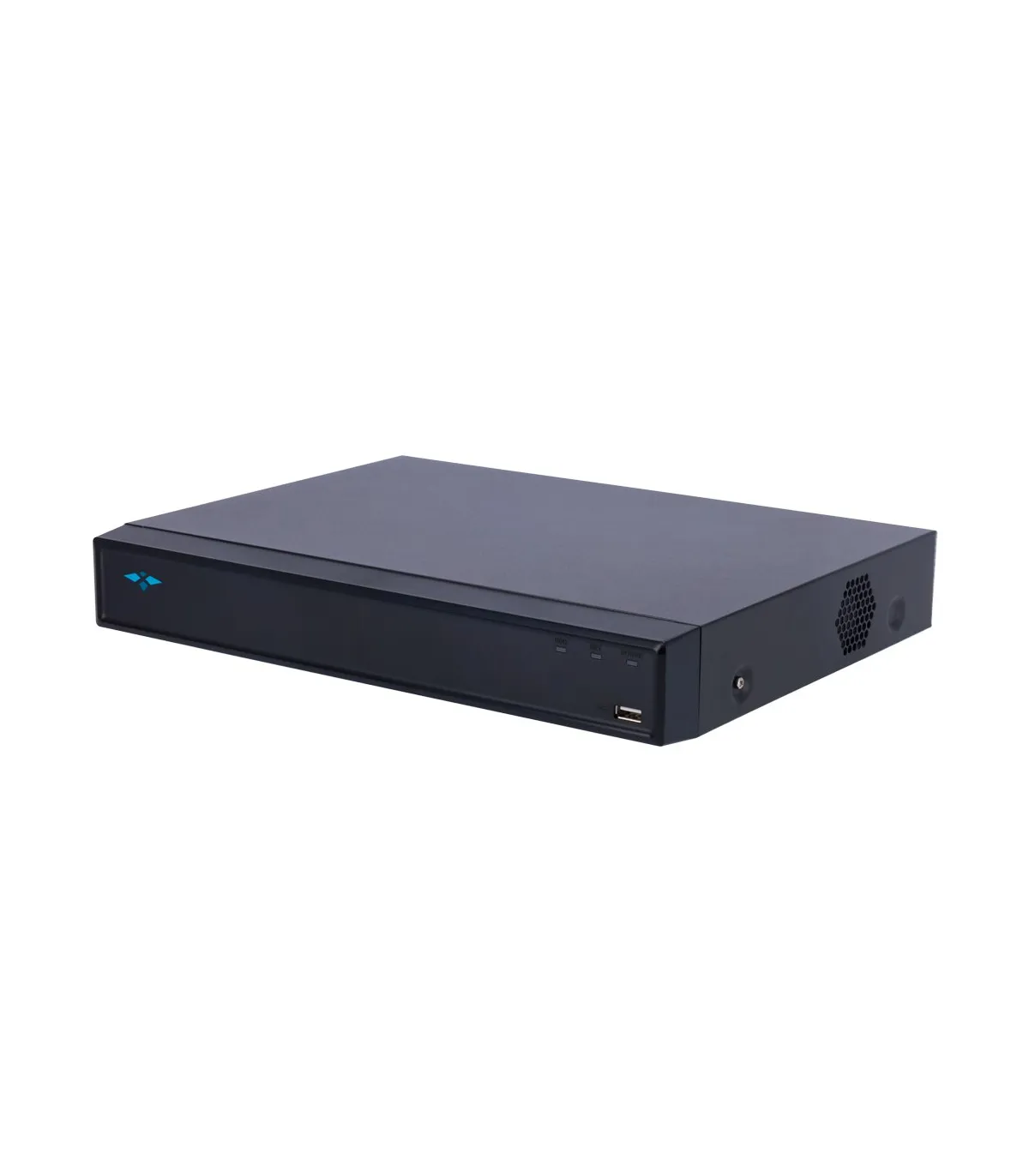

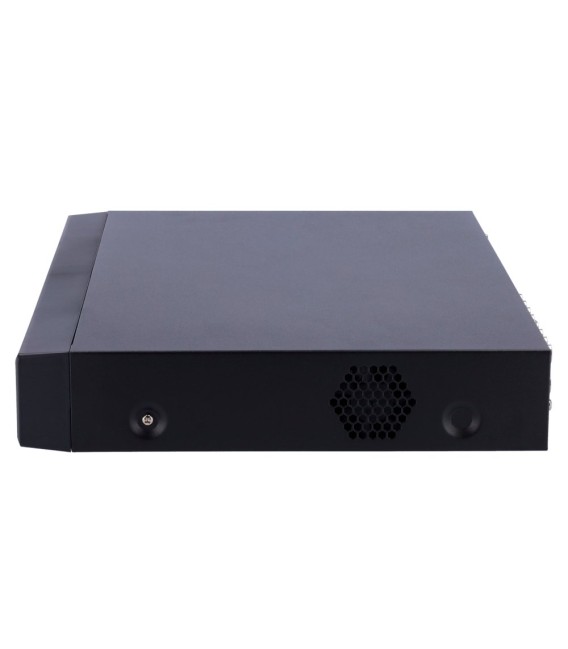

X-Security XS-XVR6116AS-4KL-2AI 5n1 Video Recorder
Brand: X-SECURITY
- Videorecorder 5n1 X-Security
- 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8Mpx)
- Alarms | Audio over coaxial
- 4K Resolution (7FPS)
- 2 CH Facial recognition
5-in-1 Video Recorder X-Security XS-XVR6116AS-4KL-2AI
- X-Security
- XVR 5-in-1
- 16 CH video HDTVI/HDCVI/AHD/CVBS / 16+16 IP / 16 CH audio
- H.265+/H.265/H.264+/H.264
- 4K Resolution (7FPS) or 6Mpx (10FPS) or 5Mpx (12FPS) or 4K-N, 4MP/3MP (15FPS) or 4M-N/1080P/720P/960H/D1/CIF (25/30FPS)
- PTZ Control (RS485/Coaxial)
- Audio over coaxial
- Alarms
- HDMI Full HD, VGA, and CVBS output
- 2 CH Face Comparison
- Human and Vehicle Recognition (Available for 8 Ch of coaxial video)
- Mouse
- 2 USB Ports
- Space for 1 HDD
Technical Specifications
| Brand | X-Security |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |

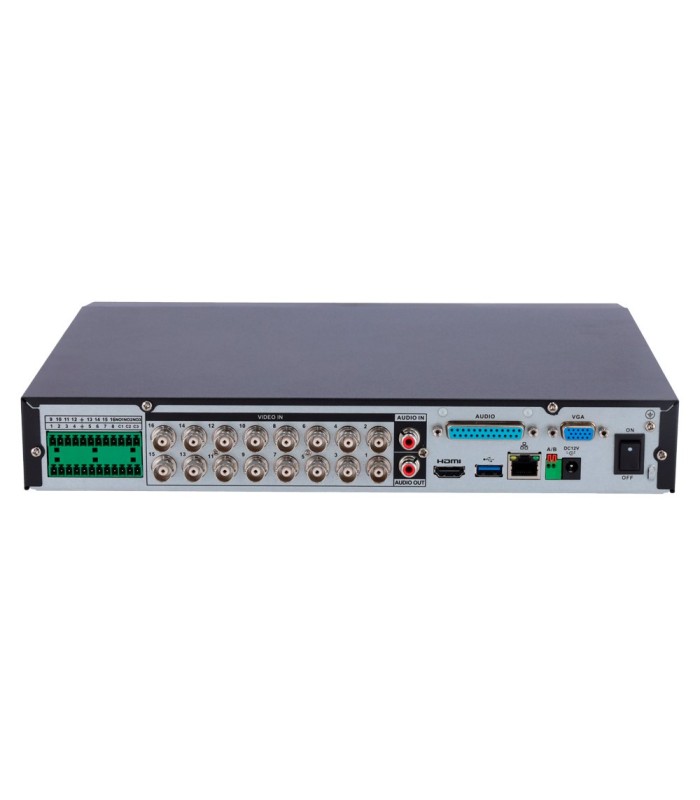

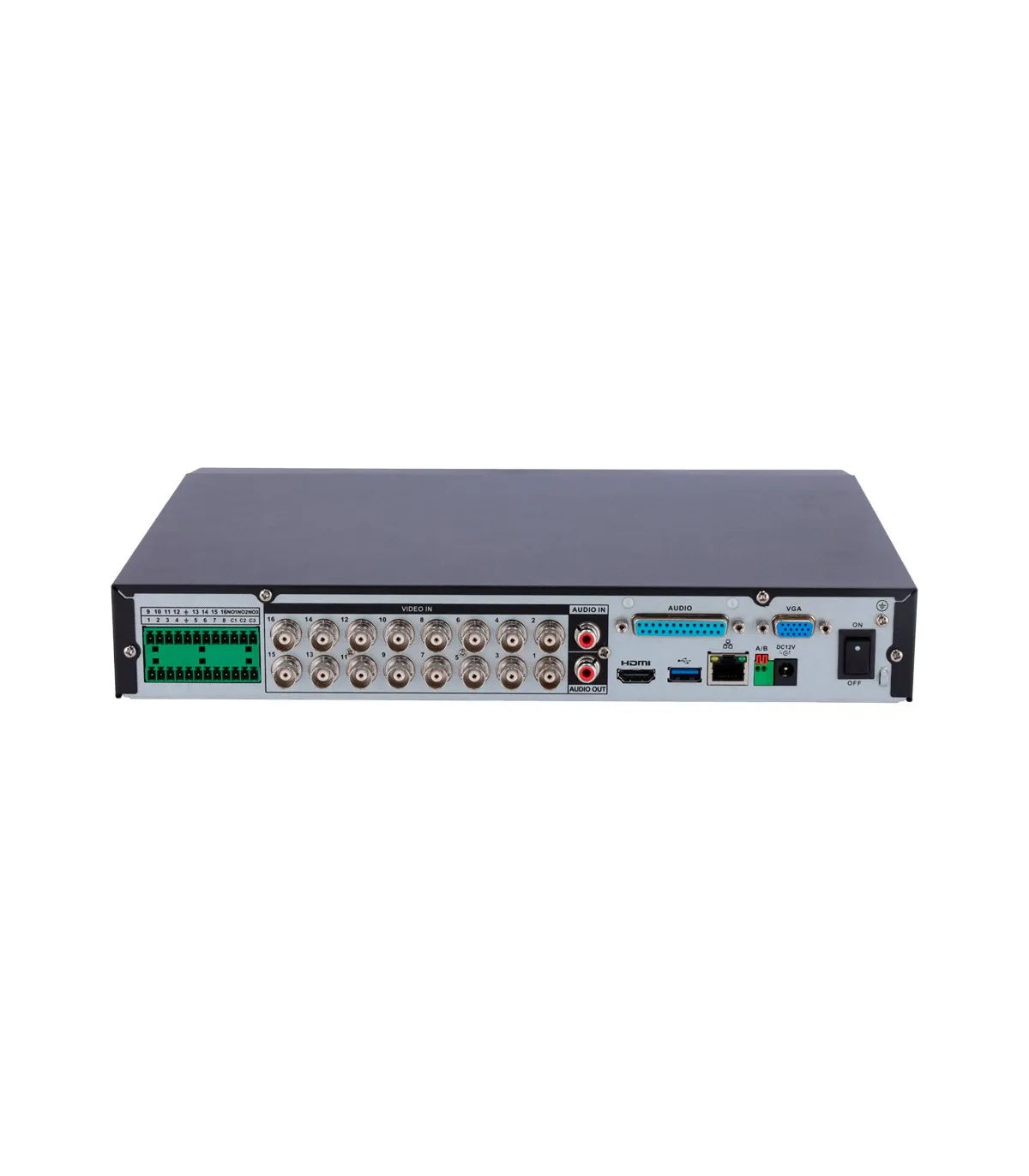

| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Up to 32 IP Channels (8Mpx), replacing all BNC channels |
| Video Outputs | 1 HDMI Full HD, 1 VGA |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 |
| Display Resolution | HDMI: 4K, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Total Bandwidth | 128 Mbps |
| Encoding | All channel: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps) |
| Dual-Stream Encoding | 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps) |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Audio Inputs | 16 BNC, 8 RCA Channels |
| Audio Outputs | 1 RCA Channel |
| Two-Way Audio | Using audio input/output |
| Alarms | 8 input / 3 relay |
| Video Analysis | IVS: Line Crossing | Intrusion in Area | Abandoned Object | Face Detection IP Mode, Facial Recognition, and IVS cannot be activated simultaneously |
| Facial Recognition | Up to 2 live analog face comparison channels |
| Intelligent Motion Detection | Up to 8 channels capable of classifying targets between humans and vehicles |
| Recording Method | Manual, Scheduled, Motion Detection, Alarm |
| Backup | USB/Network |
| Internal Storage | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | RS485 (PTZ) /2 x USB (Mouse and Backup) / RJ45 10/100 (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile App, or PSS Software |
| Power | DC 12V / 2A |
| Dimensions / Weight | 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 Kg |
Content
- 5-in-1 X-Security Recorder
- Mouse
- 12VDC Power Adapter
